Information to get more about Relay
2008-08-14
Information to get more about Relay Relay is an electromagnetic device for remote or automatic control that is actuated by variation in conditions of an electric circuit and that operates in turn other devices (as switches) in the same or a different circuit

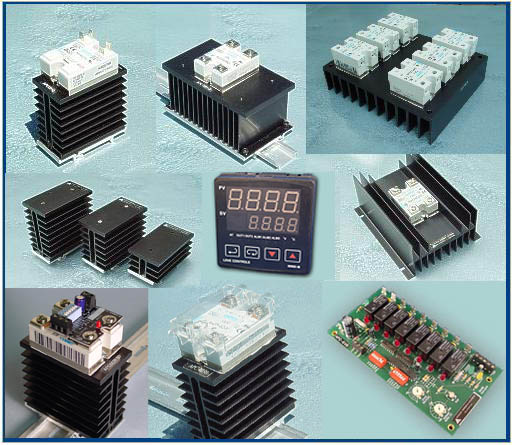

A relay consists basically of an electromagnet with a soft iron bar, called an armature, held close to it. A movable contact is connected to the armature in such a way that the contact is held in its normal position by a spring. When the electromagnet is energized, it exerts a force on the armature that overcomes the pull of the spring and moves the contact so as to either complete or break a circuit. When the electromagnet is de-energized, the contact returns to its original position. Variations on this mechanism are possible: some relays have multiple contacts; some are encapsulated; some have built-in circuits that delay contact closure after actuation; some, as in early telephone circuits, advance through a series of positions step by step as they are energized and de-energized. Relays have a wide variety of applications in different fields, such as the followings: 1. To control a high-voltage circuit with a low-voltage signal, as in some types of modems or audio amplifiers, 2. To control a high-current circuit with a low-current signal, as in the starter solenoid of an automobile, 3. To detect and isolate faults on transmission and distribution lines by opening and closing circuit breakers (protection relays), 4. To isolate the controlling circuit from the controlled circuit when the two are at different potentials, for example when controlling a mains-powered device from a low-voltage switch. The latter is often applied to control office lighting as the low voltage wires are easily installed in partitions, which may be often moved as needs change. They may also be controlled by room occupancy detectors in an effort to conserve energy, 5. To perform logic functions. For example, the Boolean AND function is realized by connecting NO relay contacts in series, the OR function by connecting NO contacts in parallel. The change-over or Form C contacts perform the XOR (exclusive or) function. Similar functions for NAND and NOR are accomplished using NC contacts. The Ladder programming language is often used for designing relay logic networks. (1)ˇ˘Early computing. Before vacuum tubes and transistors, relays were used as logical elements in digital computers. See ARRA (computer), Harvard Mark II, Zeus Z2, and Zeus Z3. (2)ˇ˘Safety-critical logic. Because relays are much more resistant than semiconductors to nuclear radiation, they are widely used in safety-critical logic, such as the control panels of radioactive waste-handling machinery. 6. To perform time delay functions. Relays can be modified to delay opening or delay closing a set of contacts. A very shorts (a fraction of a second) delay would use a copper disk between the armature and moving blade assembly. Current flowing in the disk maintains magnetic field for a short time, lengthening release time. For a slightly longer (up to a minute) delay, a dashpot is used. A dashpot is a piston filled with fluid that is allowed to escape slowly. The time period can be varied by increasing or decreasing the flow rate. For longer time periods, a mechanical clockwork timer is installed.

With the relay in a wide range of applications of different fields, we will inevitably encounter some problems when buying relays, then what on earth we should pay attention to? Now below let us talk about some features that we should consider when choosing it. Physical size and pin arrangement If you are choosing a relay for an existing PCB you will need to ensure that its dimensions and pin arrangement are suitable. You should find this information in the supplier's catalogue. Coil voltage The relay's coil voltage rating and resistance must suit the circuit powering the relay coil. Many relays have a coil rated for a 12V supply but 5V and 24V relays are also readily available. Some relays operate perfectly well with a supply voltage which is a little lower than their rated value. Coil resistance The circuit must be able to supply the current required by the relay coil. You can use Ohm's law to calculate the current For example: A 12V supply relay with a coil resistance of 400 passes a current of 30mA. This is OK for a 555 timer IC (maximum output current 200mA), but it is too much for most ICs and they will require a transistor to amplify the current. Switch ratings (voltage and current) The relay's switch contacts must be suitable for the circuit they are to control. You will need to check the voltage and current ratings. Note that the voltage rating is usually higher for AC, for example: "5A at 24V DC or 125V AC". Switch contact arrangement (SPDT, DPDT etc) Most relays are SPDT or DPDT which are often described as "single pole changeover" (SPCO) or "double pole changeover" (DPCO).
