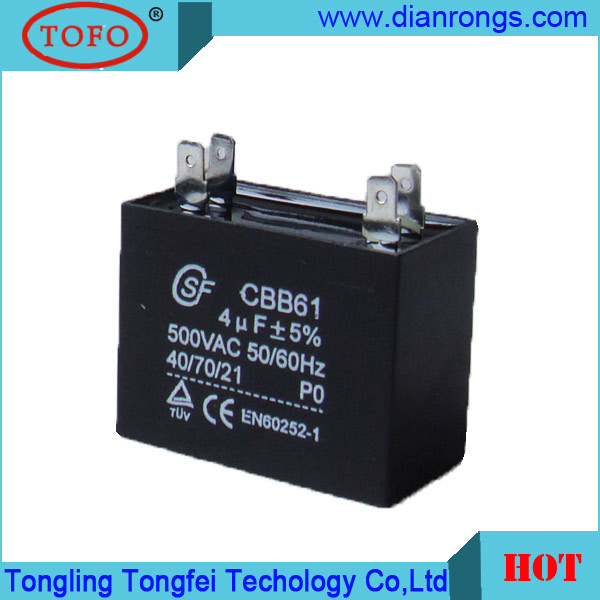

AC Ceiling Fan Motor Capacitor of Cbb61 450V 1.5UF
| Price: |
US $ 0.09-1.1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
CBB61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Cbb61 Capacitor |
| Rated Voltage: |
200~500VAC |
| Operating Temperature: |
40/70/21 or 40/85/21 |
| Capacitance Tolerance: |
±5% |
| Class Of Operation: |
Class B, Class C |
| Class Of Safety Protection: |
P0/P2 |
| MOQ: |
1 PCS |
| Shape: |
Squareness |
| Capacitor Case: |
Plastic |
| Lead Out: |
Pin or Wire |
| Type: |
Polypropylene Capacitor |
| Application: |
Water Pump |
| Package Type: |
Surface Mount |
| Capacitance: |
1~35UF |
| Manufacturing Material: |
Plastic Case and Capacitor Mpp Film |
| Electrolyte: |
Film Capacitor |
| Usage: |
Fan, AC Motor, Air Conditioner |
| Filter: |
Film Capacitor |
Product Description
7*24 Hours Sincerely Service for You&Basic Info.| Basic specifications |
| Model No. | CBB61 Capacitor |
| Type | Polypropylene Fan Capacitor |
| Capacitance | 1~35uF |
| Structure | Single Film Capacitor |
| Manufacturing Material | Polypropylene |
| Electrolyte | Polypropylene Film |
| Rated Voltage | 200~500VAC |
| Operating Temperature | 40/70/21 or 40/85/21 |
| Capacitance Tolerance | ±5% |
| Class of Operation | Class B,Class C |
| Class of Safety Protection | P0/P2 |
| Package Type | Export Carton for CBB61 Fan Capacitor |
| Production Capacity | 500,000pcs/Month |
| MOQ | 1 pcs |
| Size | Available on Request (Customized Fan Capacitor) |
§Technical Specifications:| Reference standards | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety protection | P0/P2 |
| Voltage range | 200~500VAC |
| Capacitance range | 1~35μF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20×10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ. μF(100Hz,20ºC,1min) |
§Dimensions(mm):| Specifications | 450VAC | 250VAC |
| 1μF | 37×13×23 | 37×13×23 |
| 1.2μF | 37×13×23 | 37×13×23 |
| 1.5μF | 37×14×25 | 37×13×23 |
| 2μF | 37×16×28 | 37×13×23 |
| 2.5μF | 37×18×28 | 37×14×25 |
| 3μF | 47×18×29 | 37×14×25 |
| 3.5μF | 47×18×34 | 37×16×28 |
| 4μF | 47×18×34 | 37×16×28 |
| 4.5μF | 47×22×34 | 37×16×28 |
| 5μF | 47×22×34 | 37×18×28 |
| 5.5μF | 47×22×34 | 37×18×28 |
| 6μF | 47×22×34 | 47×18×29 |
| 6.5μF | 48×26×38 | 47×18×29 |
| 7μF | 48×26×38 | 47×18×29 |
| 8μF | 48×26×38 | 47×18×34 |
| 10μF | 58×26×44 | 47×22×34 |
| 12μF | 58×26×44 | 47×22×34 |
| 15μF | 58×26×44 | 47×22×34 |
| 16μF | 58×26×44 | 47×26×38 |
| 20μF | 58×35×49 | 47×26×38 |
| 25μF | 58×35×49 | 47×26×38 |
| 30μF | Negotiable | 58×26×44 |
| 35μF | Negotiable | 58×26×44 |
Note:Other specifications,size and terminal outside table are negotiable&Product DescriptionThe CBB61 fan capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.it is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size, reliable performance and long endurance.§Application:The CBB61 fan capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans,electric fans and exhaust fans etc.at comparatively low rated power.

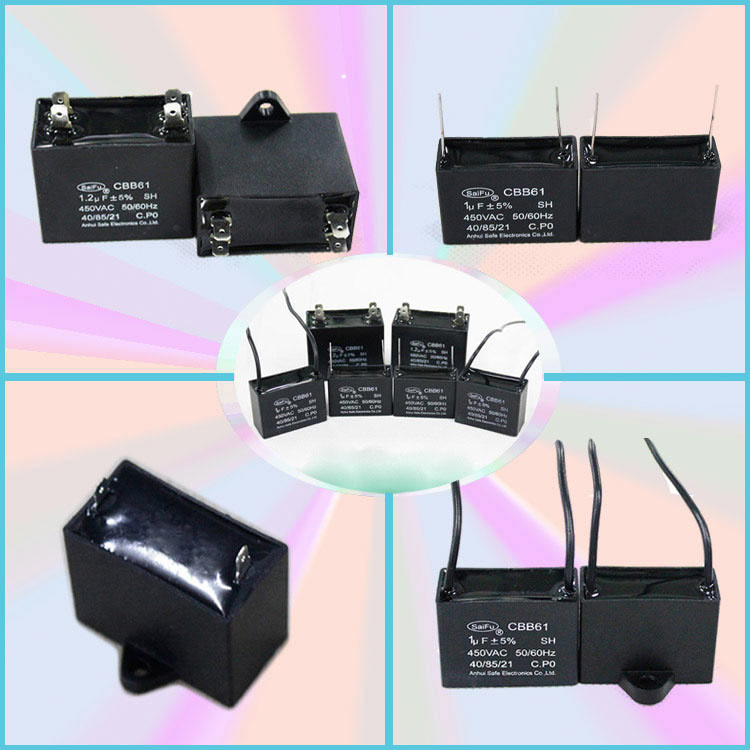

§Appearance:Shape: SquarenessCapacitor Case: PlasticLead out: Pin or WireInstallation Type: Through HoleApplication: CBB61 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile. &Additional Info.Company Name: Tongling Tongfei Technology Co.,LtdTrademark: TOFOStandard: GB/T 3667.1 or IEC 60252-1Origin: China(Mainland)Packing: Export Stand Carton Packing for CapacitorsDelivery Detail: 7~15 days after paymentPort: Shanghai or NingboExport Market: Global& Our advantages* LeadingTechnology:Have a number of invention patents* Stable Quality:The company has the world's most advanced production equipment, and implement ISO9001 standard management.* Reasonable Price:Executive "Industrial products 10% Profit in the first"*Cordial Service:7*24 hours online, prompt reply and timely delivery& Welcome to Contact UsCompany Name:Tongling Tongfei Technology Co.,Ltd.Add:No.695 North Taishan Road,Tongling,Anhui,China Tel:0086 0562 2821018Fax:0086 0562 2821558Mobile Phone:13305620368 (Helen Hu)The Product Price Is Negotiable!!!For more information,you can contact and view our website: www.dianrongs.com
Tongling Tongfei Technolygy Co., Ltd. Is a development, design, manufacture and market integrated professional capacitor manufacture, the company's main products: Metallized film for capacitor use, CBB series AC motor capacitor, SFPEC series power electronics capacitors, capacitors accessories, blank inkjet printable PVC card and compatible PVC card tray.
The company registered capital of 10 million, covers a total factory area of more than 6000 square meters. Existing staff of 76 people, and has set up a management platform of the management layer, production department, technical department, domestic trade department, foreign trade department, financial department and R& D center according to the standard system.

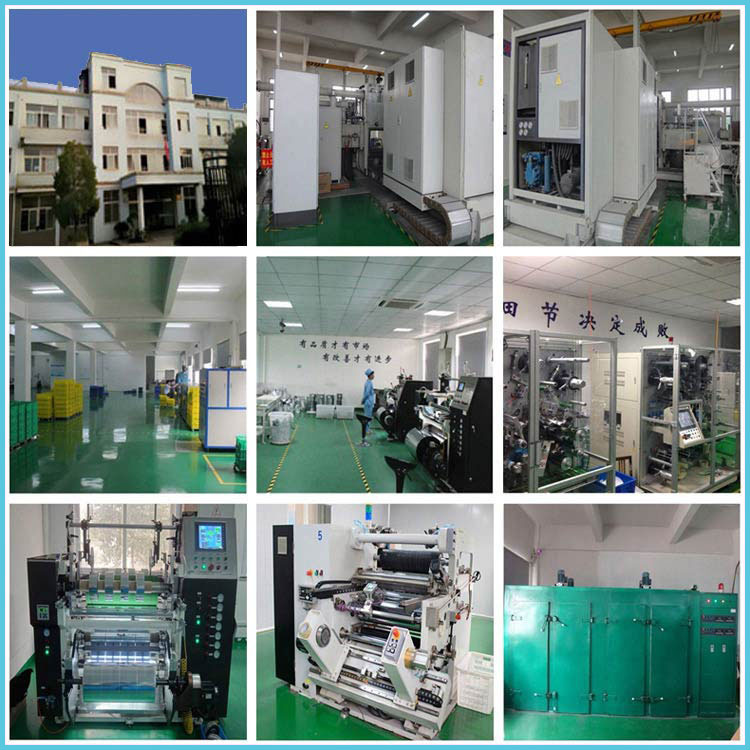

The company is equiped with professional capacitor manufacturing equipment and testing instruments as coating machine, high precision metallized film slitter, imported Rod automatic winding machine, automatic spraying machines, vacuum packaging equipment, special capacitor voltage measurement, constant temperature dehumidify box, special test bridge for capacitor use, all these equipment provide a reliable guarantee for product quality.
We have the business idea of total integrity and globalization service. With international and professional service, we make great efforts to translate Chinese characteristics and industrial benefits into product advantages, at the same time, provide domestic and oversea clients with the most suitable high quality products.
We are very appreciated to developing and creating of splendent tomorrow together with all the friends!
Quality policy:
Quality first, Customer foremost, Knight service, Sustainable improvement
We adhere to the customer as the main body, meet and lead the customer 's demand, provide customers with the first-class service.
Enterprise target:
To be a leading supplier with reliable quality and knight service.
Enterprise spirit:
Realistic, enterprising, collaborative, innovation
Enterprise mission:
Providing satisfied service for customer, society, employee
Business philosophy:
Details determine success or failure
Management policy:
To promote innovation with talents, to increase competitiveness with teams
