Shear Beam Load Cell for Weighing Scale (B726)

Name: Shear Beam Load Cell for Weighing Scale (B726)
Brand: all-electronics-online.com
SKU: 822238155
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 75-80/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B726
Capacity:	0.05-10t
Custom:	Size and Accuracy Could Be Customed
Pattern:	Single Point
Out-Wire:	5 Wires
Feature:	High Precision
Production Process:	Strain Gauge
Material:	Aluminum

Product Description

1. Name:0.1,0.15,0.2,0.25,0.3,0.4,0.5,0.75,1,1.5,2,3,5,7,10t high accuracy steel single ended shear beam Load Cells
2. Material: Stainless steel or alloy steel

3. Capacity:0.1,0.15,0.2,0.25,0.3,0.4,0.5,0.75,1,1.5,2,3,5,7,10t
4. Accuracy: C3
l Made of stainless steel.
l High accuracy, high side load tolerance
l Easy to install, IP65 protection
l Mainly used for electronic scales, truck scale and industrial weighing systems

5. Datasheet

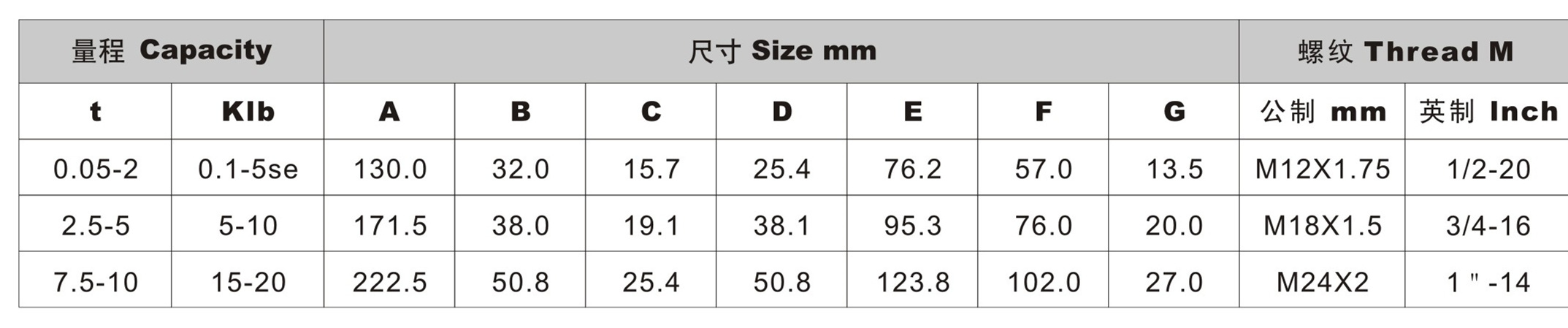

Number	Specifications	/Technique
1	Capacity(t)	0.05-2, 2.5-5, 7.5-10
2	Accuracy class	C3
3	Rated output	2.0±0.005 / 3.0±0.005
4	Zero balance	±1.00%F.S.
5	Non-linearity	±0.02%F.S.
6	Hysteresis	±0.02%F.S.
7	Repeatability	±0.01%F.S.
8	Creep(30min)	±0.02%F.S.
9	Temp.effect on output	±0.02%F.S./10ºC
10	Temp.effect on zero	±0.02%F.S./10ºC
11	Input impedance	385±10Ω
12	Output impedance	350±3Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	10V
15	Maximum excitation	15V
16	Compensated temp range	-10~50ºC
17	Operation temp range	-20~60ºC
18	Safe overload	120%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	Φ5.4×6000mm
21	Material	Stainless / Alloy Steel
22	IP Class	IP67

6. Instruction

Made of stainless steel, potted by adhesive, oil-proof, waterproof, anti-corrosive gas and medium making it suitable for all kinds of environments.
Single shear beam, High accuracy, high side load tolerance
Easy to install, IP67 protection
Mainly used for electronic scales, automobile testing facilities, hopper scales, belt scales and industrial weighing systems

Need something special or a completely customized design? Contact BRANS to discuss your particular application requirements. www.bransensor.com
