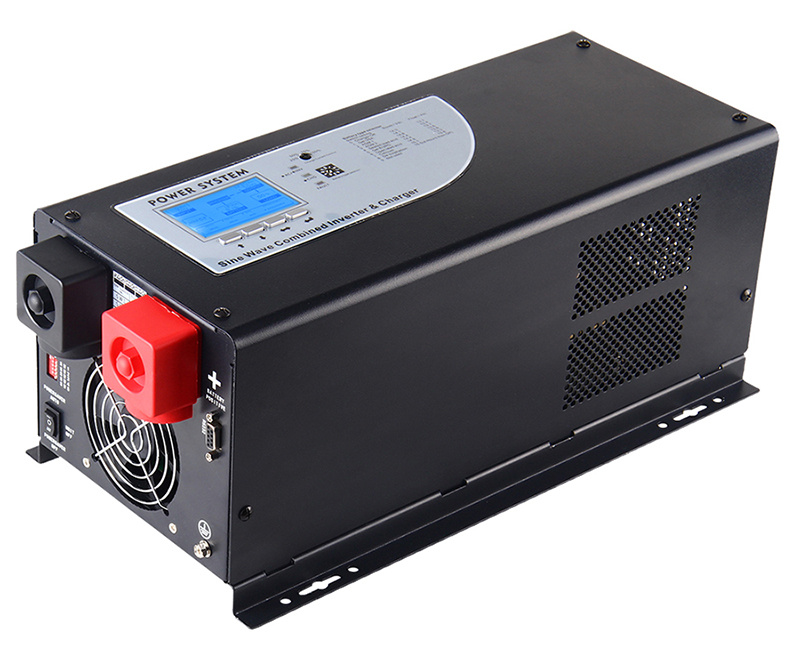

1-12kw Pure Sine Wave Output Inverter

1-12KVA Pure sine wave Output inverter
Pure sine wave output, color screen display
The charging current is big up to 85 Amp
Output power factor is 0.9-1
Output socket optional
Battery type can be select
Output voltage and frequency can be set
Charge current can adjust
Battery temperature sense optional
Connect to generator restart function
Well accept generator's output
Full automatical and silent operation
Automatically transfer between battery and line modes
Microprocessor control guarantees high reliability
Remote control function
Three-steps intelligent charging control to recharging time
Bypass function
Protection for low battery voltage ,over load ,output short circuit and
over- temperature restrain surge interference,eliminate noise,protection
for thunder striking,provide the reliable power to the home appliances.
Supply the reliable long back up time power for the home appliances
and office appliances and solar power systems etc.


Model		3112CL 1-12KW Pure sine wave Output inverter
		1KW	1.5KW	2KW	3KW	4KW	5KW	6K	8KW	10KW	12KW
Input Wave form		Sine wave (utility or generator)
Nominal voltgae		230VAC (120VAC Optional)
Low voltage re trip		90V±4% & 184V/154V±4%
Low voltage re engage		100V±4% & 194V/164V±4%
High voltage re trip		140V±4% & 253V±4%
High voltage re engage		135V±4% & 243V±4%
Nominal Input Frequency		50Hz/60Hz (auto detection)
Frequency range		47Hz~65Hz
Output Wave Form		(Bypass mode) same as input
Efficiency on line transfer mode		≥95%+
Line transfer time		10ms Typical
Bypass without battery connected		Yes
Inverter specification/output
Output Wave Form		Pure sine wave
Output continuous power watts		1000	1500	2000	3000	4000	5000	6000	8000	10000	12000
Output continuous power VA		1000	1500	2000	3000	4000	5000	6000	8000	10000	12000
Power factor		0.9-1
Nominal Output Voltage rms		230VAC (120VAC Optional)
Output Voltage regulation		+/-10%rms
Output freuency		50Hz±0.3Hz or 60Hz±0.3Hz
Safety Certification		>88%
Surge rating		3000	4500	6000	9000	12000	15000	18000	24000	30000	36000
Short circuit Protection		Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage		12V/24V/48V							96V
Nominal Start voltage		10V/20V/40V							80V
Low battery alarm		10.5V/21V/42V							84V
Low battery trip		10V/20V/40V							80V
High voltage alarm		16V/32V/64V							128V
Noise(within 1 meter)		Same switched on/off on remote
Charger mode specification
Output voltage		Dependent on battery type
Charge current		0-85A  MAX							35A MAX	45A MAX	50A MAX
Battery initial voltage for start up		0-15.7V for 12V (*2 for 24V;*4 for 48,*8 for 96V)
Over charge protection shutdown		15.7V for 12V (*2 for 24V;*4 for 48V,*8 for 96)
Charger curves(4 stage constant current) battery types
4step digital controlled progressive charge
Battery type		Fast V      Fast V(*2 for 24V; *4 for 48V)
Gel U.S.A		14.0               13.7
A.G.M. 1		14.1              13.4
A.G.M. 2		14.6              13.7
Sealed lead acid		14.4              13.6
Gel euro		14.4              13.8
Open lead acid		14.8              13.3
Calcium		15.1              13.6
De-sulphation		15.5 for 4hrs
Remote control/RS232/USB		Yes, Optional
