| Prod Model: |
86BYGC401Series |
| Motor Series: |
86 Bygc |
| Step Angle: |
1.2 Deg |
| Shaft End Length: |
30mm (1.18 in) |
| Shaft: |
D-Cut Shaft |
| Connectors: |
Lead Wires, Plug-in |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Magnetic-Electric |
| Brand: |
Shengyang |
Product Description

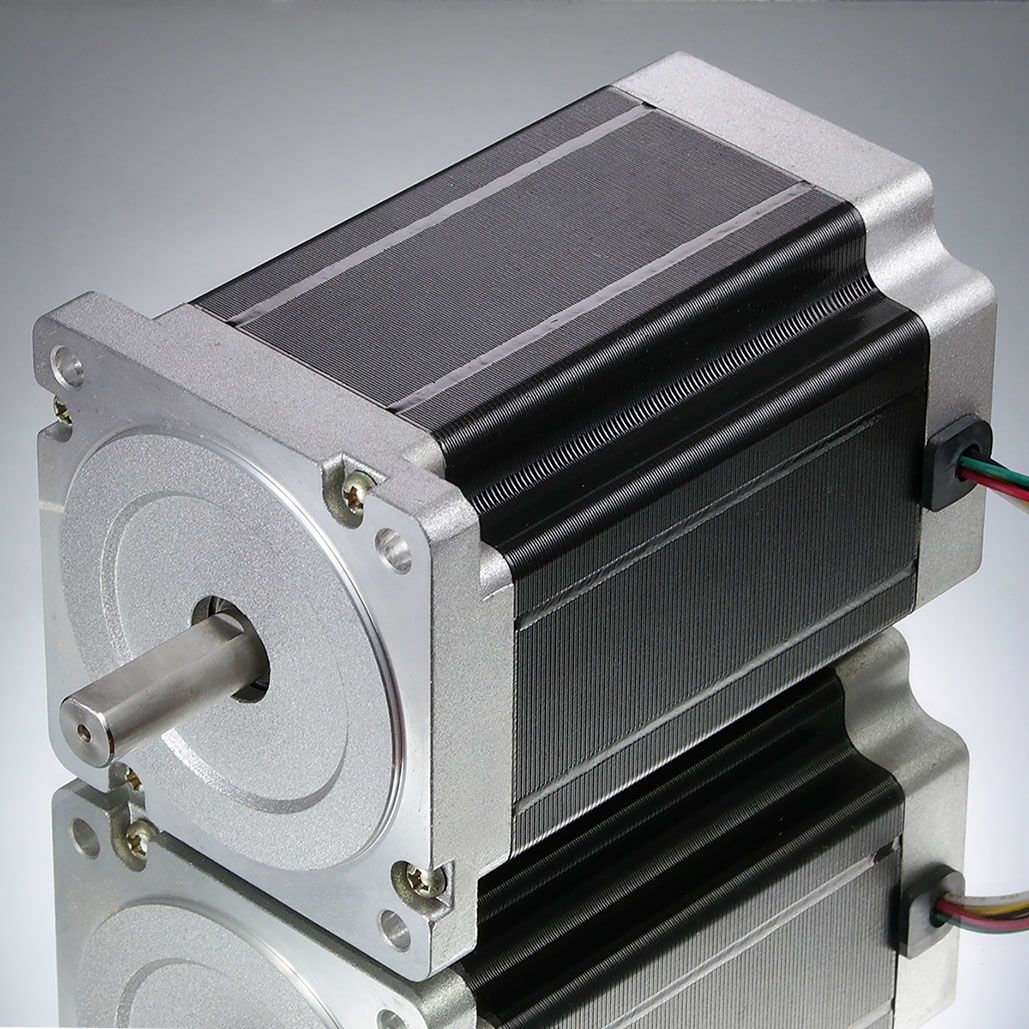

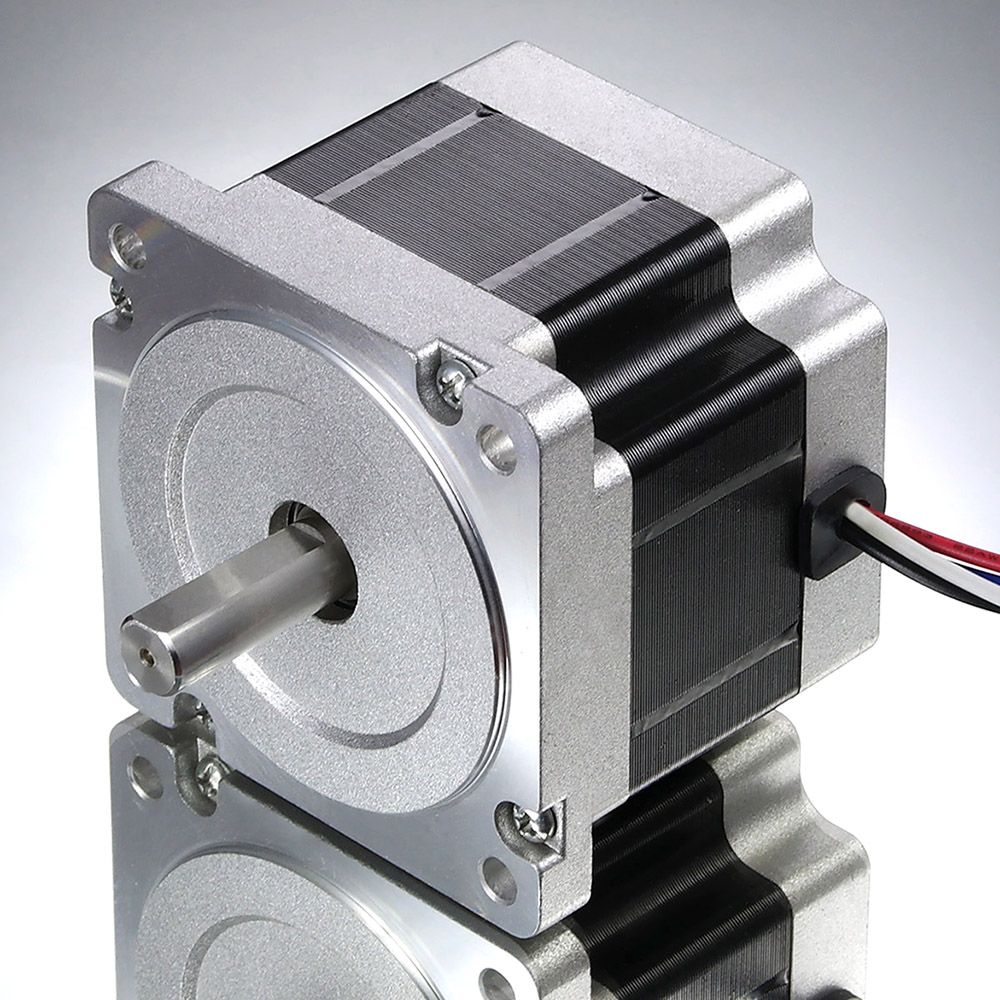

1.2 Deg 86mm Steppper Motor for CNC, 3D Printer
Features:
High torque
High accuracy

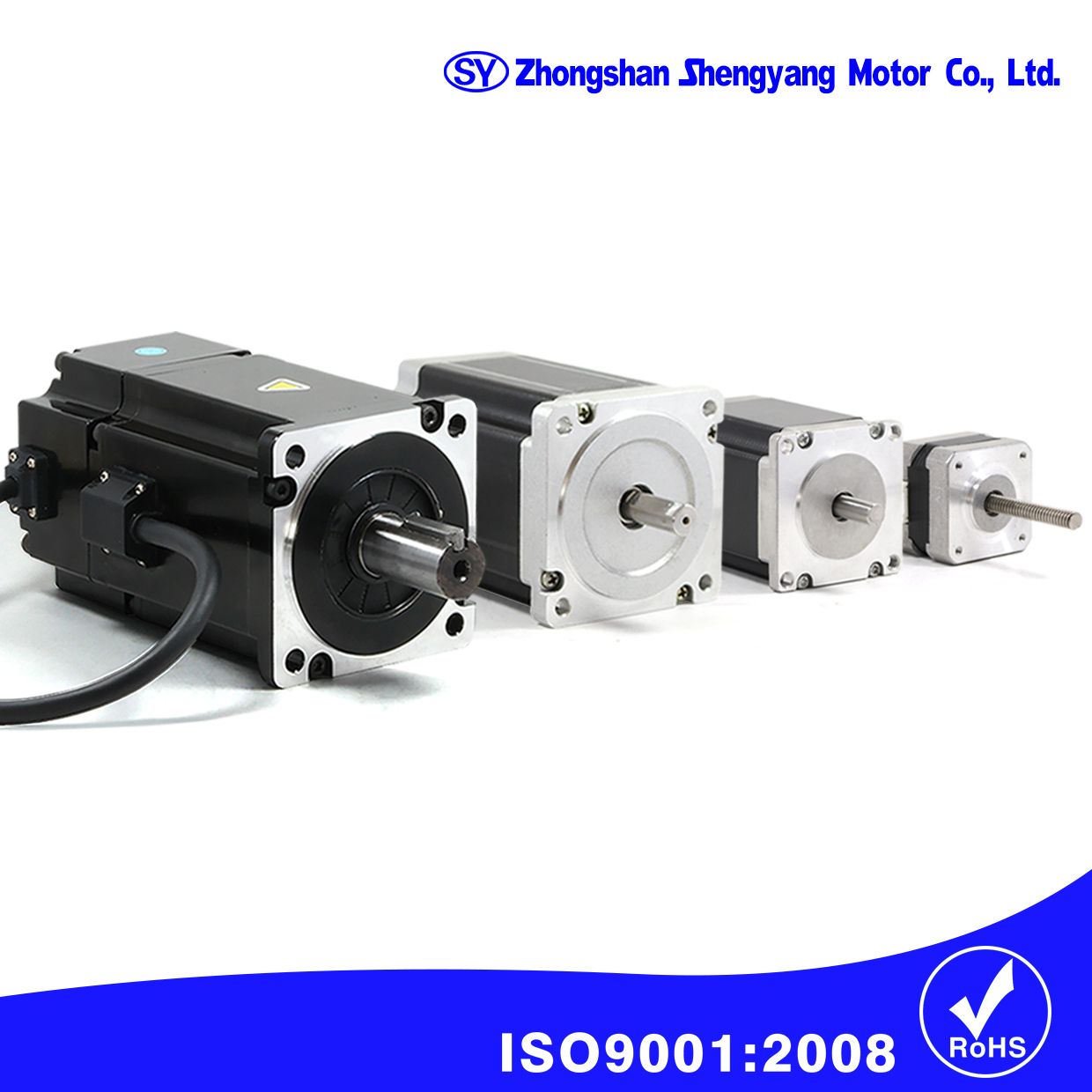

Smooth movement Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.
The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life.
All the derived products of us can be customized for your needs.
Product Description
1. Speficications:
Motor Model: 86BYGC401-C-30
Step Angle: 1.2°± 5% full step, no load
Motor Length: 127 mm (5 in)
Holding Torque: 6.78 Nm (60 lb-in)
Rated Current: 5.2\3 A DC
Resistance per Phase: 2.75\5.5 ohm
Inductance per Phase: 12\36 mH
Shaft Length: 30mm (1.18in)
Shaft: D-Cut Shaft
Connectors: Lead Wires
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100mΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA
2. Note:
Performance and parameters are customized, just simply send your motor diagram or samples to us, we will provide the competitive price for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, contact us and talk details.
Contacts: Mr. Kanix Ik
Mobile: (+86) 1552 1524 907
shengyangmotor.en.made-in-china.com
Series
&
Length | Model
Number | Holding
Torque | Rated Current | Resistance
per Phase | Inductance
per Phase |
| Nm lb.in | A | ohm | mH |
86BYGC0
67mm
(2.64in) | 86BYGC001-C-30 | 2.26 20 | 1.75\1.2 | 4.25\8.5 | 11\31 |
86BYGC4
127mm
(5in) | 86BYGC401-C-30 | 6.78 60 | 5.2\3 | 2.75\5.5 | 12\36 |
