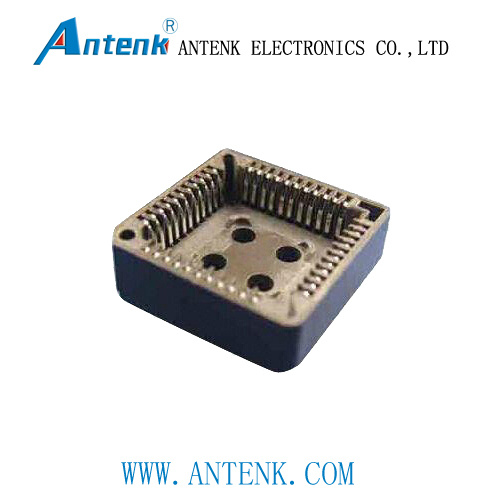

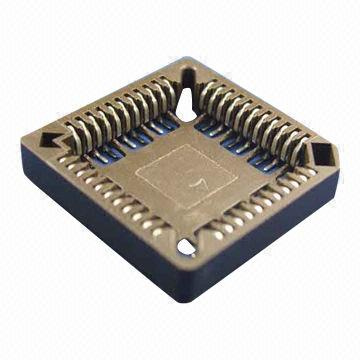

1.27/2.54mm Plcc Socket in DIP/SMT Type with Tin-Plated Contact

Name: 1.27/2.54mm Plcc Socket in DIP/SMT Type with Tin-Plated Contact
Brand: all-electronics-online.com
SKU: 721380715
Availability: InStock
Rating: 4.6 (103 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Specifications:
Poles: 10, 12, 14, 56, 58 and 60
Voltage rating: 50V DC/AC (rms)
Specifications:
1.27mm (0.050-inch) PLCC socket DIP/SMT type
2.54mm (0.100 inch) PLCC socket DIP/SMT type
Contact plating: tin only
Standard insulator: PBT/PPS
No of contacts: 20, 28, 32, 40, 44, 52, 68, 84
Insulator: glass filled thermoplastic PPS-GF30
Flammability: UL 94V-0
Contact: phosphor bronze
Contact pressure: 1.5N per contact (minimum)
Mechanical lifespan: 100 cycles (minimum)
Rated current: 2A
Contact resistance: 20MOhms (maximum)
Dielectric strength: 600V RMS (minimum)
Insertion resistance: 5,000MOhms (minimum)
Capacitance: 2pF (maximum)
OEM and ODM orders are welcomed

Prod Model:	PLCC Socket Series 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Installation Mode:	Clamshell-Type T-Flash Jack
Type:	SD+MMC+MS+Xd+Minisd+TF Jack

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
