1.4V 1080P 4k 3D Blueray HDMI Cable

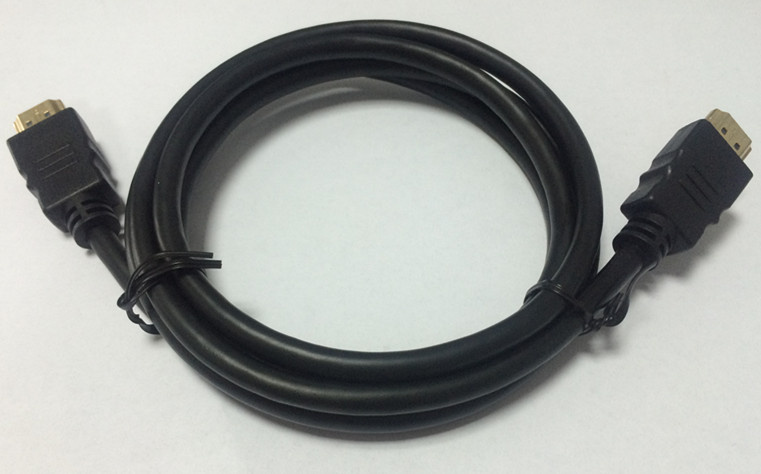

Name: 1.4V 1080P 4k 3D Blueray HDMI Cable
Brand: all-electronics-online.com
SKU: 785032445
Availability: InStock
Rating: 5 (75 reviews)

Price:	US $ 0.5-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FT-6003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Rated temperature:80ºC

Rated voltage:30V

Reference standard:Hight-definitio
Mulitimedia interface specification version

1.4, 2.0

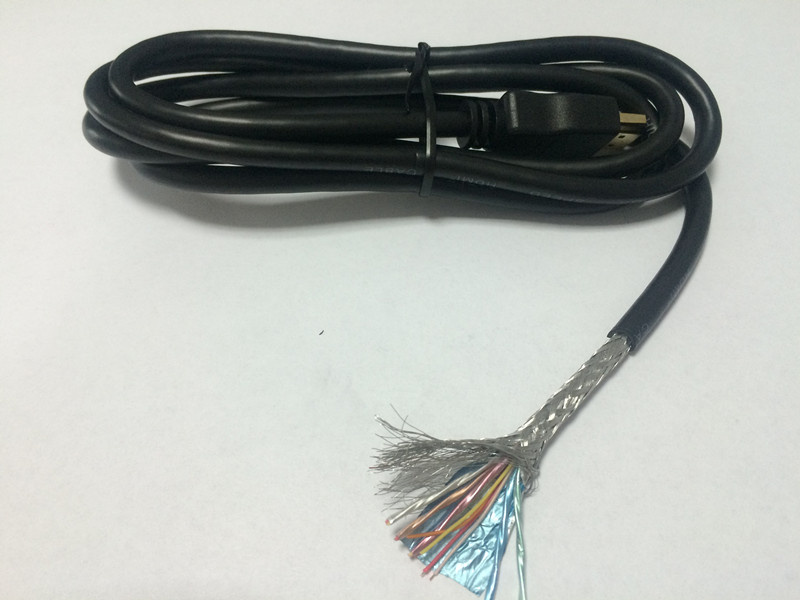

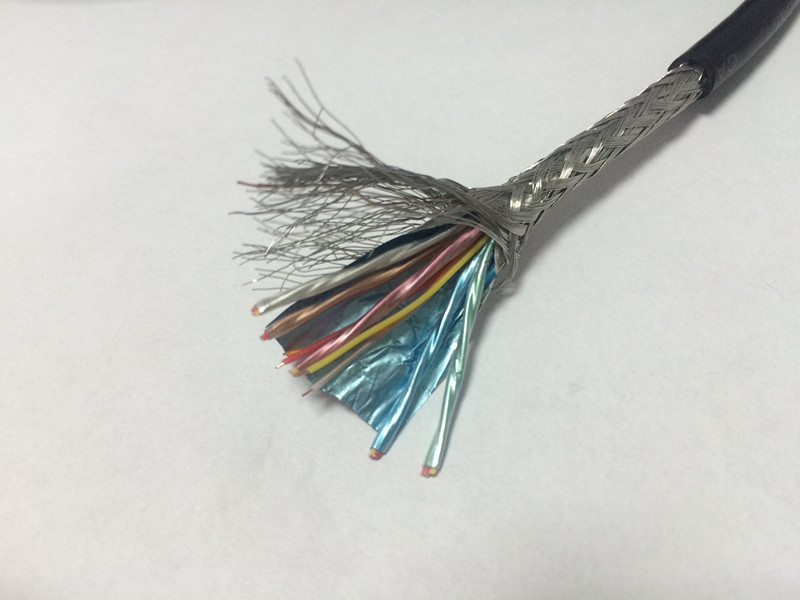

Stranded tinned copper conductor,32-22AWG

Color-coded foam PE or PE insulation

Over 85% coverage tinned copper or copper alloy braid shield

Leed free PVC jacket

Passes UL VW-1 & CSA FT1 vertical flame test

HDMI ethernet channel

Audio return channel

3D over HDMI

4K x 2K resolution support

Expanded support for color spaces

Micro HDMI connector

Automotive connection system

Electrical characteristic:

Differential impedance (20ºC):100±10Ω

Differential delay ≤ 4.5ns/m

Propagation delay skew:

Within a pair: ≤ 111ps/m

Between pairs: ≤ 1.78ns/m

Far and cross-talk: ≤-20dB,1-5100MHz

Attenuation(NA)

Frequency(MHz) Attn.dB(Max)

1~825 -5

5100 -25

Features

Displays natural vivid colors accurately

Enables single-link bandwidth of 340 MHz

10.2 gigabits per second (Gbps)

to support the demands of future HD display devices such as higher resolutions,

Deep Color™ and high-frame rates

Ensures compatibility with the lossless compressed digital-audio formats of Dolby™

TrueHD and DTS-HDMaster Audio™ for high-resolution audio

Features the latest technology with Audi

o Return Channel (ARC) functionality

Fully integrated High Speed capability to support fully

uncompressed HD 1080p resolution

Supports high-bandwidth uncompressed digital audio

Throughput of 10.2 Gbps

Model	Name	Unit	Spec	Metal Plug Spec	Jecket	Cable Spec	Molding Plug Spec
FT-6003	HDMI Cable	PIC	HDMI plug to HDMI plug	Gold and Nickel plated shells available	nylon sleeve availble	30awg 28awg 26awg 24awg filter availble	metal assembly type

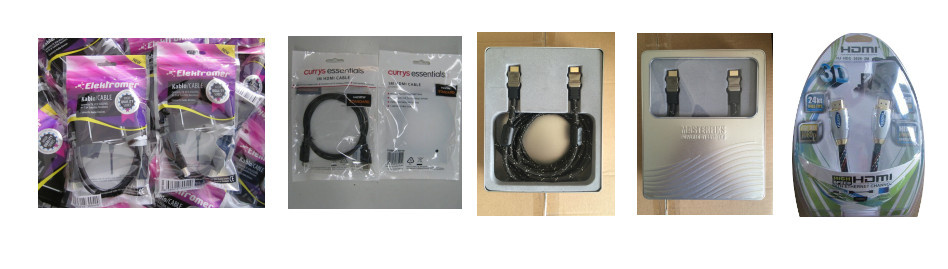

packages:
various packages for you choice

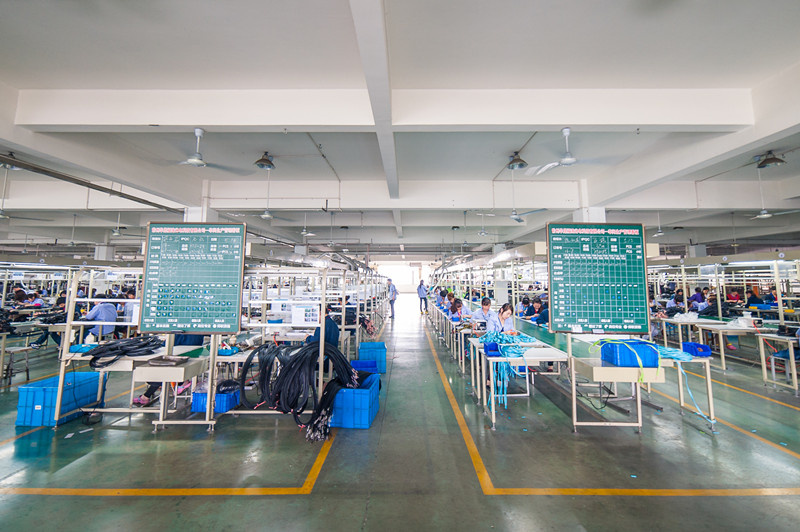

workshop

Changzhou Huasheng Futao Photoelectric Science &Technology Co., Ltd. is located in Wujin Hi-tech Industry Area. The factory area is 32 mu and building area is about 20000 square meters. It has predominant geographical location and very convenient transport facilities. The Yanjiang express way and huning express way are nearby.

For years, we dedicate to the cooperation with China Science & Technology University, established the laboratory for the plastic optical fiber devices and national application engineering for the research and development of HDMI cables, Toslink and other different AV cables. Meanwhile, we import the professional equipments and technology from Japan and Germany for the production of PV Ribbon, PV Intelligent Junction Box and PV cables. These products are widely used in solar field.

We aim at the faith of "quality is the cornerstone of company's existence, customer's requirement is the standard". In order to improve products' quality, we establish advanced testing laboratory. We use ISO9001 quality procedures and passed TUV and UL certificate. We advocate the culture conception of "keep improving and reinvent continuously". We believe we can contribute to the energy conservation and environmental protection.

It is our honor to have you to grow with our company!
