1.5KVA Transformer type off Grid Hybrid solar inverter with 30A Solar controllerFeatures and function:Pure sine wave output
AC Charging current 15A
High-low voltage protection
Against overload, short-circuit Protection
Over voltage,battery reverse connection(optional)
Under-voltage and over-temperature protection
Selectable battery priority or utility priority
Have UPS function and AC charger function
Built in 10A/20A/30A PWM solar charge controller
Fulll Protection:Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.Application of solar energy system:This is a pure sine wave inverter with AC charge and solar controller,

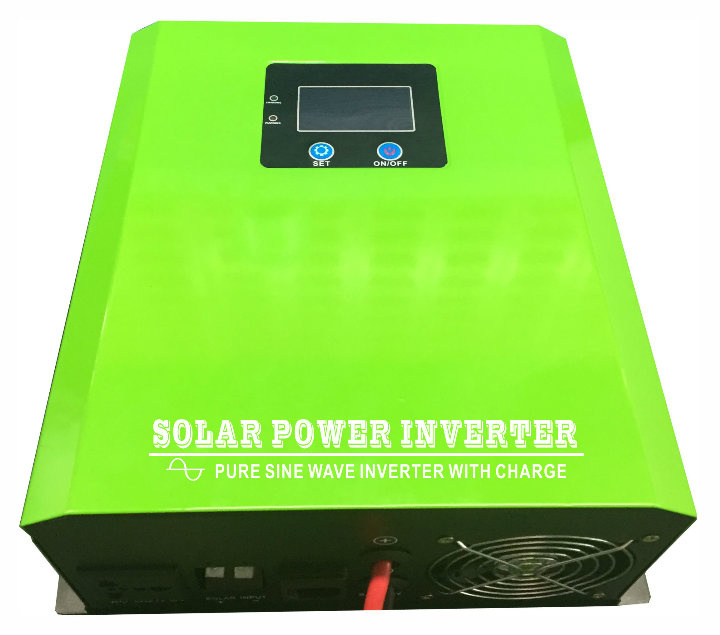

LCD display offer users-configurable and clear data . Easy-to-operate
button operation such as battery or city power priority, battery voltage,

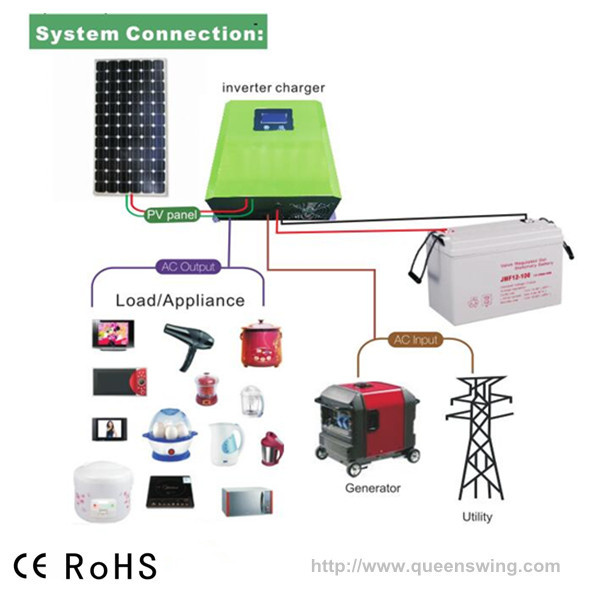

load ,Input and output voltage query. It can use for solar power system ,
light, radio, DVD, TV set and the other house appliance.
Technical DataTechnical Data| Model: | 300W | 500W | 700W | 800W | 1000W | 1200W |
| Rated power: | 300W | 500W | 700W | 800W | 1000W | 1200W |
| Peak power: | 600W | 1000W | 1400W | 1600W | 2000W | 2400W |
| AC input voltage range: | 70V-135VAC(110VAC/120VAC)
140V-275VAC(220VAC/230VAC) |
| Input frequency range: | 45-65HZ |
| Battery voltage: | 12VDC/24VDC |
| DC voltage: | 12VDC:10.5-15VDC/24VDC:21-30VDC |
| PWM solar controller: | 10A/20A/30A(Optional) |
| Solar input: | 120W | 240W | 360W | 480W | 720W | 720W |
| Battery undervoltage alarm: | 0.5VDC/21VDC |
Battery undervoltage
protection: | 10VDC/20VDC |
| Battery overvoltage protection: | 17V±0.5V/34V±0.5V |
| Overvoltage alarm | 15V-16VDC/30V-32VDC |
| Overload protection: | Rated power of 110% or more |
| Temperature protection: | ≥85ºC alarm, ≥90ºC off the machine |
| Inverter output voltage: | 110VAC/120VAC/220VAC/230VAC±2% |
| Inverter output frequency: | 50/60HZ±10% |
| Inverter output waveform: | Pure sine wave |
| AC output voltage Range: | AVR output 110VAC/120VAC/220VAC/230VAC±10% |
| Output frequency range: | Automatic tracking |
| Conversion time: | ≤5ms |
| Cooling method: | Intelligent fan control,≤42ºCfan slow working, ≥45ºCfan high working |
| AC Charging current: | 15A |
| Working mode selection: | Free to choose(SET)
01:AC priority/City power priority: When city power is available, the inverter will work AC output,
city power will supply power toappliances. The city power and sun power will charge 2 kinds
power to battery. When city power failed, sun power will charge the battery and use
power(solar power)to take the appliances.
02:energy saving mode load power ≤10% off the machine,≥11%-100% turn on
03: solar power priority/Battery priority When it have sun power, sun power charges the
battery and supply power to the appliances. When it does not have sun power or battery
voltage ≤10.5V, inverter will automatic use city power to take the appliances, When
battery voltage reach 13V inverter will use battery power and sun power. |
External Size(mm)
D×W×H | 300*290*150mm |
Packing Size(mm)
D×W×H | 350*350*405(2pcs) |
| Net Weight(kg) | 5.5 | 6.5 | 7 | 8 | 9.5 | 10 |
| Gross Weight(kg) | 13 | 15 | 16 | 18 | 20 | 22 |
