Prod Model: |
LR6 |
Color: |
Green |
Cross Reference: |
Am-3 |
Charging Type: |
Non-rechargeable |
Nominal Voltage: |
1.5V |
Battery Type: |
Zn/MnO2 Battery |
Recycling: |
Non-Recyclable |
Size: |
AA |
Certification: |
RoHS |
Package: |
Simple |
Product Description

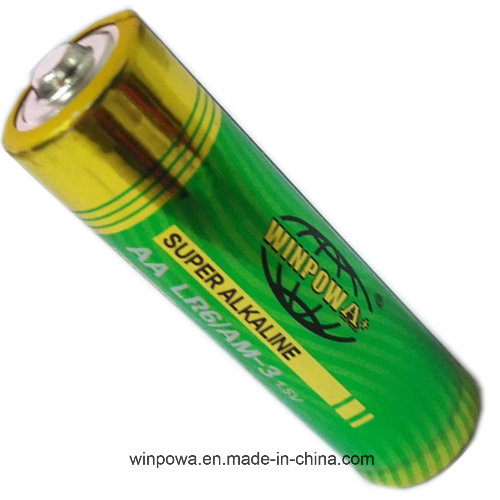

1.5V alkaline 15A battery(external short test passed)
Product overview:
Battery type: Alkaline Manganese(mercury free)
Battery size: LR6/AM-3/AA/MN1500/MIGNON
Chemical system: Zn/KOH-H2O/MnO2
Typical voltage: 1.5V
Open circuit voltage: 1.57~1.62V(New battery)
1.55~1.62V(after 1 year storage at 20ºC)
Capacity
Motor/Toy | 3.9ohm loading,1hour/day,end voltage 0.8V | 8.75hours |
Radio | 43ohm loading, 4hours/day, end voltage 0.9V | 92.06hours |
Remote control | 24ohm loading, 15seconds/minute, 8hours/day,end voltage 1.0V | 51.54hours |
Tape recorder | 10ohm loading, 1hour/day, end voltage 0.9V | 20.5hours |
Photo flash lamp | 1000mA constant current discharge, 10seconds/minute,1hour/day, end voltage 0.9V | 396cycles |
Camera | 1500mW/650mW/0mW end voltage 1.05V | 66cycles |
Continuous discharge | 10ohm loading, 24hours/day, end voltage0.9V | 19.35hours |
Leakage Test
Evaluation items | Evaluation period | Test method | Evaluation results |
Over discharge at 20ºC | 12 Weeks | discharge at 10ohms after 48 hours | pass |
Over discharge at 45ºC | 12 Weeks | discharge at 10ohms after 48 hours | pass |
71ºC stored | 12 Weeks | Stored in high temperature chamber in 71ºC | pass |
45ºC PPD test | 12 Weeks | Discharge at 10ohms, end volt 0.8V stored in 45ºC | pass |
71ºC PPD test | 12 Weeks | Discharge at 10ohms, end volt 0.8V stored in 71ºC | pass |
Climate temperature cycle | 2 Weeks | -20ºC~ 70ºC Repeat 10 times to check whether the battery is ruptured. | pass |
External short | 1 Weeks | Verify that the battery is not broken by connecting the (+) pole and (-) pole of the circuit resistance below 0.1Ω for 24 hours | pass |
Certification:
FAQ:
Q:Can you help us for freight?
A:Yes,we also have trustable forwarders for you option, if you need.
Q:Can we have our own packaging design?
A:Of cause, customized packaging is available, No MOQ request.
Q:How long is your warranty?
A:We offer 1 years warranty after order delivery.

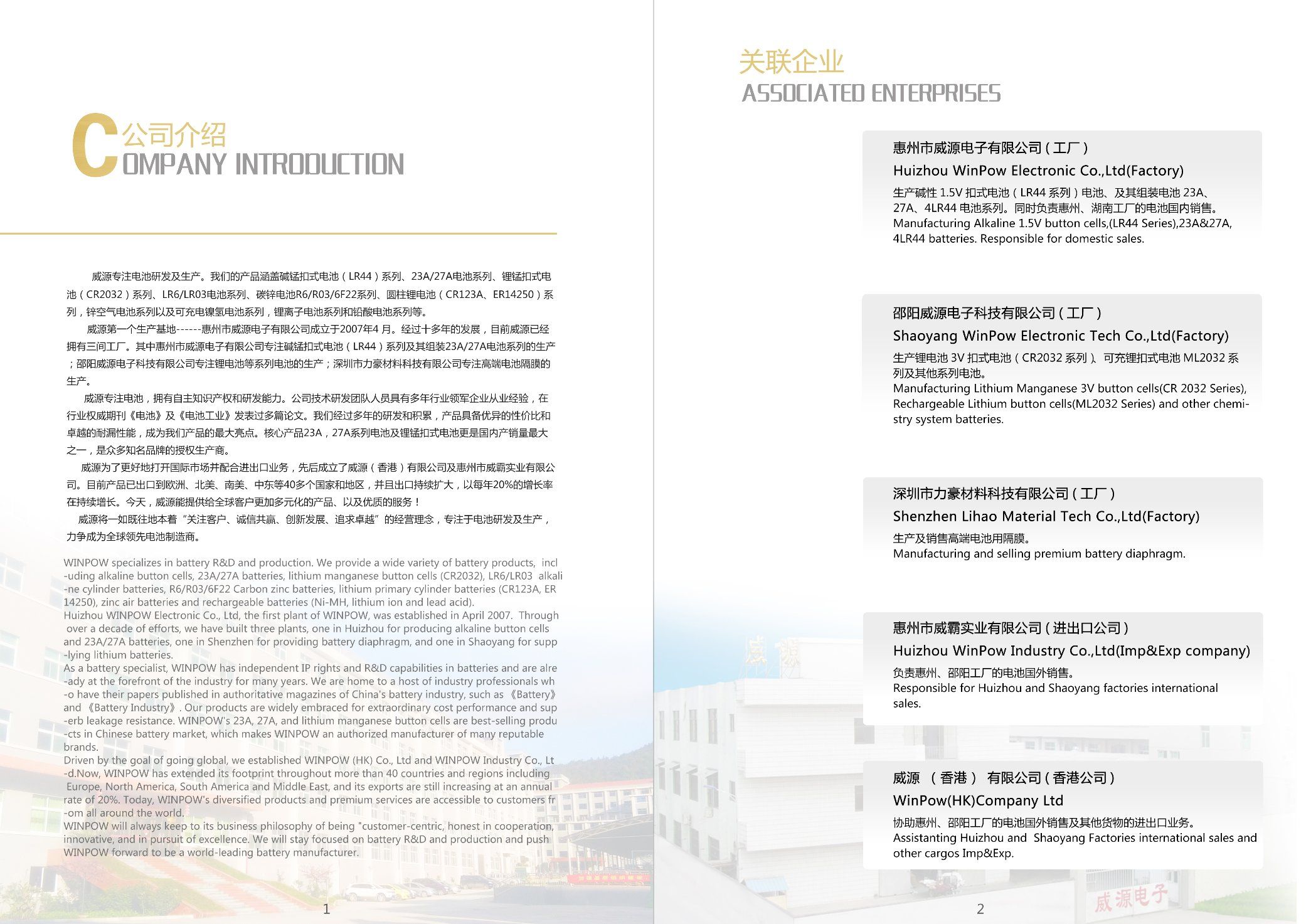

WINPOW specializes in battery R&D and production. We provide a wide variety of battery products, including alkaline button cells, 23A/27A batteries, lithium manganese button cells (CR2032), LR6/LR03 alkaline cylinder batteries, R6/R03/6F22 Carbon zinc batteries, lithium primary cylinder batteries (CR123A, ER14250), zinc air batteries and rechargeable batteries (Ni-MH, lithium ion and lead acid).
Huizhou WINPOW Electronic Co., Ltd, the first plant of WINPOW, was established in April 2007. Through over a decade of efforts, we have built three plants, one in Huizhou for producing alkaline button cells and 23A/27 batteries, one in Shenzhen for providing battery diaphragm, and one in Shaoyang for supplying lithium batteries.
As a battery specialist, WINPOW has independent IP rights and R&D capabilities in batteries and are already at the forefront of the industry for many years. We are home to a host of industry professionals who have their papers published in authoritative magazines of China's battery industry, such as Battery and Battery Industry. Our products are widely embraced for extraordinary cost performance and superb leakage resistance. WINPOW's 23A, 27A, and lithium manganese button cells are best-selling products in Chinese battery market, which makes WINPOW an authorized manufacturer of many reputable brands.
Driven by the goal of going global, we established WINPOW (HK) Co., Ltd and WINPOW Industry Co., Ltd. As yet, WINPOW has extended its footprint throughout more than 40 countries and regions including Europe, North America, South America, and Middle East, and its exports are still increasing at an annual rate of 20%. Today, WINPOW's diversified products and premium services are accessible to customers from all around the world.
WINPOW will always keep to its business philosophy of being "customer-centric, honest in cooperation, innovative, and in pursuit of excellence. We will stay focused on battery R&D and production and push WINPOW forward to be a world-leading battery manufacturer.
