2016 New 1-63A 2p 3p 4p 230VAC Dual Power Automatic Transfer SwitchProduct Description:Dual power automatic transfer switch Main Features:
1.Reasonable structure, small volume, nice appearance, provided with protective shield, safer and more reliable power supply.
2.Complete protective functions, including short circuit, overload, open phase and loss-of-voltage protection.
3.Reliable remote double-break with EPS fire protection power supply interface DC12-24V.
4.Noiseless, energy saving , simple installation , easy operation, reliable and stable performance.
Dual power automatic transfer switch Parameters:
Rated Working Current | 10A | 16A | 20A | 25A | 32A | 40A | 50A | 63A |
Rated Working Voltage | AC400V |
Controling Voltage | AC230V |
Rated Short Circuit Breaking Capacity | 3KA |
Rated Short Circuit Making Capacity | 3KA |
Rated Insulation Voltage | AC500V |
Transfer Time | ≤3S |
Frequency | 50/60HZ |
ATS Level | CB Class |
Standard | IEC60947-1 |

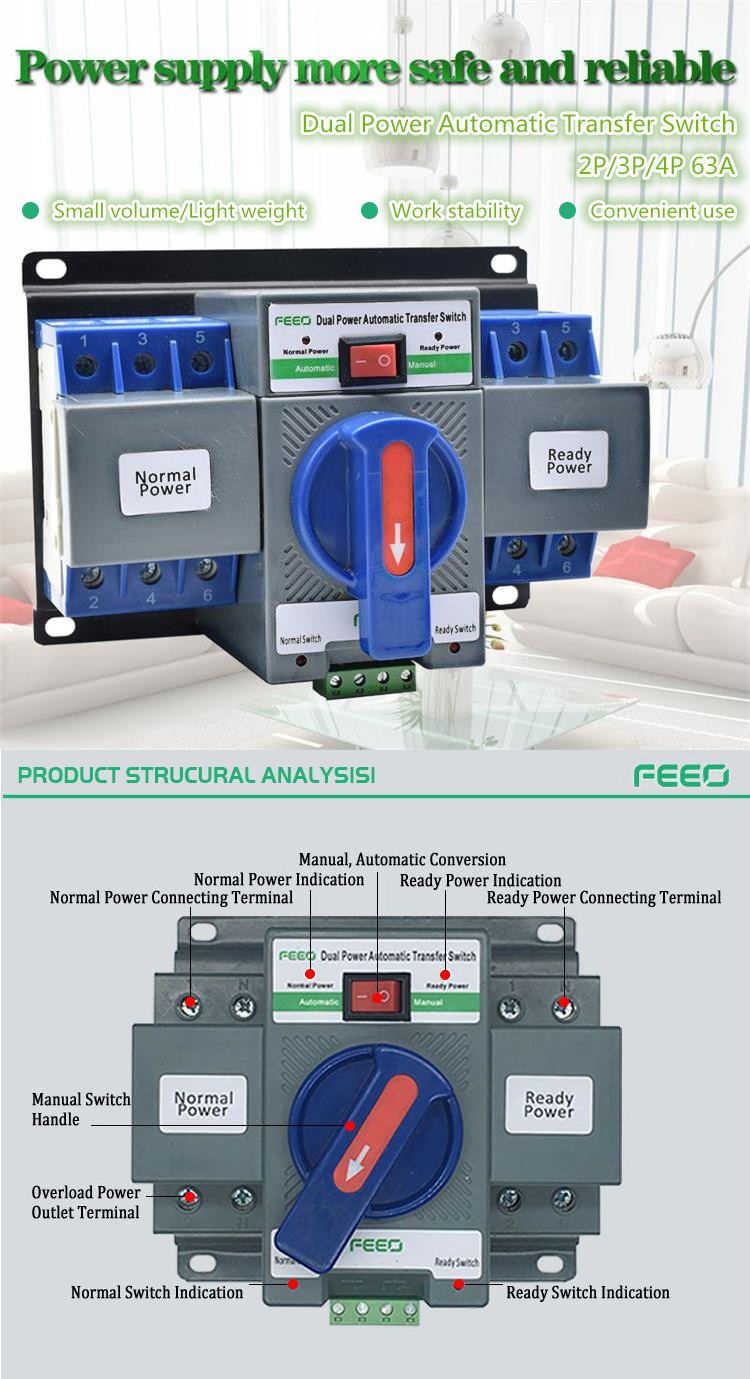

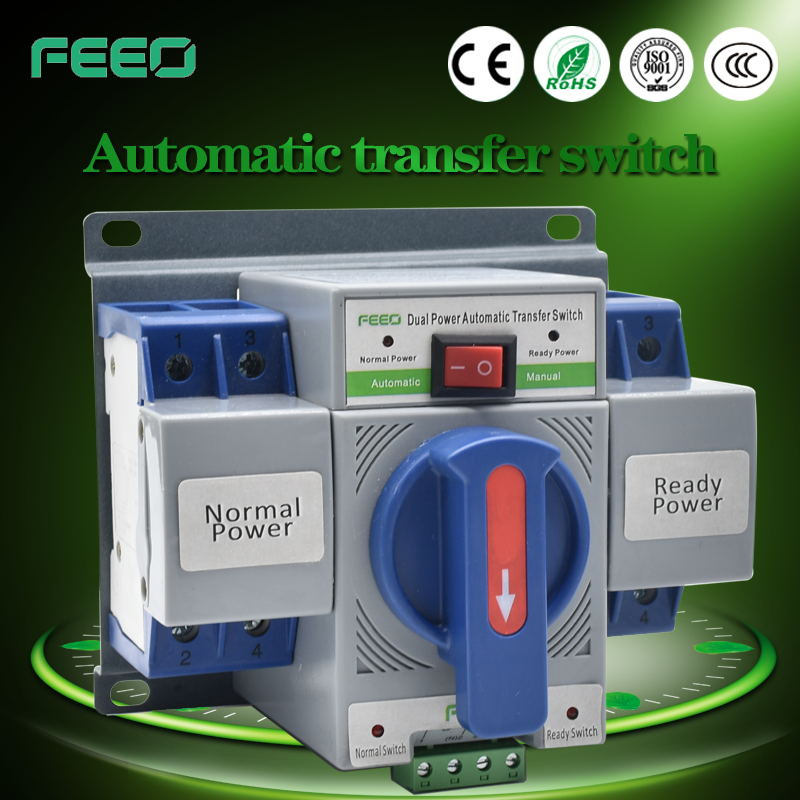

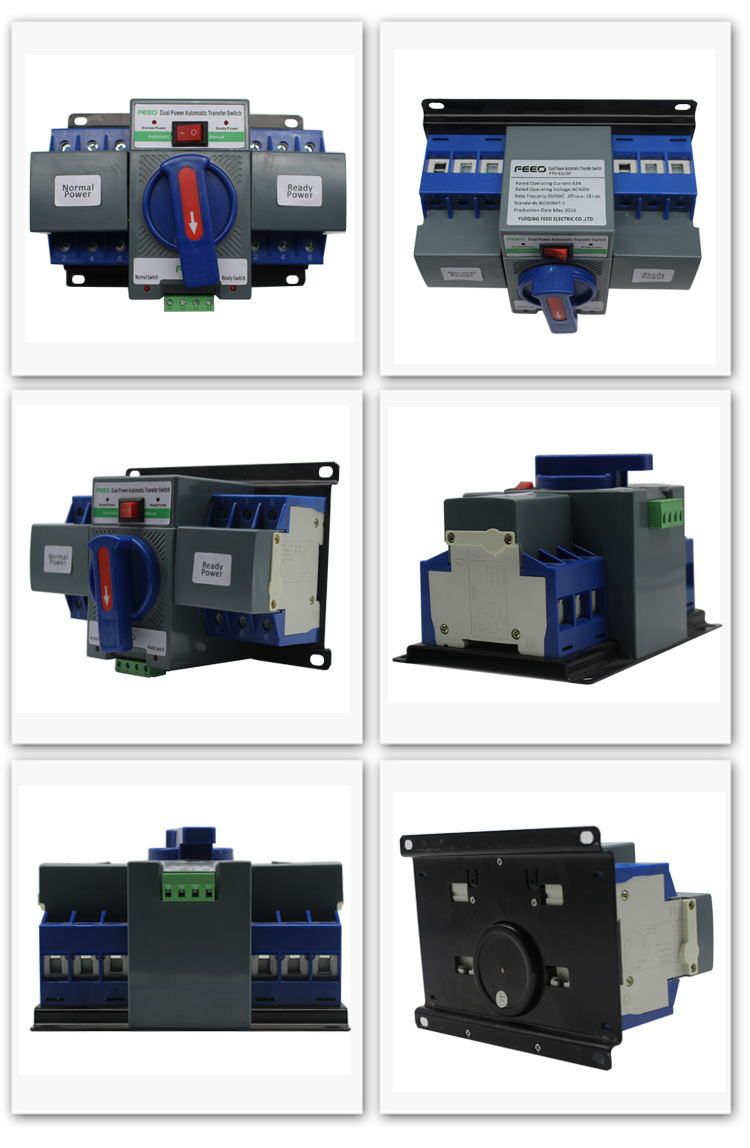

Dual power automatic transfer switch Pictures Show:

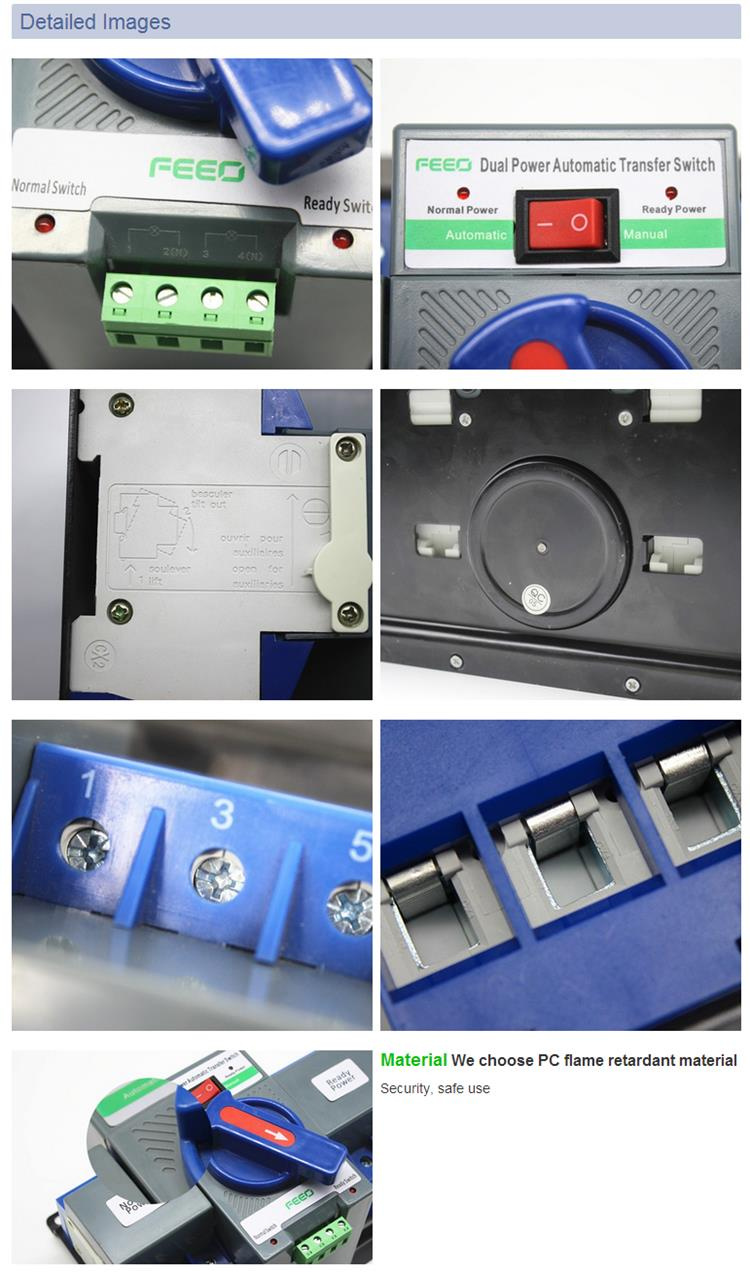

Detailed Images:
Packaging & Shipping:Dual power automatic transfer switch Package:Standard export carton packing:
Carton Size 36.5*32.5*27CM3
G.W./N.W.: 11/10.4kgs
Dual power automatic transfer switch Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Dual power automatic transfer switch Shipping:1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Our Services:
1. One to one service,Feedback within 24 hours
2. Design for special packing, Products printing and logo OEM
3. Find the solution for any problems actively
Company Information:
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ:Q: If I'm interested in your dual power automatic transfer switch when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your dual power automatic transfer switch seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our dual power automatic transfer switch are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your dual power automatic transfer switch quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 10~15days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your dual power automatic transfer switch?
A:We offer two year warranty for our customer.
Our company is a manufacturer of Solar Electrical Products/DC Circuit Breaker/DC SPD/DC FUSE/Waterproof Box with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
Established in 2000, YUEQING FEEO ELECTRIC Co., Ltd. Specializes in manufacturing Solar PV product. Located in WENZHOU we enjoy convenient access to major transportation networks. Our company covers an area of 2000m² And has around 70 staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
