| Prod Model: |
FTTH drop cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Mode: |
G657A/G652D |
| Operating Temperature: |
-40 C ~ +70 C |
| Installation Style: |
Outdoor Direct Buried |
| Strengthen Member: |
Steel/FRP |
| Core Number: |
Customized |
| Number Of Conductors: |
1-4 Cores |
| Brand Name: |
Tw-Scie Fiber Optic Cable or as Required |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH |
| Core: |
1/2/4 Core |
| Type: |
Drop Cable |
| Application: |
Telecommunication |
Product Description

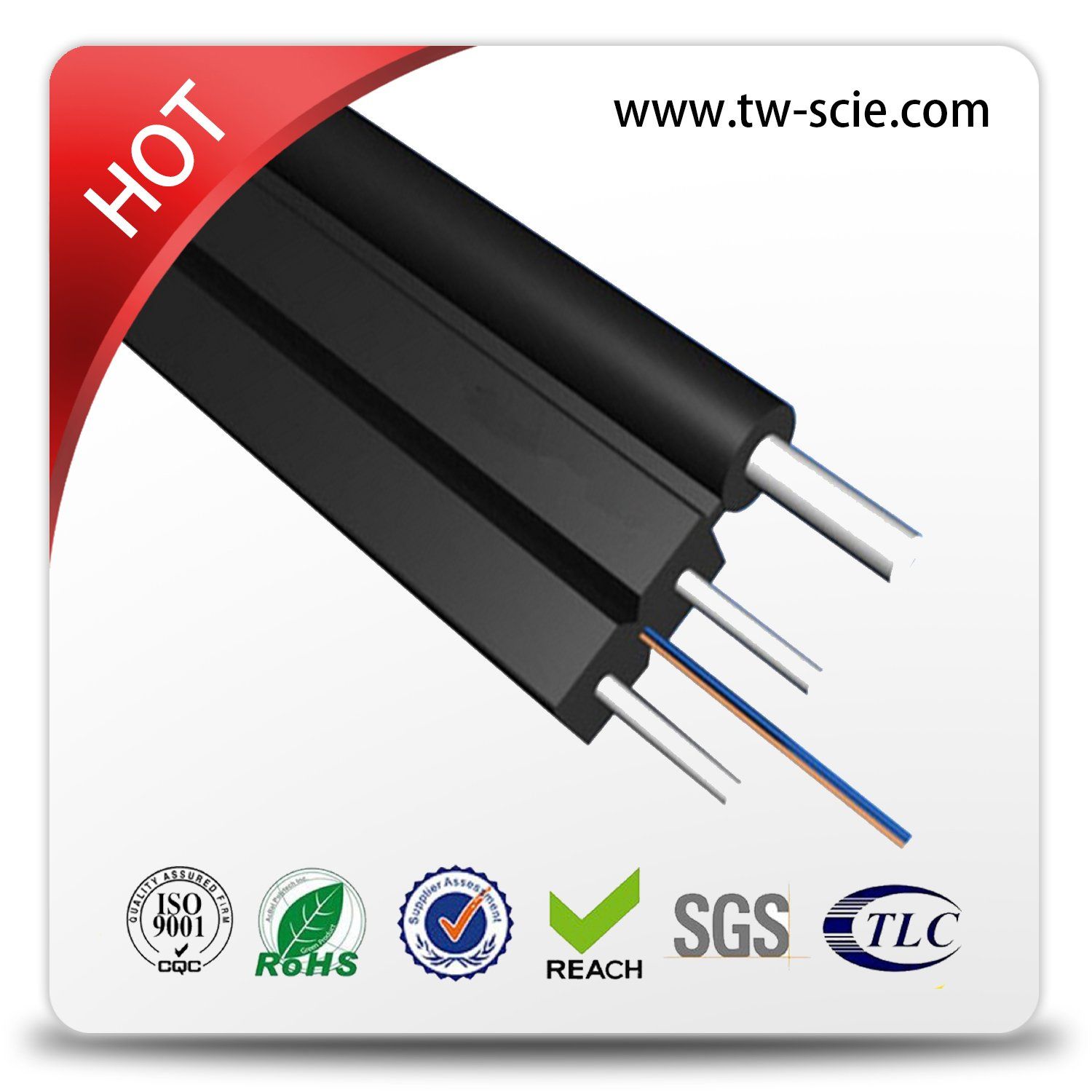

1 or 2 Core Aerial Self-Suporting Drop Optical Fiber Cable
Packaging & Delivery:Packaging Details: in small drum with carton
Delivery Time: 3 working days
Description:

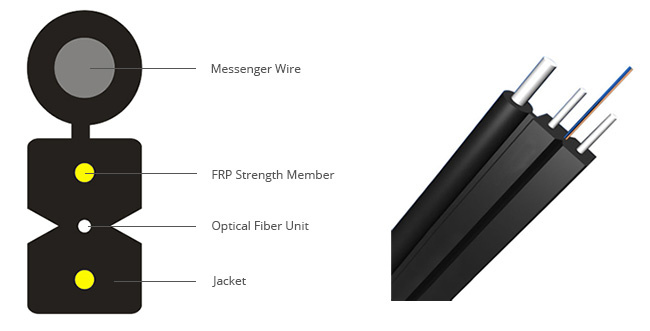

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
Feature:
- Two parallel FRP strangth members ensuregood performance of crush resistance to protect the fiber
- Simple structure ,light weight and high practicability
- Novel flute desig,easily strip and splice ,simplify the installation and maintenance
- Low smoke zero halogen and flame reardant sheath
General Specifications:
| Cable Type | FTTH outdoor drop fiber optic cable |
| Fiber Type | SM G652D/ SM G657A1/ SM G657A2 |
| Application | Communication, LAN |
| Recommended installation methods | href="http://www.sogou.com/link?url=DSOYnZeCC_r8heIrKPKvz3Qa18ZBfitmswmD7WtH01P7GyMFwnDkjLwll08knDbUq56AH-LU1t2wnK9etc1FOG4GGYPn6kr-yfnp3wi1XEluGGn0nqLfow..&query=Gas+blowing+pipe+installation" aerial or duct installation |
| Temperature Range | -20ºC to 60ºC |
Cable Design:
| Item | Description |
| Model No | GJYXH/GJYXFH |
| 1. Fiber count | 1 Core/2 Core/4 Core |
| 2. Cable Diameter | 5.0*2.0mm |
| 3. Cable Weight | 21.5KGS/20.0KGS |
| 4. Strength member | |
| -Material | STEEL/FRP |
| -Diameter | 0.45mm |
| 5.Outer Sheath | |
| -Material | LSZH |
| 6. Sheath marking | |
| -Type of marking | Laser printing |
| 7. Messenger | |
| OD | 1.0mm |
| Material | Steel wire |

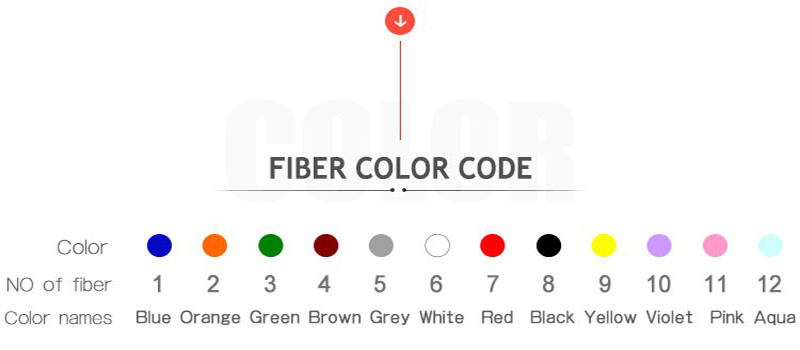

Standard Color Identification of Fiber:

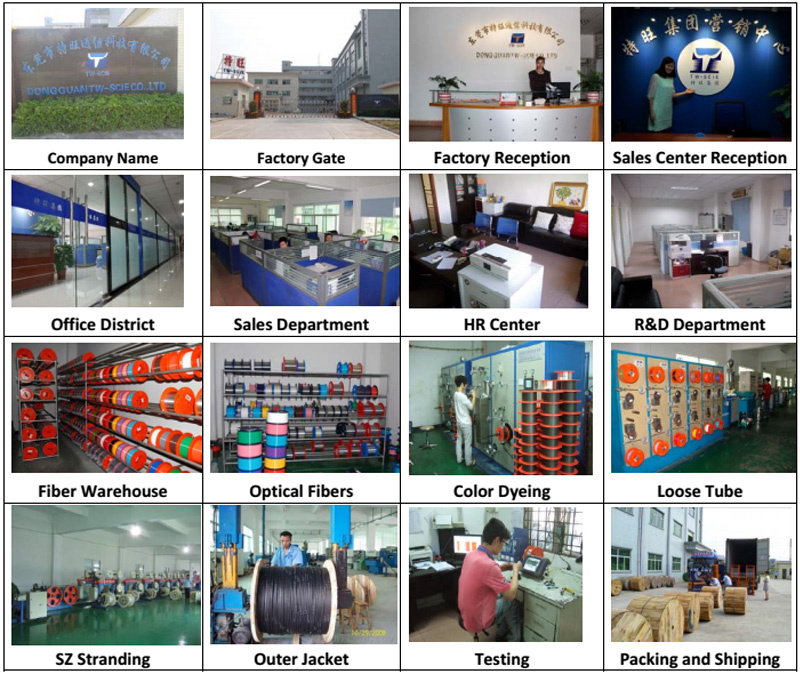

Our Company:DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
Certificates:
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 10 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 10m can be provided freely, but you need pay freight cost.
Q4: How to do if don't need your company brand name?A5: We have own factory,OEM is available;If need other brand name,please give us letter of authorization.

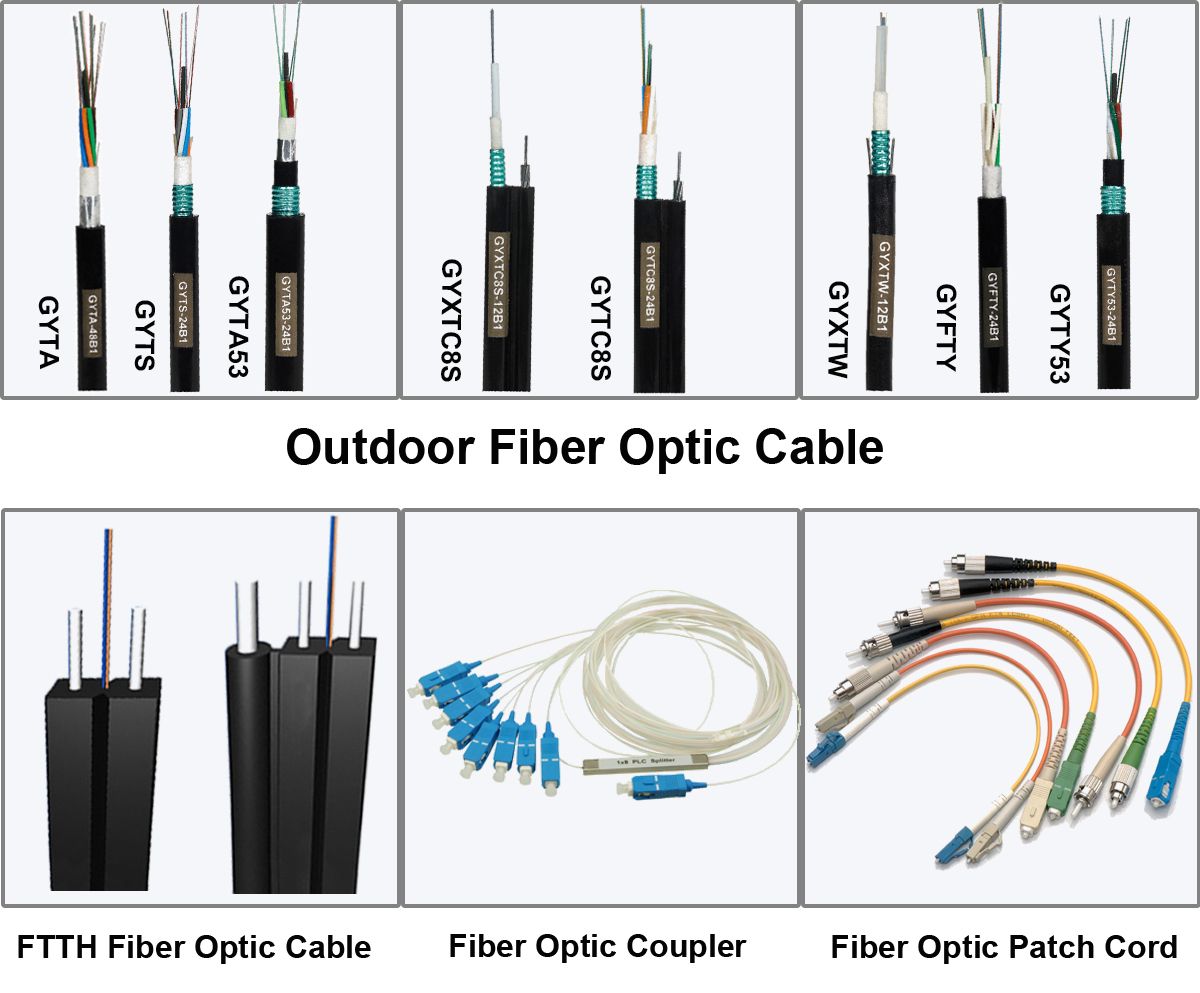

More Products:
