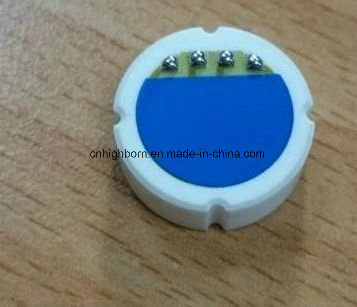

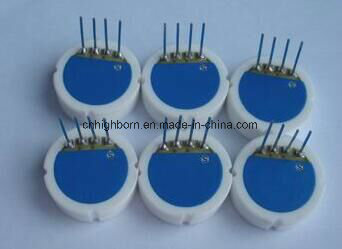

0-10 Bar Alumina Ceramic Pressure Sensor

Name: 0-10 Bar Alumina Ceramic Pressure Sensor
Brand: all-electronics-online.com
SKU: 776615765
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 0.2-0.8/Piece
Trade Terms:	FOB,CFR,CIP
Min Order:	40/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

ceramic pressure sensor

Description:
The sensors of the serie AP681 are piezoresistive pressure sensors based on ceramic. The measuring bridge is printed directly on one side of the ceramic diaphragm by means of thick film technology. The rear part of the diaphragm can be exposed directly to the medium to be measured. Because of the excellent chemical resistance no additional protection is normally required.

Specifications:
1) range: 2-600BAR
2) supply voltage: 3-20VDC
3) Zero point (tolerance): ± 0.2 mV/V @ 25°C; ± 0.1 mV/V (optional / Option
4) output: 2.0-4.8mV/V
5) operating temperature: -40 ~ 125°C

Features:
Compensated sensor
Customer specific design
Wide temperature range
Easy mounting
High linearity

Property		Unit	92% Alumina Ceramic	95% Alumina Ceramic	99% Alumina Ceramic
Density		g/cm3	≥3.63	≥3.68	≥3.83
Water absorption		%	O	O	O
Sintering temperature		°C	1500-1700	1600-1800	1700-1800
Hardness		HV	≥1400	≥1500	≥1650
Flexural strength		Kgf/cm2	3000	3000	3000
Compressive strength		Kgf/cm2	24000	25000	26000
Fracture toughness		Map.m3/2	3~4	3~4	4~5
Maximum temperature		°C	1600	1700	1800
Coefficient of thermal expansion		/°C	8*10-6	8*10-6	8*10-6
Heat shock		T(°C)	220	220	220
Thermal conductivity		W/m.k(25-300°C)	25 14	25 14	25 14
	20°C		>1012	>1012	>1012

Prod Model:	HB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	3.9g/cm3
Color:	White or Ivory
Machining:	CNC
Mileage:	0-600bar

HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.

HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic, and laser industries.

Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.

Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.
