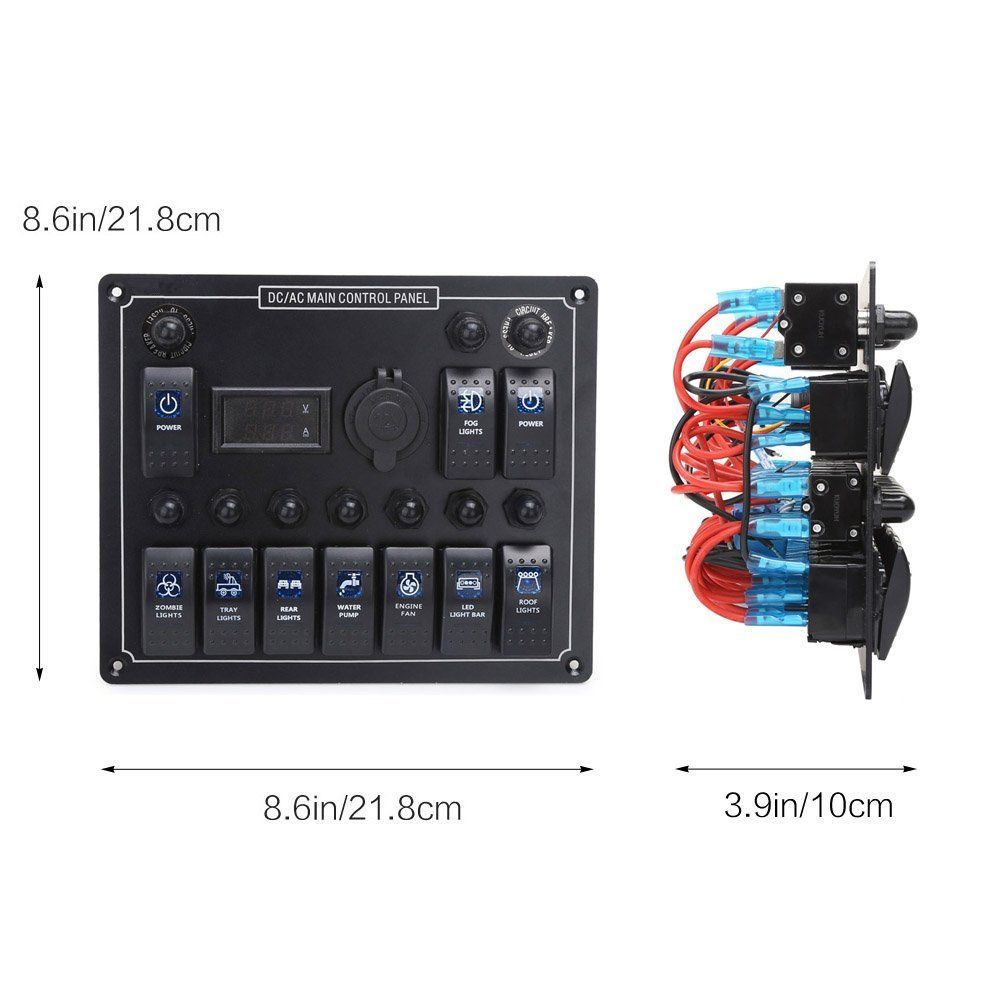

10 Gang Car Boat Marine Rocker Switch Panel Headlight Refitted Fog Lamp Switch Digital Current Voltage Meter

Features:
Environmental flameresistant material, super high-end cars boats refitted switch with LED indicator light.
With output short circuit protection, overload protection, reverse polarity protection, and multiple protection, more safer to use.
Dual power supply control, half control DC12-24V, half control 110-230V.
The switch panel comes with cigarette lighter socket, fits any equipment with DC15A output, with USB charger(5V 2.1A and  5V 1A output), applicable to all mobile phone charging, also with 5V-30V voltmeter to monitor your battery voltage at any time.
Designed for control all car devices for open or close, fits for all 12/24V electromobile, such as automobiles, motorcycles, buses, ships, rv, boat, trailer vehicles, etc.

Panel Specifications:
Material: Aluminum Plate, water transfer printing surface processing
Switch Qty: 10PCS
Others: Cigarette lighter socket,volt-ammeter IPCS

Switch Specifications:
Material:PA66+G15  UL94-V0
RATING:12V  12A     24V  6A  +   230V    16(8)A
Electrical Life: Mechanical life IE5, Load Life IE4
Salt spray test: 5% NACL , Solution Concentration: 8H MIN
Drop test: 1.5M,3 times drop, the switch with no loss of performance
Operating force: 300g--700g.N
Others: Contact impedance measurement< 100 milliohm

Female Cigarette lighter Specifications:
Material: A66+G15 UL94-V0
Durability: 6000 MIN
Insertion and extraction force: 400g-800g.N
Current parameter: 15A MAX

Volt-ammeter Specifications:
Material: PA66+G15 UL94-V0
Voltage range: 5V-100V
Current range: 0-100A

Package Included:
1x 10 Gang Rocker Switch Panel
4x Screws
1x Installation Diagram

Product Details:
