Prod Model: |
NOD17110201 |
Structure: |

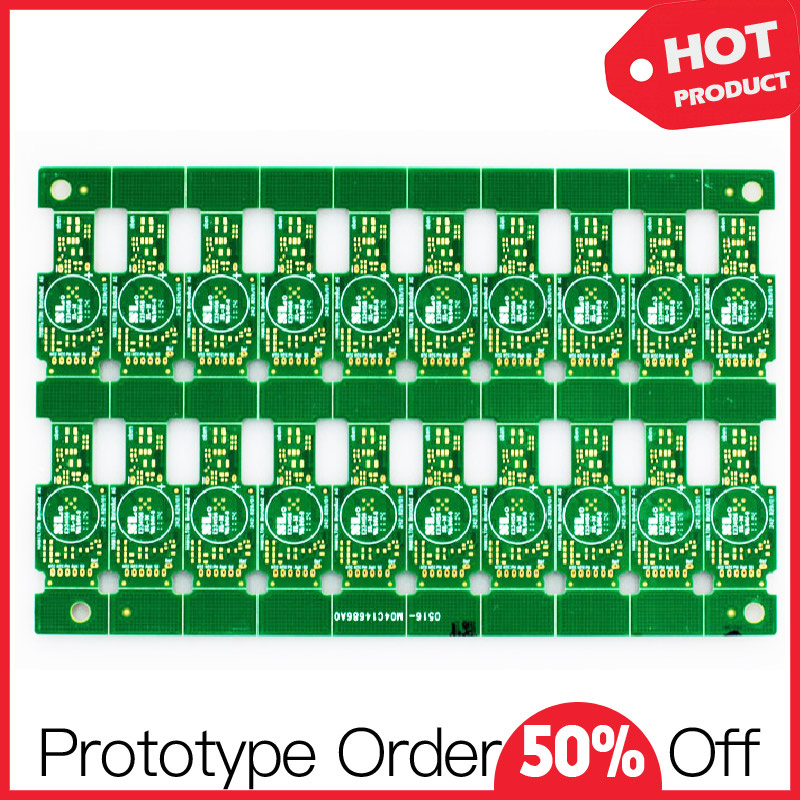

Double-Sided Rigid PCB |
Material: |
Polyester Glass Fiber Mat Laminate |
Production Process: |
Subtractive Process |
Product Description
You need an authentic specialist of rigid PCB maker!
NOD Electronics strives to be your rigid PCB manufacturer, including multilayer PCB design, fabrication and PCB assembly(PCBA). Our responsive team will offer you rigid PCB manufacturing and assembly services with a range of process control, refined and strict PCB work-flow and quality commitment.
Rigid PCB Manufacturing CapabilitiesTotal Pad Size | Standard | Advanced |
Capture Pad | Drill + 0.008 | Drill + 0.006 |
Landing Pad | Drill + 0.008 | Drill + 0.006 |
BC Mechanical Drill (Type III) | 0.008 | 0.006 |
Laser Drill Size | 0.004-0.010 | 0.0025 |
Material Thickness | 0.0035 | 0.0025 |
Stacked Via | Yes | Yes |
Type I Capabilities single & Double Deep | Yes | Yes |
Type II Capabilities Buried Vias with Microvias | Yes | Yes |
Type III Capabilities | Yes | Yes |
Copper Filled Microvia | Yes | Yes |
Smallest Copper Filled Microvia | 0.004 | 0.0025 |
Copper Filled Microvia Aspect Ratio | 0.75:1 | 1:01 |
Smallest Laser Microvia Hole Size | 0.004 | 0.0025 |
Laser Via Aspect Ratio (Depth:Diameter) | 0.75:1 | 1:01 |

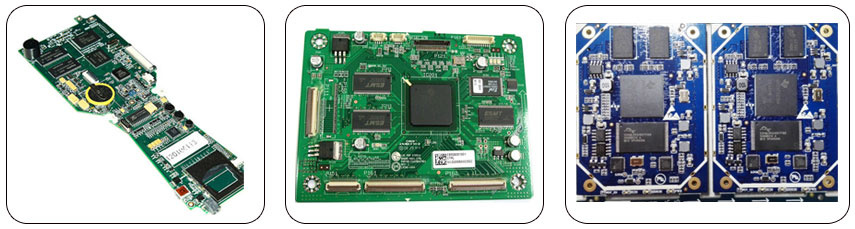

Rigid PCB Assembly CapabilitiesIf bare PCB is bone, PCB assembly is flesh and blood. PCB assembly highly determines the total quality of PCBA funtions. Our sophisticated engineers excute SOPs and weekly training to ensure the manufacturing processes. Advanced SMT lines can catch up with your demand of high-precision soldering, such as 0201, 0.25mm BGAs, PQFP, PLCC, SOP, SOJ etc. Now we have 7 SMT assembly lines, 4 DIP lines and 3 box build lines.Turn Times | Selected Volume | Selected Solder Types |
Same day through four weeks turns | No minimum order quantity | Leaded |
Scheduled deliveries | Engineering prototypes | Lead-free/RoHS compliant |
| Low cost first article builds | No-clean process available |
Parts Procurement | Selected Stencils | Selected Ball Grid Arrays (BGA) |
Turnkey | Laser cut stainless steel | As small as .5mm pitch |
Kitted/Consigned | Nano-coating available | All BGA placements are x-ray inspected |
Partial Turnkey | | |
Assembly Types | Selected Component Types | Selected Other Capabilities |
Surface Mount (SMT) | As small as 0402 package | Pitch components as small as 15 mil |
Thru-hole | As small as 0201 with design review | Repair/Rework services |
Mixed Technology (SMT/Thru-hole) | | Mechanical Assembly |
Single or double sided placement | | Box Build/Electromechanical Assembly |
| | Sub-assemblies |
We are offering rigid PCB manufacturing and assembly services to following big customers all over the world.
Frequently Asked Questions (FAQs)How we ensure the quality of circuit board manufacturing and assembly?We choose top sheet suppliers to ensure stable performance (general FR-4). During the manufacturing process, automatic copper plating lines and high-speed drilling machines (brand:TMAX) to make accuracy and fast delivery guaranteed. All printed circuit board will be detected by advanced automatic flying probe machines (or test frame ) at subsequent stages to make sure each PCB is OK from inner circuits to outside shape. How long will you get our quotation of PCB manufacturing and assembly?In general, PCB sample is delivered in 24~72 hours (urgent order less than 24 hours). Volume production can be completed in 7 working days. If for subsequent PCB assembly and test requirements, the lead time could be less than 15 days. What kind of files you have to send us to get quotation?You have to send us PCB design files (gerbers or .pcb acceptable), Bill of Materials (BOM), Quantities to make quote and other technical requirements (.step/.txt/.xls files acceptable) What payment methods we can support?We accept T/T, L/C, West Union as payment methods. For prototype order, you have to make 100% payment in advance, but for mass production 70% payment in advance and 30% payment before delivery. What measures we take to avoid counterfeit components?Procurement only from manufacturer or big general agentOriginal quality certificate of component can be issued (if necessary) Inspections of shape, silkscreen and conductivity attributes in incoming quality controlStrong responsibilities and perspectives of long-term relationship What measures we take to protect clients IP and confidentiality?Sign NDA (Non-disclosure Agreement)Using number code in stead of client name during manufacturing processSeparate assembly workshop and taking photo is NOT allowedDocuments of engineering process are archived and reserved
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
