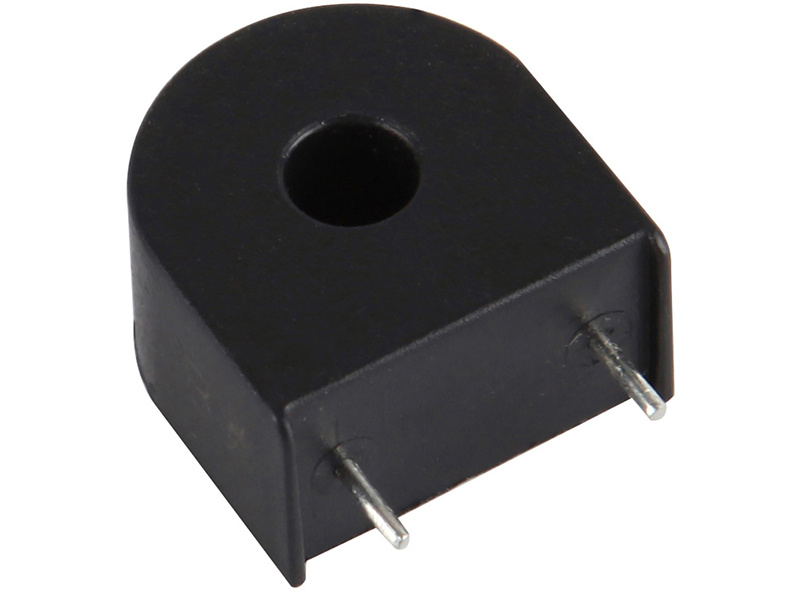

1000: 1 10A 50ohm 5mm Hole PCB Mounting Current Transformer
| Price: |
US $ 0.176-0.205pcs |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100pcs |
| Pay Type: |
T/T,Western Union |
ZMCT103C Current TransformerSmall size,high accuracy,good consistency,for current and power measurement Structural parameters:

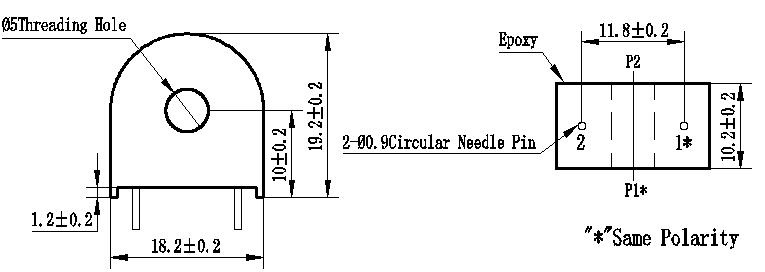

Remarks: primary input: straight- through type( make the measured circuit be through the hole)1,2pin :secondary output Front view Bottom viewThe main technical parameters:
| model | ZMCT103C |
| Rated input current | 0-10A(50Ω) |
| turns ratio | 1000:1 |
| phase angle error | ≤15'
(input 5A,sampling resistor 50Ω) |
| Current range | 0~10A(sampling resistor 50Ω) |
| linearity | ≤0.2%(5%dot~120%dot) |
| Permissible error | -0.2%≤f≤+0.2%
(input 5A,sampling resistor50Ω) |
| isolation voltage | 4500V |
| application | Precise measurement of current and power |
| Encapsulation | Epoxy |
| installation | PCB mounting(Pin Length>3mm) |
| operating temperature | -40ºC~+85ºC |
Direction for use:

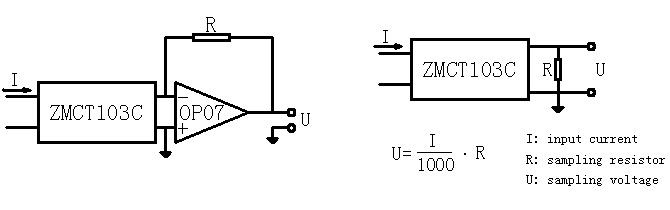

Figure I Figure II 1. The typical usage of the product is for the active output (Figure I). R is a sampling resistor2. The product can be directly through the resistance sampling, easy to use (Figure II).
| Prod Model: |
ZMCT103C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| N.W: |
5.75g |
| Inner Hole Size: |
5mm |
| Turns Ratio: |
1000:1 |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
PCB Mounting |
