1.PV Electricity Generation Instruction
Solar PV electricity generation system is formed by lots of PV connection in series,and they form PV array by parallel installation,meantime,the current generated by lots of PV array is concentrated in PV inverter from the PV junctions box,PV inverter turn DC to AC so as to connect with utility grid or to be used in home appliances.
2.Application
T his series fuse is suitable for solar pv power generation system, rated voltage to 1500V, rated current to 630A,used in pv power generation equipment as a pv module string and pv array for over current protection,and pv panels and batteries connected in series and parallel,to charge variable flow system for short circuit breaking protection,in pv station and inverter rectifier system for short-circuit breaking protection,as well as pv power eneration system,inrush and short circuit fault voltage for quick break protection,rated breaking capacity to 10-50KA,products confirms to IEC60629.1 and 60629.6.
3.Normal operating conditions
The around temperature max value ca nup to 90ºC,min limit value up to -40ºC,the installation altitude is not over 2000m(our company can customize based on your special requirement.
4.Use category
"gPV" means the full range DC breaking protection on solar photovoltaic power generation system.
5.Structural fratures
Fuse link is made of pure silver(or silver strings),welding low tin and encapsulated in the melt tbe made of high-strength porcelain, the fuse tube filled with high-purity quartz sand chemically processed as the arc medium.Fuse body is connected with contacting terminals by spot welding fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces,the connection made by riveting as the support of the appropriate size fuse body parts.This series fuse has a compact and convenient device,use security,beautiful appearance,etc.
6.DC fuse Technical Date:
| Item | DC FUSE |
| Code | ZTPV-32 |
| Name | FUSE | FUSE HOLDER |
| Pole | 1P | 1P |
| Voltage | ≤1000VDC |
| Current | 1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A |
| Giggest block ability(KA) | 33KA |
| Standard | IEC/EN60269 |
| Commection(mm) | 2.5-10 |
| Power consumption(W) | 3.5 |
| Working Temperature | "-5°"to +40° |
| Protection Degree | IP20 |

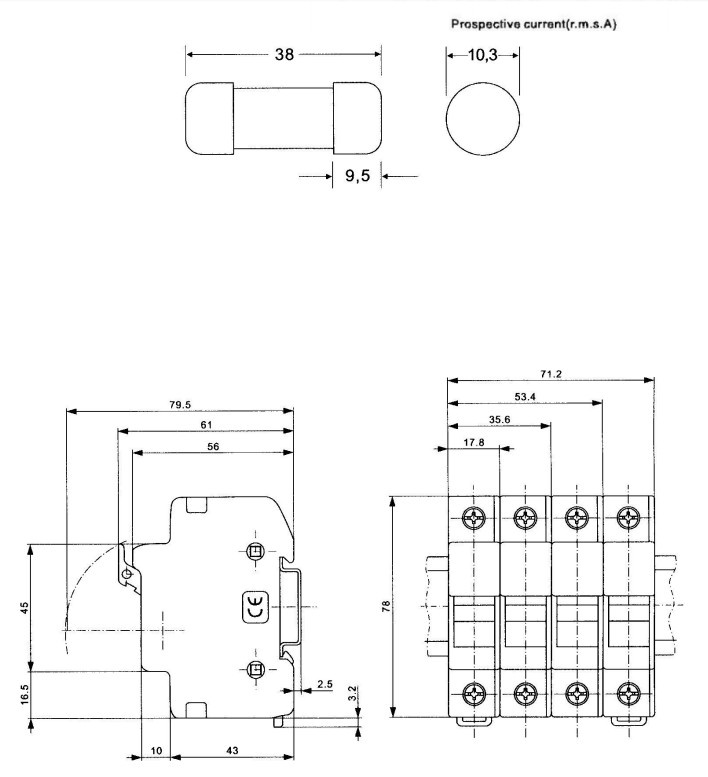

| Dimension(W)X(H)X(D) | 10X38 | 18X60X78 |
| Installation | 35MM DIN RAIL |
| Installation Altitude | ≤2000M |
