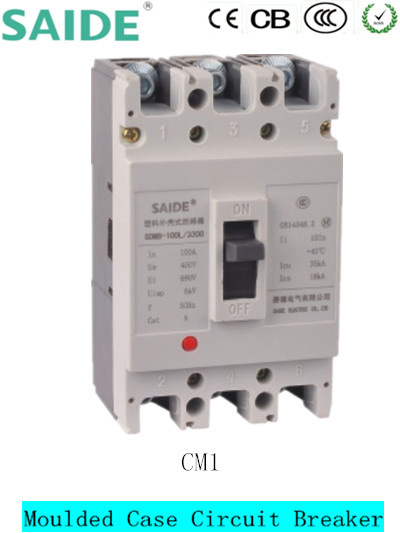

100A Cm1 MCCB 3p 4 Pole

Name: 100A Cm1 MCCB 3p 4 Pole
Brand: all-electronics-online.com
SKU: 818846065
Availability: InStock
Rating: 5 (32 reviews)

Price:	US $ 18-20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SDM8
Color:	Black,White
Functional:	Overload, Short-Circuit, Undervoltage
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

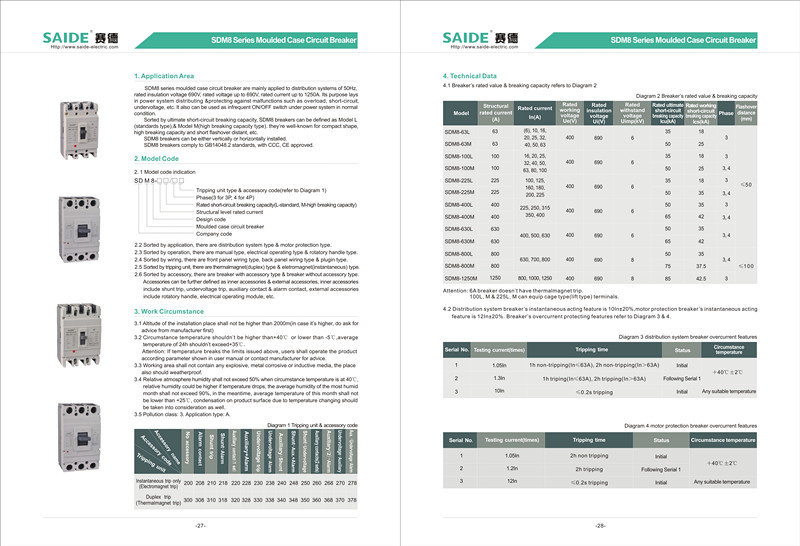

SDM8 series moulded case circuit breaker is mainly applied to distribution systems of 50/60Hz, rated voltage upto 690V, rated current upto 1250A. Its purpose lays in power system distributing & protecting against malfunctions such as overload, short-circuit, undervoltage, etc.

SDM8 breakers comply to GB14048.2 standards, with CCC, CE approved.

Rated current In(A)	Rated working voltage Ue(V)	Rated insulation voltage Ui(V)	Rated withstand voltage Uimp(kV)	Rated Ultimate short-circuit breaking capacity Icu (kA)	Rated working short -circuit breaking capacity Ics(kA)	Phase	Flashover distance (mm)

(6),10,16,20,25,32,40,50,63	400	690	6	35	18	3	≤50
				50	25
16,20,25,32,40,50,,63,80,100	400	690	6	35	18	3
				50	25	3,4
100,125,160,180,200,225	400	690	6	35	18	3
				50	35	3,4
225,250,315,350,400	400	690	6	50	35	3
				65	42	3,4
400,500,630	400	690	6	50	35	3
				65	42	3,4
630,700,800	400	690	8	50	35	3,4	≤100
				75	37.5
80,010,001,250	400	690	8	85	42.5	3

Our catalog

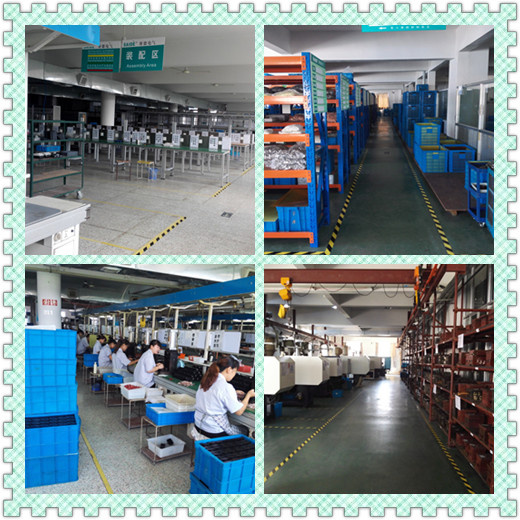

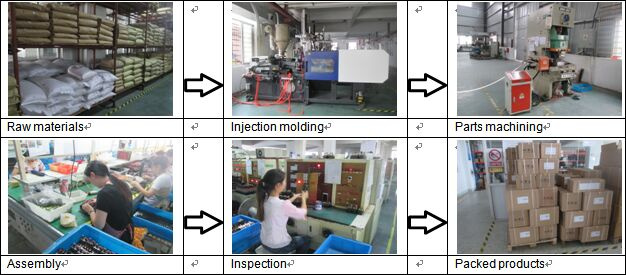

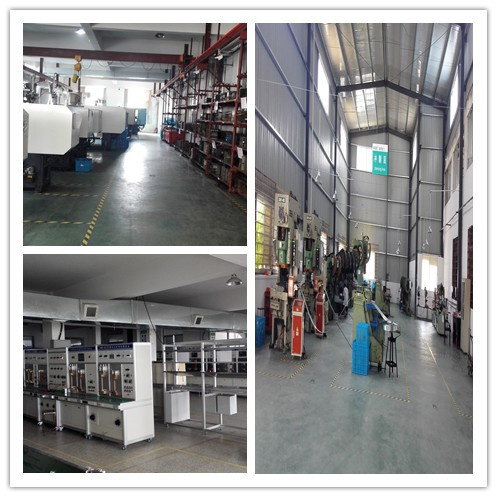

About our factory

Our information

CHINA * SAIDE ELECTRIC CO.,LTD

Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China

Tel:0086-577-62755267

Phone:18657700751

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
