100A Industrial Class Solid State Relay, SSR Relay 100A, DC/AC SSR

100A Industrial Class Solid State Relay, SSR Relay 100A, DC/AC SSR
Price: US $ 15.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union


Introduction:
Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

 DC-AC Industrial Class Solid State Relay SSR

1) Technical data:
ModelSYDM10048ZD3
Load current100A
Load voltage480VAC
Control voltage3-32VDC
Control currentDC3-25mA
On state voltage drop≤1.5VAC
On state leakage current≤2mA
Off state time≤10mS
Dielectric strength2500VAC
Insulation resistance1000MΩ500VDC
Ambient temperature-30°c ~ +75°c
Mounting methodbolting
IndicatorLED
Weight  130g

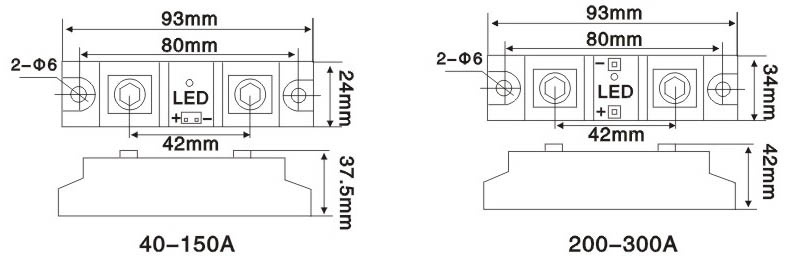

2) Dimensions:


4) Matched heatsink & fan:

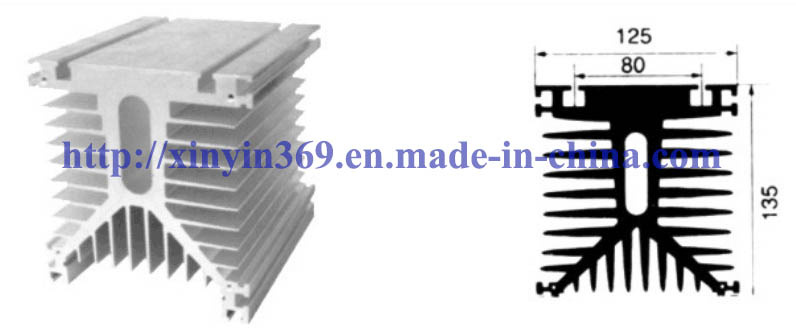

Heatsink Y-shape

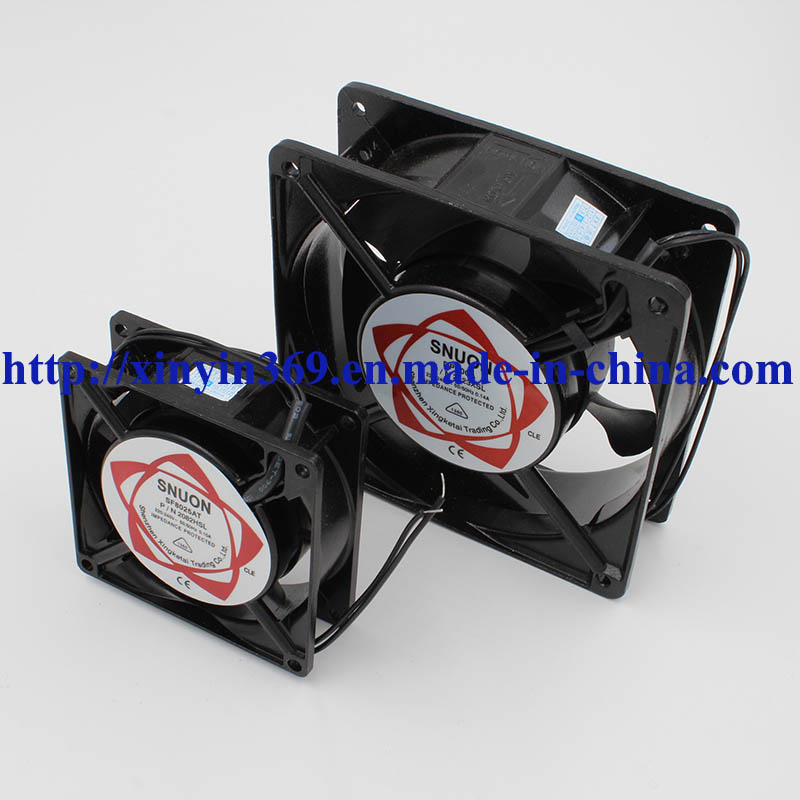

Fan










Prod Model: SYDM10048ZD3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Current: 100A
Load Voltage: 30-480VAC
Control Voltage: 3-32VDC
