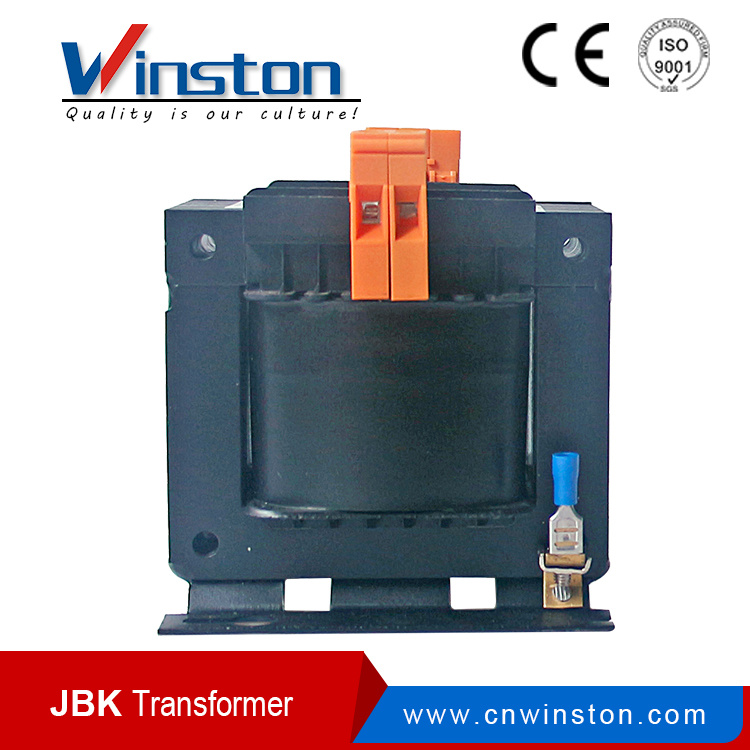

100va Step Down Transformer Single Phase for Electrical Appliance (JBK5-100)
| Price: |
US $ 10.4-11.96/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
100VA Step Down Transformer Single Phase For Electrical Appliance (JBK5-100)JBK5 transformers apply to be used as control power supply of mechanical equipments and electrical&electronic appliance,or as mains power supply of working light and signal light,in single-phase circuit of 50/60Hz,input voltage up to 500V,output voltage up to 250V.Standard capacity is up to 2500VA,customized capacity up to 5000VA.
Features:
Compact size
Less weight
Easy wire connection
Wide application

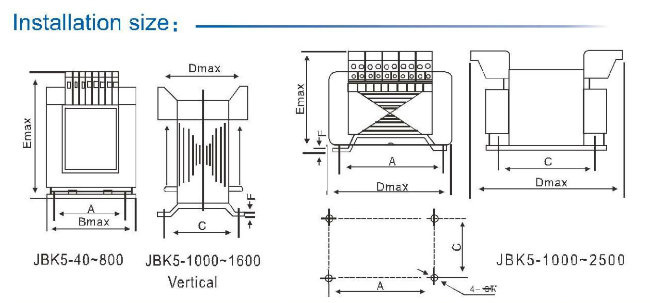

Technical| Type | Power
(VA) | Input
Voltage(V) | Output
Voltage(V) | Overall Size
(B*D*E) (MM) | Installion size
(A*C)(MM) | Mounting Hole
(K*J)(MM) |
| JBK5-40 | 40VA | 12V
24V
36V
48V
110V
127V
220V | 12V
24V 36V
48V
110V
127V
220V | 78*72*90 | 56*46 | 4.6 |
| JBK5-63 | 63VA | 78*72*90 | 56*46 | 4.6 |
| JBK5-100 | 100VA | 85*75*96 | 64*62 | 4.6 |
| JBK5-160 | 160VA | 96*92*105 | 84*73.5 | 5.5 |
| JBK5-250 | 250VA | 96*100*104 | 84*85 | 5.8 |
| JBK5-300 | 300VA | 120*100*110 | 90*85 | 5.8 |
| JBK5-400 | 400VA | 120*100*122 | 90*85 | 7 |
| JBK5-500 | 500VA | 120*120*130 | 90*98 | 7 |
| JBK5-630 | 630VA | 150*110*140 | 122*90 | 7 |
| JBK5-800 | 800VA | 150*128*142 | 122*105 | 7 |
| JBK5-1000a | 1000VA | 150*190*142 | 126*155 | 7 |
| JBK5-1000b | 1000VA | 168*125*155 | 105*138 | 9 |
| JBK5-1600a | 1600VA | 170*225*155 | 140*176 | 7 |
| JBK5-1600b | 1600VA | 168*138*155 | 116*138 | 9 |
| JBK5-2000 | 2000VA | 190*160*160 | 172*195 | 7 |
| JBK5-2500 | 2500VA | 194*160*165 | 172*195 | 7 |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
Our Services| 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: Manufacture company, each of the products is tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty. |
Trade Information| Trade Terms | FOB,CIF,CFR,EXW |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Prod Model: |
JBK5-100 |
| Product Name: |
Transformer |
| Power: |
100va |
| Use: |
Machine Tool |
| Input Voltage: |
24V/110V/380VAC/220VAC |
| Output Voltage: |
AC220V/110V/48V/36V/24V/12V |
| Overall Size: |
85*75*96mm |
| Installion Size: |
64*62mm |
| Mounting Hole: |
4.6mm |
| Safety Standard: |
En61558 |
| Warranty: |
1 Year |
| Application: |
Lighting |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Winston |
