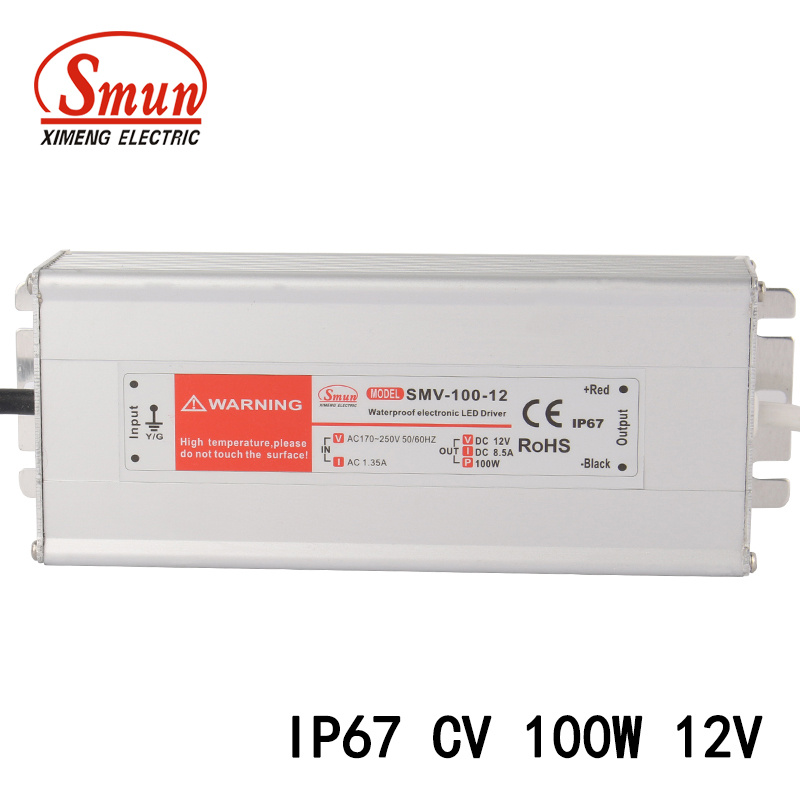

100W 12V 8A Constant Voltage Waterproof LED Switching Power Supply
Price: |
US $ 10-14/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
100W LED driver power supply waterproof 12V 15V 24V 48V IP67 SMV-100Our service
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real facture and have professional engineer team,can provide custom and OEM service.
5.We have independent IMP&EMP rights.
6.Sample available.Hope to hear from you soonWarmly welcome to visit our company.We also supply these LED driver waterproof switching power supply | LED Driver water-proof SPS IP67 | |
Model No. | Power | DC Output Current(A)x | size |
| W | 5V | 12V | 15V | 24V | 36V | 48V | mm |
SMV-10-x | 10 | | 0-0.85A | 0-0.67A | 0-0.42A | | | 135*28*20 |
SMV-20-x | 20 | | 0-2A | 0-1.3A | 0-0.8A | | | 180*28*20 |
SMV-30-x | 30 | | 0-2.5A | 0-2A | 1.2A | | 0-0.6A | 222*28*20 |
SMV-50-x | 50 | | 0-4.2A | 3.3A | 2.0A | | 1A | 190*48*34 |
SMV-60-x | 60 | | 0-5A | 0-4A | 0-2.5A | | 10-1.25A | 178*68*43 |
SMV-75-x | 75 | | 0-6.25A | 0-5A | 0-3.2A | | 0-1.6A | 178*68*43 |
SMV-100-x | 100 | | 0-8.5A | 0-6.6A | 0-4.2A | | 0-2.1A | 200*68*43 |
SMV-150-x | 150 | | 0-12.5A | 0-10A | 0-6.25A | | 0-3.1A | 222*68*43 |
SMV-200-x | 200 | | 0-16.7A | 0-13.3A | 0-8.3A | | 0-4.1A | 222*68*43 |
SMV-250-x | 250 | | 0-20.8A | 0-16.6A | 0-10.4A | | 0-5.2A | 235*120*55 |
Prod Model: |
SMV-100-12 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
100W |
Input Voltage: |
170~264VAC 47~63Hz |
Input Current: |
1.2A/230V |
Output: |
12V, 0~8.5A |
Weight: |
1.37kg |
Working Temperature: |
-25~50 Degree C |
Waterproof Level: |
IP67 |
Safety Standard: |
En60950 UL60950 GB4943 |
Size: |
200*68*43mm |
Customized: |
Available |
Usage: |
Vehicle |
Output Type: |
Single |
Driving Method: |
LED Regulator Voltage |
Circuit Structure: |
PWM Controlled |
Pack Sealing Size: |
200*68*43mm |
Brand: |
Smun |
