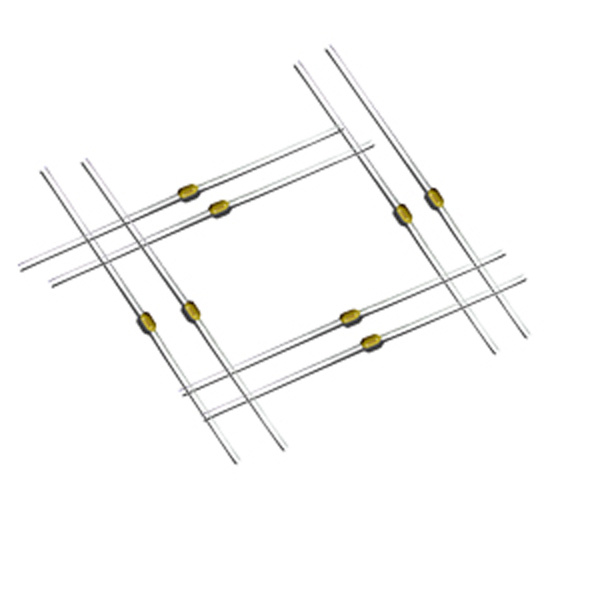

104 Axial Multilayer Ceramic Capacitor
| Price: |
US $ 0.0016/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10000/Piece |
| Pay Type: |
T/T,Western Union |
Characteristics
1. Wide cpacitance;
2. Industry standard sizes;
3. Tape and Reel available for auto placement;
4. Various lead spacing available.
General Specification
NPO
Capacitance Range: 0R5 - 104
Temperature Coefficient: 0+-30PPm/'C;
0+-60PPm/'C(-55'C to +125'C)
Insulation Resistance: C<=10nF R>=10000MQC>=10nF C. R>=100S
With Standing Voltage: 2.5 times of working voltage
Dissipation Factor: 0.15%max(20'C, 1MHz, 1VDC)
Rated Voltage: 25, 50, 63, 100VDC
Capacitance Tolerance: B=+-0.1PF C=+-0.25PF D=+-0.5PF
F=+-1%G=+-2% J=+-5%K=+-10% M=+-20%
Life Test: 200% rated voltage at +125'C 1000h
Solderability: SJ/10211-91 4.11
Resistance to Soldering Heat: SJ/T10211-91 4.10
Mechanical Test: SJ/ T10211-91 4.9
Temperature Cycling: SJ/ T10211-91 4.12
Moisture Resistance: SJ/ T10211-91 4.14
Termination Adhesion Strength: SJ/ T10211-91 4.9
Environment Testing: SJ/ T10211-91 4.13
More details pls ask for datasheets!
| ITEM | TEST STANDARD |
| NPO(N) | X7R(B) | Y5U,Y5V(Y) |
| Capacitance | WITHIN THE TOLERANCE | WITHIN THE TOLERANCE | WITHIN THE TOLERANCE |
| Dissipation Factor |
≤0.15% |
≤3.5% |
≤7%(less than 220nF)
≤10%(220~470nF)
≤15%(470~1000nF) |
| Insulation Resistance | C≤10NF IR>10000MΩ
C>10NF R .C>100S | C≤25NF IR>4000MΩ
C>25 NF R.C>100S |
Voltage Test | Test voltage:2.5.rated voltage
The charging current may not exceed 50 mA. Duration of test:5 seconds |
| TEST CONDITION |
| FREQUENCY | 1M HZ
(C>1000PF,1KHZ) | 1KHZ |
| TEST VOLTAGE | 1VDC | 0.5 VDC |
| TEST VOLTAGE OF IR | The measuring voltage is equal to the rated voltage.
The charging current may not exceed 50 mA |
| Standard atmospheres conditions | Unless otherwise specified, the standard range of atmospheric conditions for measuring and testing is as follows:
Ambient temperature 15°C~35 °C
Relative humidity 45%~75%
Air pressure 86Kpa~106Kpa (860-1060mbar)
If there may be any doubt on the results, measurements shall be made within the following limits:
Ambient temperature 25°C±1 °C
Relative humidity 48%~52%
Air pressure 86Kpa~106Kpa (860-1060mbar) |
| Operating temperature range | The operating temperature range is the range of ambient temperatures at which the capacitor can be operated continuously at rated voltage.
Temperature compensation use:
NPO -55°C~+125°C
X7R -55°C~+125°C |
| Prod Model: |
TMCC04 |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Eastern Asia,Western Europe |
| Description: |
Axial Type Multilayer Ceramic Capacitor |
| Color: |
Yellow |
| Type: |
Multi-Layer Ceramic Capacitor |
| Application: |
Fan |
| Package Type: |
Axial Type |
| Capacitance: |
0.1UF |
| Structure: |
Axial Type |
| Filter: |
Ceramic Capacitor |
