10A Current Transformer for Energy Meter (NRC06)

10A Current Transformer for Energy Meter (NRC06)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 40/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

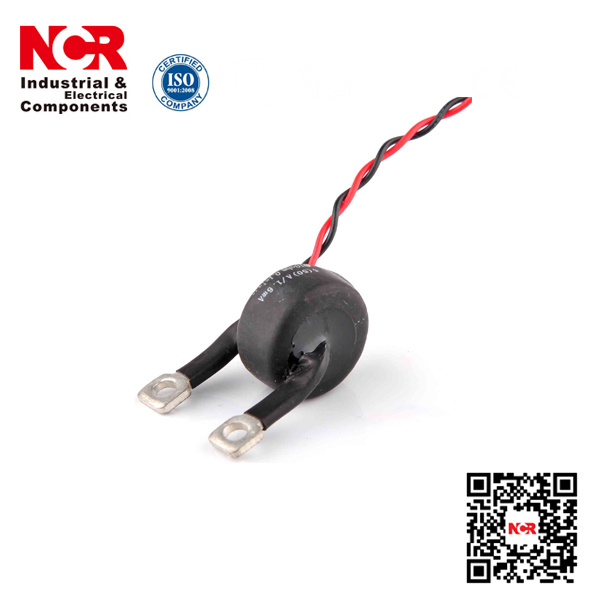

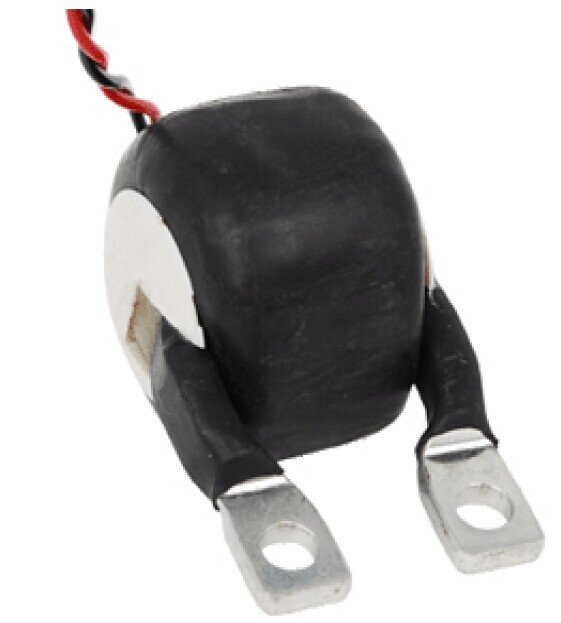

10A Current Transformer for Energy meter (NRC06)




Used for a current sensing device for utility energy meter.
Moisture-proof and vibration-resistant.
Encapsulation by epoxy resin, with high insulation ability.
Casing by flame retardant PBT.
DC-tolerance version available (IEC62053-21 standard).

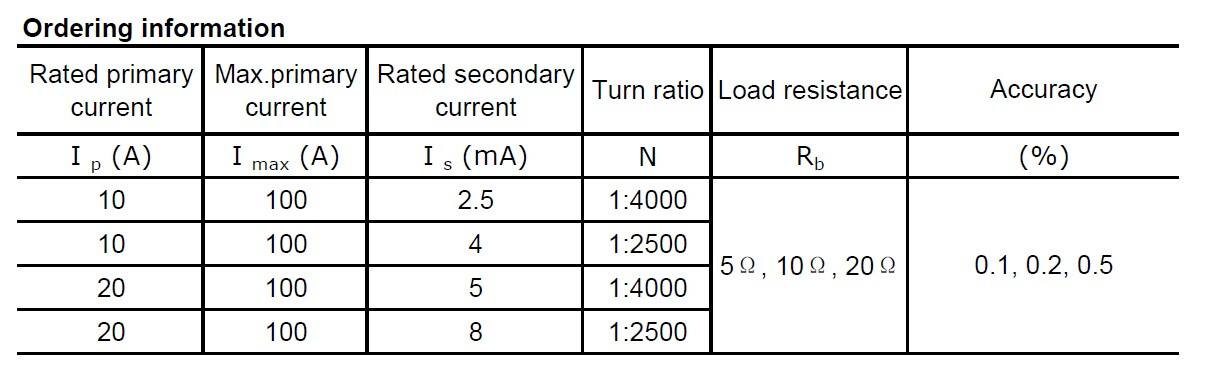

CharacteristicsValues
Operating frequency50/60Hz
Operating temperature-25  º C ~ 75  º C
Relative humidity80% ~ 90%
Rated primary current     I p10 or 20A
Maximum primary operating current I max100A
Rated secondary current I sWhen I p =10A, I s =4mA
When I p =20A, I s =8mA

Turn ratio N1: 2500
Testing current for DC component I test
I max /
Burden resistor R b5 Ω , 10 Ω , 20 Ω
Accurate operating current range5% I p ~ I max
Accuracy class  0.2%
Insulation intensity under power frequencyWithout damage by 4000V for 1 min.
Insulation resistance> 50M Ω
Prod Model: NRC06
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy: 0.1%, 0.2%, 0.5%
Working Temperature: +25~75
Relative Humidity: 80%~90%
Type: Current Transformer
NCR Industrial:

A) P. C. B Relays for household appliance industry

B) Latching Relays/Shunts/C. T. For Energy meter industry

C) Eletricity Measuring Meters

With professional manufacturing and reliable design concept, NCR is supplying superior Latching Relay, Shunt and Current Transformer to worldwide meter producers.

With decades of manufacturing experience, we are now enjoying a high reputation in the metering field worldwide. Our product range include Latching Relay and Shunt/Current Transformer used for 60-200A single & three phase energy meter. We have over 10000sqm production facilities, several automatic and semi-automatic production lines. With strong R&D capability, we are offering our clients one-step customized solutions and service.

Based on ISO9000 quality standard, we have set up strict IQC, IPQC and FQC system in our manufacturing, to ensure quality meeting IEC62055-31 standard and customer's requirements.

We'll always keep the spirit "offering the best products and outstanding service", to go along with all our clients together. By continuous steps, NCR is efforting to offer better products and more professional solutions to our users.

"Nice, Content, Reliable. It's NCR. "
