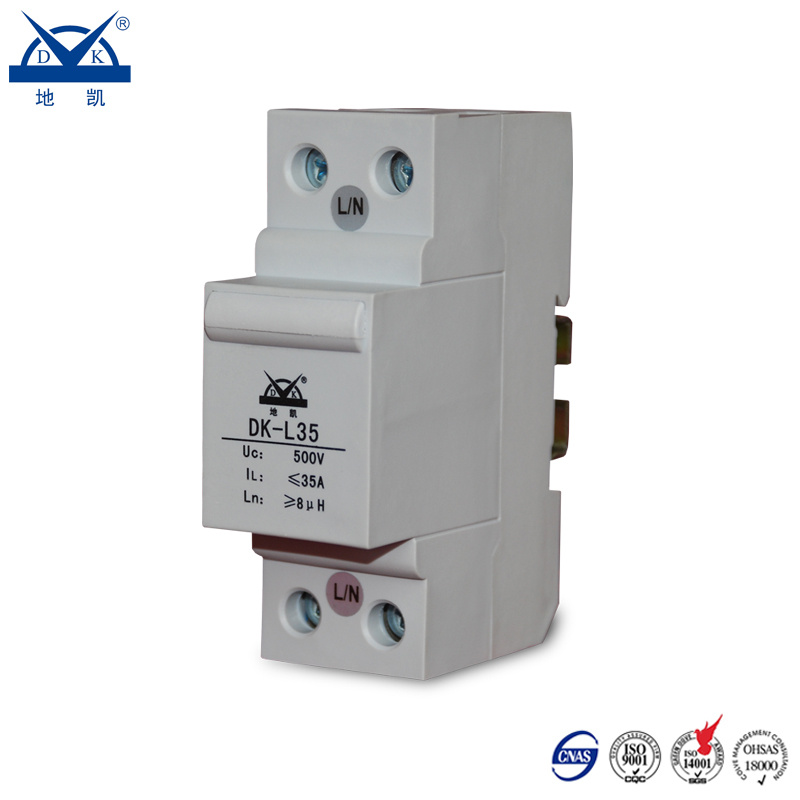

10A to 63A Surge Protection Module Decoupling Inductor
| Price: |
US $ 19-25/Piece |
| Trade Terms: |
by Express DHL or FedEx |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Description
When the installation distance can't meet the requirement(more than 5 meters or 10 meters) between the two-stage of surge protective devices(SPD), the Module Decoupling Inductor should be installed between the two-stage of surge protective devices(SPD), which makes the decoupling, partial pressure, increase the line inductance. With two levels of surge protector action and energy release, so as to achieve the effect of safety.
Charactor
1. Standard Modular 35mm DIN Electric Lead Rail Installation.
2. Working Currents 10A-63A.Technical Parameter| Type | DK-L10 | DK-L32 | DK-L63 |
| Housing Material | PC |
| Housing Anti-flame Class | UL94-V0 |
| Housing Protection Level | IP20 |
| Color | Grey |
| Installation Standard | 35mm DIN Electric Lead Rail |
| Quantity of Connecting Terminal | 2 PIN |
| Working Temperature | -45 to +85 Degree Celsius |
| Relative Humidity | < 95% |
| Dimension | 36X90X62mm |
| Weight | 0.23kg | 0.25kg | 0.27kg |
| Max Continuous Working Voltage | 500V AC |
| Rated Working Frequency | 50Hz(60Hz) |
| Rated Working Currents | 10AgL/gG | 32AgL/gG | 63AgL/gG |
| Inductance Coefficient | 8uH± 20% |
| Test Standard | EN60950: 1955-10 |
| L(N) Connecting Terminal Type | Screw Stationery Terminal |
| Screw Standard | M5 |
| Min Sectional Face Area of Connecting Wire | BVR-16 square mm |
| Max Sectional Face Area of Connecting Wire | BVR-50 square mm |
Applicable Scope
1. 50Hz(60Hz) 220V/380V Power System.
2. Any places that can't meet the requirements of installation distance.About Dikai Company -More than 26 years specialized.
-25,000 square metres industrial park.
-More than 100,000 cases of lightning protection project services.
-Five series lightning protection products, more than 160 items.
-ISO ,OHSAS & CE certificated.
-CNAS National Laboratory.
| Prod Model: |
DK-LM(m) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Housing Material: |
PC |
| Housing Anti-Flame Class: |
UL94-V0 |
| Housing Protection Level: |
IP20 |
| Installation Standard: |
35mm DIN Electric Lead Rail |
| Quantity Of Connecting Terminal: |
2 Pin |
| Dimension: |
36X90X62mm |
| Max Continuous Working Voltage: |
500V AC |
| Rated Working Frequency: |
50Hz(60Hz) |
| Test Standard: |
En60950: 1955-10 |
| Screw Standard: |
Screw Stationery Terminal |
| Type: |
Fixed Inductor |
| Structure: |
Core |
| Brand: |
Dikai |

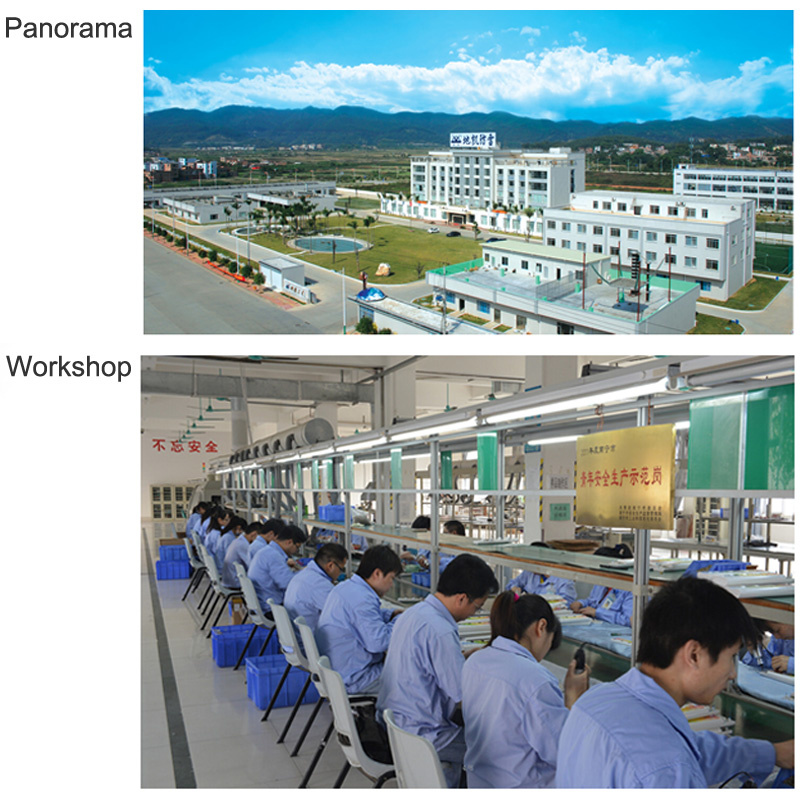

Established in June, 1989, Guangxi Dikai Sci&Tech Co., Ltd. Arouses its all efforts and strives for progress for near 30 years to be the earliest founding and most well-known professional lightning protection company with the most complete lightning protection products and highest lightning protection qualification.
Dikai Company is consist of Guangxi Dikai Sci&Tech Co., Ltd. And Guangxi Dikai Dikai Lightning Protection Engineering Co., Ltd. Guangxi Dikai Sci&Tech Co., Ltd. Concentrates on new technology of lightning protection, research and development on new products, production and service. Guangxi Dikai Dikai Lightning Protection Engineering Co., Ltd. Concentrates on design of lightning protection engineering, construction, inspection and maintenance, technical consulting service. It has provided more than 10 millions cases of lightning protection project design, product installation, inspection and maintenance, technical consulting service to electric power, transportation, communication, security, civil aviation, finance, petroleum and petrochemical, education, radio and television, military, industrial and mineral enterprises, etc. Dikai Company has started business with USA, Malaysia, Indonesia, Philippines, Korea, India, Sri Lanka, Rwanda, Nigeria, Cambodia, Kazakhstan, Bulgaria, and so on.
Dikai Company covers five product series: Direct lightning protection products, power line surge protection products, signal line surge protection products, combined series surge protection products, and grounding resistance reduction products, with more than 100 varieties of products. It is the one top purchasing and service provider of surge & lightning protection products.
