10K 3435 Ntc Thermistor Probe for Air Conditioner HVAC

Name: 10K 3435 Ntc Thermistor Probe for Air Conditioner HVAC
Brand: all-electronics-online.com
SKU: 733040542
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Description:

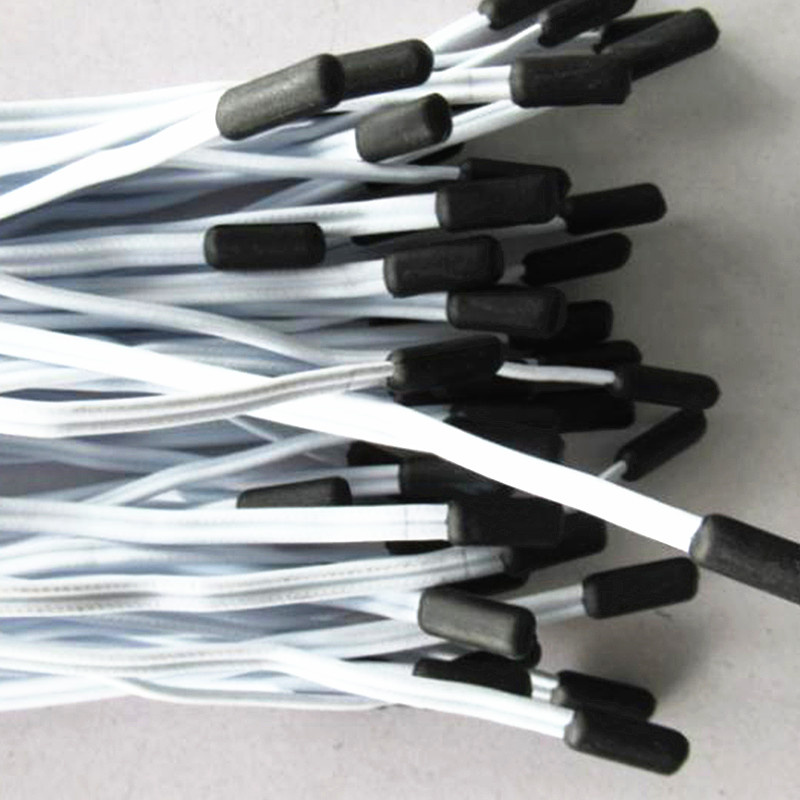

This assembly consists of a NTC thermistor soldered to a single insulated TPE extension cable. The sensor and the extension cable are moulded together as one hot vulcanised unit to give a high degree of protection against water/moisture ingress. Ideal from ambient air sensing in building management applications, heater controls, and air conditioning.

Features:
1. IP68 Rated
2. TPE Overmolded probe with probe head dimensions of Ø5 x 20mm
3. 22-24 AWG Jacket or Zipcord cable
4. Available in a variety of connector types
5. RoHS Compliant

Application:
Building Management Applications
Heater Control
Air Conditioning
Electrical Performances

NO	Item	Sign	Test Conditions	Min.	Normal value	Max.	Unit
1.	Resistance at 25ºC	R25	Ta=25±0.05ºC PT less than 0.1mw	9.9	10	10.1	K
2.	B Value	B25/50		3400.65	3435	3469.35	k
3.	Dissipation factor	σ	Ta=25±0.5ºC	3		/	mw/ºC
4.	Time constant	τ	Ta=25±0.5ºC	/	/	15	sec
5.	Insulation resistance	/	500VDC	100	/	/	MΩ
6.	Withstand voltage test	/	200V AC	3	/	/	Sec
7.	Operating temp.range	/	/	-40	/	+125	ºC

Reliable Test:

1	Temp. cycle test	-20ºC×30min→Room temp.×10min→ in 100ºC water×30min→Room temp.×10min 10 cycles
2	Load electrify test	Power on DC1mA,500hrs in room temp. and humid.
3	Drop test	Free fall into concrete floor from height 1m ,10 cycle.
4	Vibration test	Frequency range:10~55HZ Total amplitude 1.52mm 1 cycle 1 min ,direction and time X,Y,Z axs 2Hr each.
5	Bending test	Bend 180°binding site wire and epoxy resin. Back and forth 10 times
