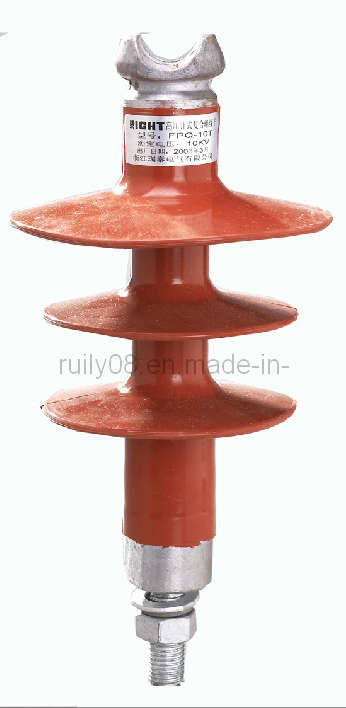

10kv Pin-Type Compostie Insulator (Silicone Rubber) (FPQ-10/4T20)

Name: 10kv Pin-Type Compostie Insulator (Silicone Rubber) (FPQ-10/4T20)
Brand: all-electronics-online.com
SKU: 607346464
Availability: InStock
Rating: 4.4 (134 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Company Introduction:

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Product Introduction:

Pin-type insulator is applied to high voltage power line service.And have features of good gydrophobicity,anti-ageing,anti-leakage trace and electric erode proof,tensile strength and bending strength,strong mechnical strength,shock resistance good quakeproof and brittle failure proof,light weight, easy to installation,and the installation size of top and base are the same size with porcelain type,they can exchange to each other.

Insulator Workshop:

Test equipment:

Main technical parameters:

Model	Rated Voltage (KV)	Rated mechanical Bending load(KN)	Structure height H.(mm)	Insulating distance Li(mm)	Min Creepage distance (mm)	Lightning impluse withstand voltage(peak)(kV)	P.F.withstand voltage (virtual value)(kV)
FPQ-10/4T20	10	4	215	125	280	75	42
FPQ-10/5T20	10	5	250	165	420	105	42
FPQ-24/6	24	6	305	255	715	150	75
FPQ-36/8	36	8	440	320	1000	185	95
FPQ-52/12	52	12	480	415	1255	220	110

Prod Model:	FPQ-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension Tolerance:	Iec61109
Application:	High-voltage
Material:	Composite Polymer
Structure:	Pin Insulator
Brand:	Ruily

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.

And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.

Our company has complete sale, logistic, after-sales service and

Consultation system. Link with honest and credit, quality is first, satisfying

The requirement of cutomers is its own responsibility so as to make enterprise, society, workers harmoniously and uniformly.

"Ruili Electric" set up nice future with you together.
