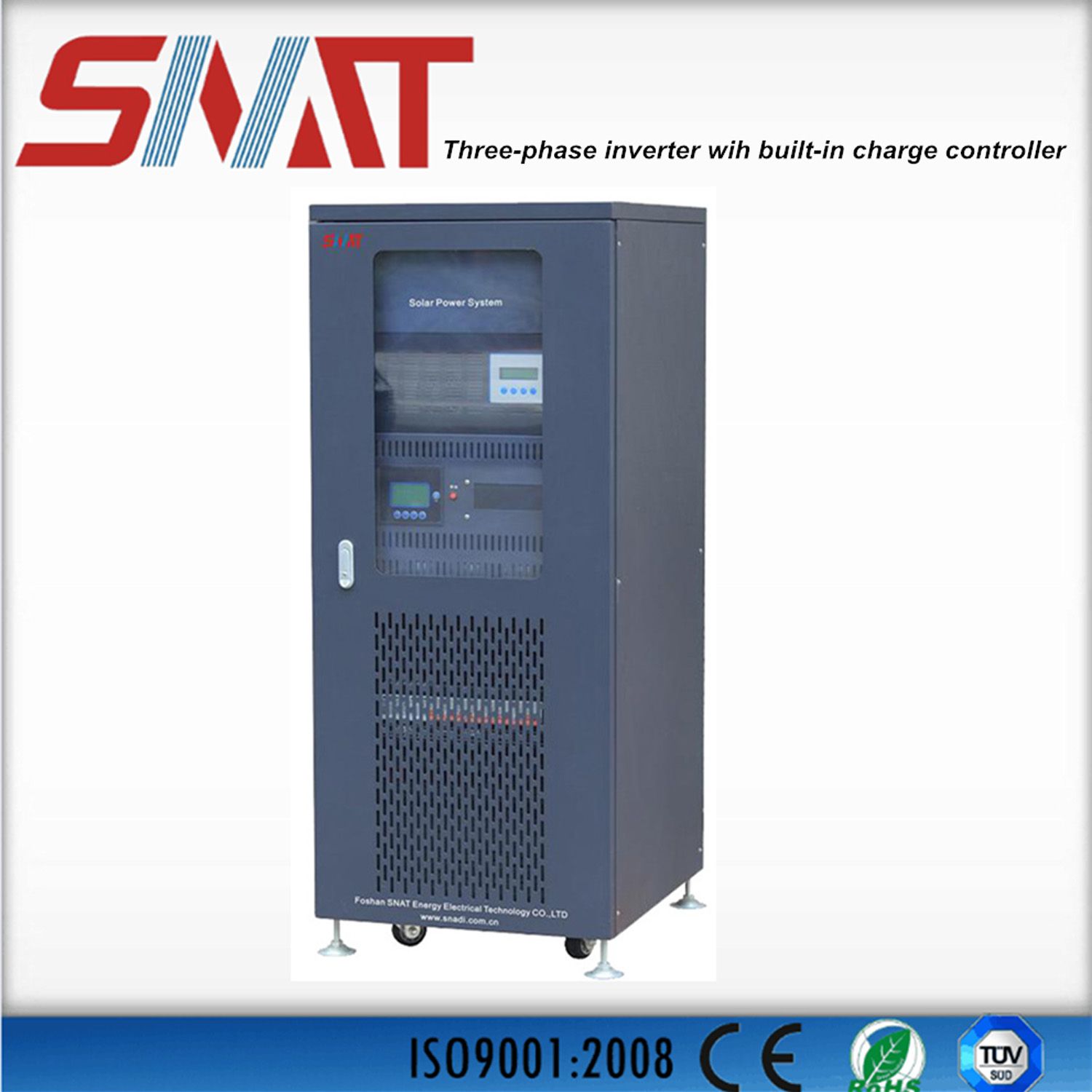

10kw-40kw Three-Phase Inverter with -in Built-in Charge Controller for Power Supply

PRODUCT OVERVIEW
The product is an intelligent inverter with built-in charge controller designed for large photovoltaic power generations. Its built-in controller can realize charge management for a battery pack by multiple solar arrays to improve charge efficiency and life of the battery pack. Thanks to the DSP control base on SPWM high-frequency carrier technology and IGBT power device, it can control the output operation parameters accurately to provide a high quality and reliable pure sine wave AC power supply for precision equipment. It is widely applied to large solar power generator occasions including families, schools, public lighting, industrial and mining enterprises, frontier defense, sea islands, pasturing areas etc


TECHNOLOGY INDEXES
 + Excellent performance because of the DSP intelligent control inversion technology :
 + A wide range of applicable loads because of pure sine wave AC output;
 + Visualization of operation status of the equipment through simple LEDs and a LCD:
 + Overall automatic protection and alarms such as output overload protection;
 + Solar array and battery common-anode system input:
 + Intelligent charge control based on programming of charge parameters, which is provided to meet the special needs of different occasions:
 + Settable battery protection parameters. and a function of password protection:
 + A function to accumulate the photovoltaic power generation capacity and the battery capacity:
 + Overall protection: Protection and alarm for reverse connection of the battery poles. battery overcharge and back charge of the battery at night:
 + Display of the current battery voltage, battery charge current. internal temperature of the case, total photovoltaic power generation capacity (AH) total power consumption by the load. total battery level (AH). photovoltaic current when each solar battery is separately conducted, etc


Model		NKG-10KW	NKG-15KW	NKG-20KW	NKG-30KW	NKG-40KW
Rated power		10KW	15KW	20KW	30KW		40KW
Battery	Rated voltage	192V DC/220V DC/384V DC			384V DC
	Voltage of over discharge protection	172V DC/194V DC/345V DC			345V DC
Controller	Rated current	100A
	Rated voltage	192V DC/220V DC/384V DC
	Number of inputs	4
	Max. current of each input	25A
	Solar input voltage	<330V DC/<378V DC/<660V DC			<660V DC
	Voltage of overcharge protection	220V DC/255V DC/445V DC(programmable)			445V DC(programmable)
	Control accuracy	±0.1
	Display accuracy	±0.1
	Efficiency	>95%
Inverter	Input voltage	176-364V AC/304-456V AC
	Input frequency	45-65Hz
	Output voltage	220V AC/380V AC ( three-phase four-wire)
	Output frequency	50/60Hz
	Output waveform	Pure sine wave, THD<4% (full load)
	Protection function	Output short circuit protection, over-voltage protection, under-voltage protection, low battery protection
	Manual power-on/off	Manual power-on/off preferred
	Automatic power on/off	Light-operated power-on + fixed-time power-off (programmable)
Other	Ambient temperature for operation	0-40ºC
	Relative humidity for operation/storage	20-90% (No condensation, maximum)

Warranty:
Quality warranty for 1 year; parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

Accept special design requirements.
