10kw on/off-Grid Solar PV Inverter for Ess with Jet

Name: 10kw on/off-Grid Solar PV Inverter for Ess with Jet
Brand: all-electronics-online.com
SKU: 726717272
Availability: InStock
Rating: 4.5 (37 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP99TLS-JP
Input Volatage Range:	DC 150-650V
Rated Input Voltage:	DC 330V
Max Input Current:	50A
MPPT Route:	2
Grid-Tied Output:	Rated Ouptput Power:9.9kw
MPPT Efficiency:	More Than 99.5%
Enclosure:	IP65
Communication Mode:	RS485

Product Description

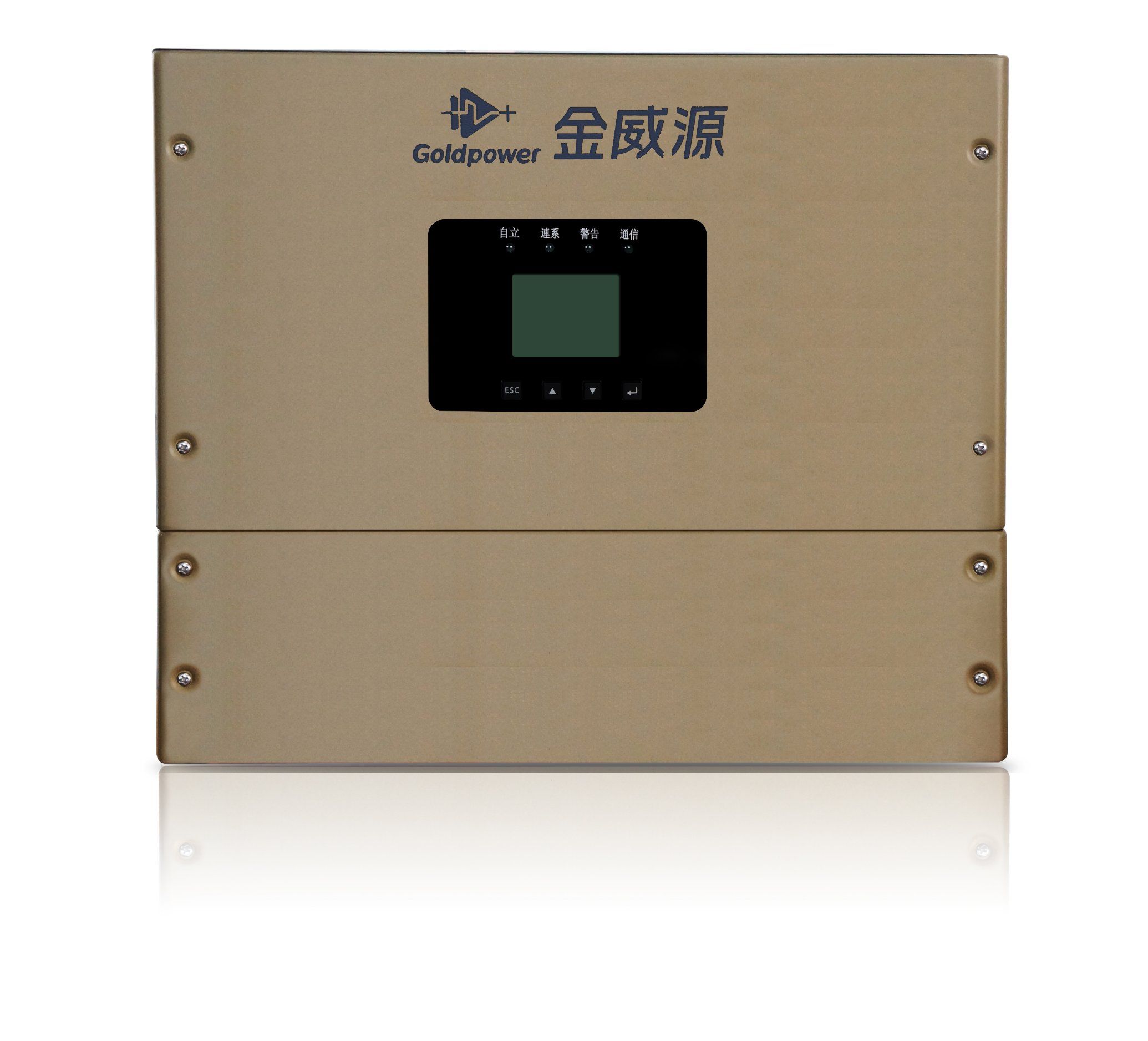

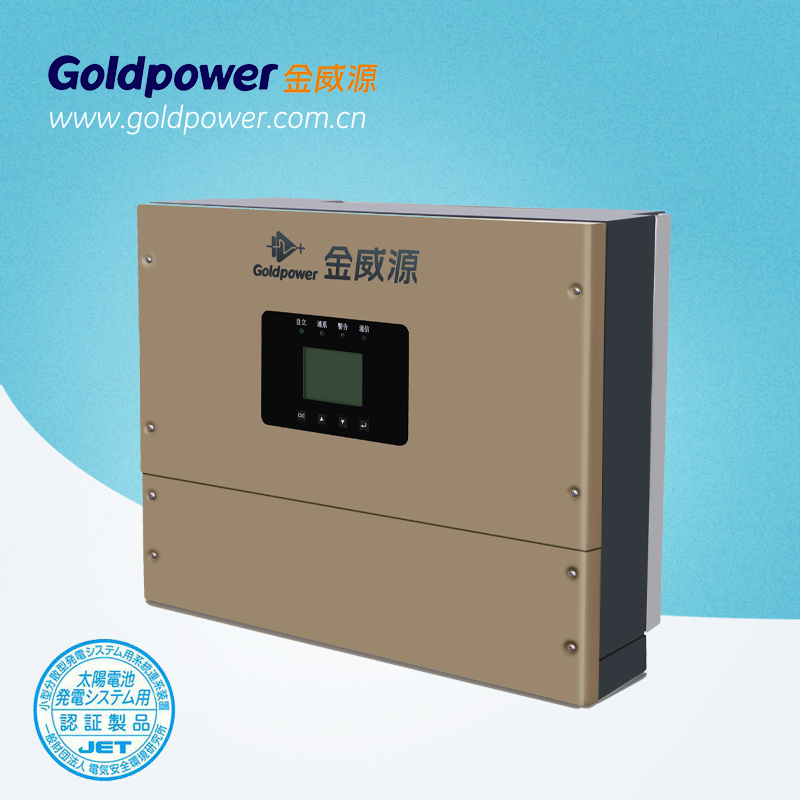

GP9.9TLS-JP,which has passed the JET certification is a new kind of intelligent grid on /off inverter with group and series conncetion(below 50KW).It can applied to commercial building,roof power station and other small-scale PV power station

Feature:
Flexible and efficient
*Max efficiency 96%,MPPT efficiency >99%;
*Wide input range:150-620V;
*Support Grid-tied and Off-grid;
*RS485;
*Support intelligent Grid on / off.

Easy Installation
*Compact and light weight;
*Easy AC plug.

Safe and Reliability
*IP65
*Dual cooling with Aluminum housing+Fan

Specifications:

Model		GP9.9TLS-JP
Input	Rated Input Voltage	330V DC
	Full Load MPPT voltage range	150-600V DC
	Input Voltage Range	150-600V DC
	Max Input voltage PV1/PV2	25/25A
	MPPT route	2
	module number per MPPT	2
Grid-tied output	Rated output power	9.9KW
	Rated output current	28.6A
	Max output current	31A
	Rated Voltage	202V
	Voltage Range	190-214V/AC
	Rated power grid freqency	50/60Hz
	Power factor	≥0.95
	THD	≤5%
	Output phase	3 phase 3 wire
Off Grid output	Rated output voltage	101VAC
	Max output power	5KVA
	Output phase	3 phase 3 wire
Efficiency	Max Efficiency	≥96%
Efficiency	MPPT Efficiency	≥99.5%
Protection	Over voltage	√
	DC terminal insulation impedance monitoring	√
	DC component monitoring	√
	AC output short circuit	√
	Over temperature	√
	Islanding protection monitoring	√
General Characteristics	Isolation type	Non-Isolation
	Night power	≤3KW
	Working temperature range	-20ºC~50ºC
	Cooling	Natural+forced air cooling
	Enclosure Grade	IP65
	Dimensions	580460214.5mm
	Weight	40Kg

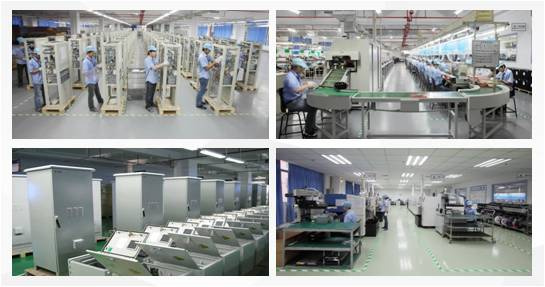

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
