10s6p 36V 13.2ah Ebike Battery Rear Rack Battery Lithium Ion Battery Power Bank Li-ion Battery Rechargeable Battery Lithium Battery for Two Whee Vehicles
| Price: |
US $ 143-227/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union |
10S6P 36V 13.2Ah Lithium Battery pack for Two wheel vehicles | Specification: |
| Voltage: | 36V |

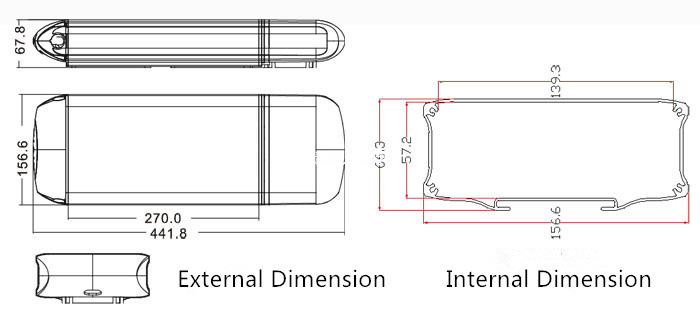

| Inner size: | 270*139*57mm |
| Capacity: | 13.2~17Ah |
| Structure: | 10S6P |
| The length of Aluminum tube | 275mm |
| Charge Voltage: | 42V |
| Discharge Voltage: | 27.5V |
| Charge Port: | DC2.1 |
| Discharge Port: | FDDZ-1 |
| Working Temperature: | 0~35ºC |
| Storage Temperature: | ≤3month | 20±5ºC |
| Storage humidity: | ≤3month | 0~30ºC |
| ≤6month | 20±5ºC |
| 65±20%RH | 20±5ºC |
| Recommended to install the electric core number:18650 60PCS |
| Optional Cells:Samsung:22P,26F,29E,32E,33G |
| Panasonic:18650PF,32BD,18650B |
| LG:B4,C2,D1,E1,MG1,MJ1. |

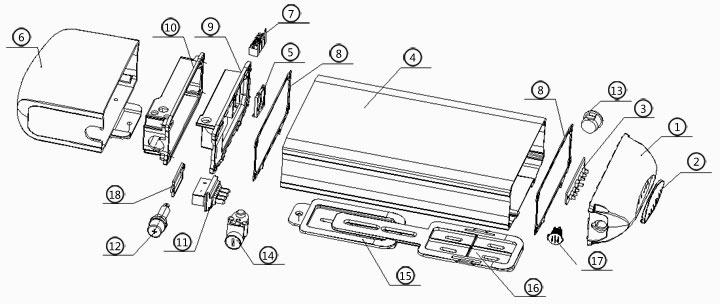

| (1) | rear cover | (7) | discharge spring | (13) | power switch |
| (2) | energy display mask | (8) | waterproof washer | (14) | lock |
| (3) | energy display tablet | (9) | front cover | (15) | slide rail 1 |
| (4) | aluminum shell | (10) | controller box cover | (16) | slide rail2 |
| (5) | discharge socket cover plate | (11) | discharge plug | (17) | charge port |
| (6) | controller box | (12) | ¢6*30fuse(30A) | (18) | discharge plug stator |
Application:Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc. Advantage:1.Long life, large capacity and good shock resistance.2.Low self-discharge and good discharge performance at low temperature.3.Strong charging acceptance and quick-charging capability.4. Strong over-discharge resistance and charge retention.5. Maintenance-free and no acid or water for maintenance in usage.6. Excellent large current discharge performance, and have obvious advantages in startup and climbing.7. High temperature performance.8. Environmental friendly.9. Lighter weight smaller size.10. Most safe no explosion no fire. Warranty Instructions1.We provide 2 years Warranty.2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.3.Goods should be returned in original condition to qualify for a replacement or repair.Payment terms1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.2. EXW, FOB and CIF all are available.3. Production lead time:7-10 working days.4. Sample can be delivered in 3-5 working days.5. Discounts are offered based on large quantities.6. Loading port: Shenzhen or HK. Company Information:Shenzhen Chixia industry Co., Limited is a professional battery manufacturer of lithium batteries in China ,including : LiFePO4, LiMn2O4, LiNiCoMnO2 and LiCoO2 batteries. Products are widely applicable to E-bikes, E-motorcycles, EVs, golf carts, lawn mowers, electric tools and toys, portable power supply, safe mining equipments, UPS, telecommunication backup power, photovoltaic and wind power storage, etc.All of our products will be strictly tested before delivering out .We also offer OEM & OEM service.You are always welcome to visit our factory and cooperate with us!
| Prod Model: |
BB-HT-1 |
| Connection Mode: |
Series and Parallel |
| Type: |
Lithium |
| Rated Capacity: |
13.2ah |
| Standard Voltage: |
36V |
| Usage: |
E-Bike ,E-Scooter etc. |
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
