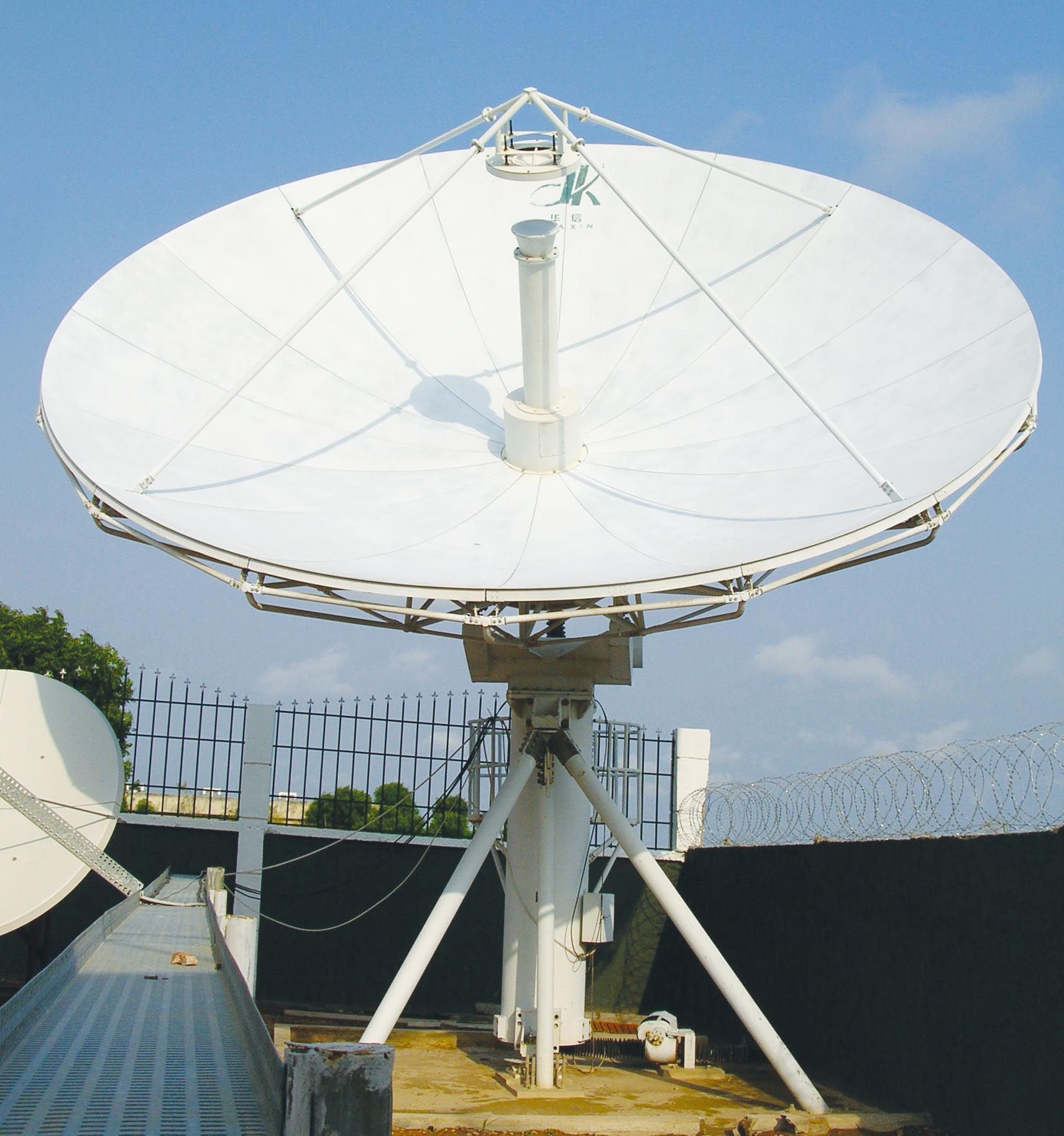

11.3m Rx Only Antenna

Features:
Dual shape ring-focus design
Aluminum major reflector & sub reflector with high precision
Fashionable design, easy installation and adjustment
Factory feed system and king post pedestal assembled to reduce installation time
No field alignment required
Well in anti-corrosion
Excellent in stability

Main parts:
Feed horn
Reflector
Radial beams
Hub
2-axis motorized king post pedestal
Foundation kit

Options:
Dual linear polarization / dual circular polarization
C/Ku dual band feed system
POL motorized
Controller, Beacon receiver
Intelligent pressurization dehydrator
Waveguide switch
Anti-icing system
Lightning rod
Site installation and commissioning support
Customized available

Specification of 11.3m Rx Only Antenna

R.F SPECIFICATIONS	C-Band		Ku-Band
	RECEIVE		RECEIVE
1. Frequency(GHz)	3.625-4.2		12.25-12.75
	3.4-4.2 ★		10.95-12.75 ★
2. Typical Gain(dBi)	51.51 at 3.8GHz		61.53 at 12.5GHz
3. VSWR	1.25:1		1.3:1
4. Beamwidth (-3dB)	0.437°		0.138°
5. Antenna Noise Temperature(K)	1/2Port Feed		1/2Port Feed
10°Elevation	31K		37K
20°Elevation	27K		32K
40°Elevation	23K		29K
6. Typical G/T at 20°EL	33.95dB/K (3.8GHz, 30K LNA)		41.44dB/K (12.5GHz, 70K LNA)
7. Feed Interface	CPR-229		WR-75
8. Feed Insertion Loss	0.2dB		0.25dB
9. Tx to Rx Isolation	≥85dB		≥85dB
10. Axial Ratio (dB)	0.75dB		1dB
11. Cross Pol Isolation
On Axis	≥30dB		≥30dB
12. Sidelobes	CCIR.580-6		CCIR.580-6
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Dual-reflector	1. Wind Loading, Operational (Maintain Precision)		60mph(97km/h)
2. Drive Type	Motorized	2. Wind Loading, Operational (Decrease Precision)		65mph(105km/h)
3. AZ Travel	±90°(3 segments)	3. Wind Loading, Survival (Fixed Heavenward)		125mph(200km/h)
4. EL Travel	5° to 90°	4. Ambient Temperature		-40°C to 60°C
5. POL Travel	±90°	5. Rain		100mm/h
6. Reflector Material	Precision formed aluminum	6. Relative Humidity		0 to 100%
7. Reflector Segments	32	7. Solar Radiation	360 BTU/h/ft²(1000Kcal/h/m²)
8. Mount Type	King post pedestal	8. Ice	25mm on all surface or 13mm on all surface with 130km/h wind gusts
		9. Shock and Vibration	As encountered during shipment by commercial air, sea or truck
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.

Prod Model:	HXWJ11.3m
Drive Type:	Motorized
Polarization:	Linear/Circular
Size:	11.3m
Color:	White
Warranty:	1 Year
Enterprise Nature:	Manufacturer
Customized:	Available
Certificate:	ISO9001
Market:	Global
Logo:	Huaxin/Customized
Usage:	Rx Only Antenna
Material:	Al
Usage Occasion:	Fixed Earth Station Antenna
Operating Wavelength:	C-Band, Ku-Band
Sturcture Form:	King Post Pedestal
