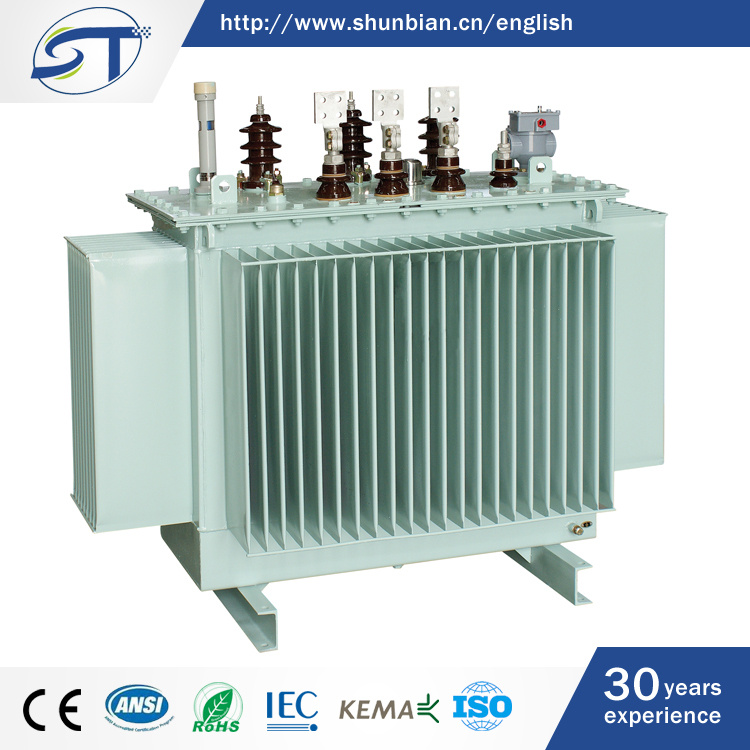

11/0.4kv Oil-Immersed Type Three Phase Power Distribution Transformer

Name: 11/0.4kv Oil-Immersed Type Three Phase Power Distribution Transformer
Brand: all-electronics-online.com
SKU: 722948842
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	US $ 1500-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

3-Phase Hermetically Seal Oil Immersed Distribution Transformer

Rated capacity: 10-4000kVA
High voltage: 11kv, 10.5kv, 10kv,6.3kv, 6kv
Low voltage: 0.4kV
Low loss and noisy
Compared with normal oil immersed power transformer has no oil storage box and adopts the corrugations on the oil tank as its heat-radiation parts
Oil tank is made by fine cold-rolled steel on an exclusive production-line
Corrugations can expand or contract according to the change of oil volume
Thus the inner space of transformer can be isolated from the air
which can reduce the aging speed of oil and prevent the insulation materials from damping
Oil-immersed transformer possesses a reliable operation and is free from maintenance

General Description:

Application: for power distribution system and large industrial enterprises, etc.

Standards: IEC 60076

Parameters: Rated Voltage: 6kV~35kV.
Rated Capacity: 30-20000kVA.

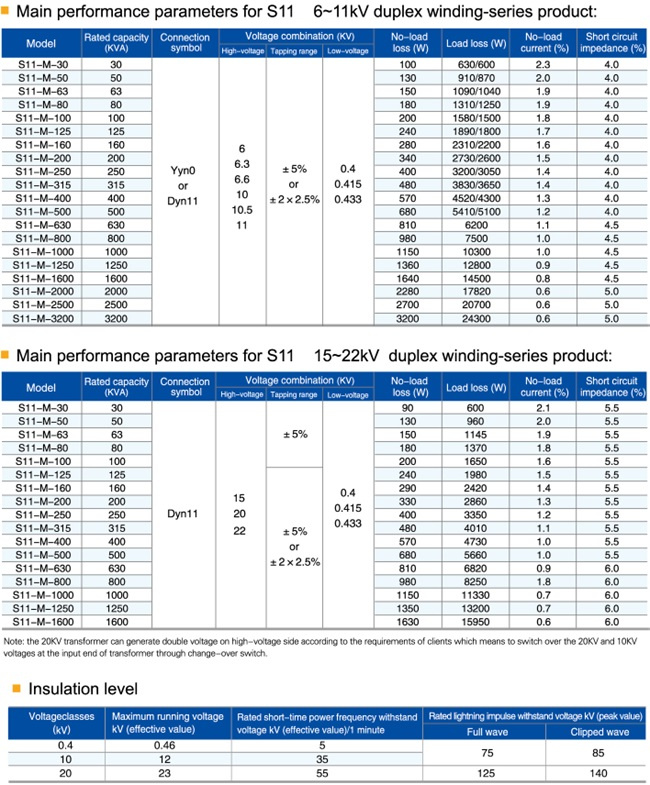

Parameter(S11-30~1600/10 Oil-immersed transformer)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
Rating (kVA)	HV (kV)	LV (kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(120ºC)	short-circuit impedance(%)	Track Distance	Body weight (kg)	Oil (kg)
30	6 6.3 10 10.5 11 ±5% or ±2×2.5%	0.4	Dyn11 Yyn0 Yzn11	2.0	100	630/600	4	400.0	130	55
50				1.9	130	910/870			200	75
63				1.8	150	1090/1040			250	75
80				1.6	180	1310/1250			280	80
100				1.5	200	1580/1500			320	90
125				1.4	240	1890/1800			340	95
160				1.3	280	2310/2200		550.0	440	110
200				1.2	340	2730/2600			520	130
250				1.1	400	3200/3050			610	150
315				1.0	480	3830/3650			670	160
400				1.0	570	4520/4300			840	190
500				0.9	680	5410/5150			990	210
630			Dyn11 Yyn0	0.8	810	6200	4.5	660	1140	280
800				0.7	980	7500		660	1430	320
1000				0.6	1150	10300		820	1470	360
1250				0.5	1360	12000			1770	400
1600				0.5	1640	14500			2210	440

Technical specification:

Packing & Shipping:

Packaging Details: One unit per wooden case

Delivery Detail: 15-20 work days after the whole payment

After-sale & Warranty:
1.Warranty: 2 years. 1 year free replacement caused by quality problem.

Our Service:

1.OEM is available.

2.Customized solution & perfect after-sale service

3. For large order, Professional engineer go for on-site mainternace instructions.

Contact:

Prod Model:	S9/11/13
Application:	Rectifier
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Zenele

Since its founding in 1985, ST has been among leading manufacturers of high and low voltage electric products in Liushi, which is known as China Electric Capital. The company covers more than 500, 000 square meters of area.

ST is specialized in manufacturing of power transmission and distribution appliances, including power transformer, switchgear, breaker, reactor, cable and electric power tool, etc. As an ISO9001: 2000 quality system approved company, ST is known for its high quality products. The products also complies with IEC standard and other international standards.

Through years of its development, ST has expanded its business into more than 40 countries, The company attaches great importance to quality guarantee and customer satisfaction. Attributed to our reliable quality and perfect service, the company has won outstanding reputation from our clients all over the world. ST will continue to play an active role in the electric industry and to explore new opportunities of business with people all over the world on the principle of equality and mutual benefit.
