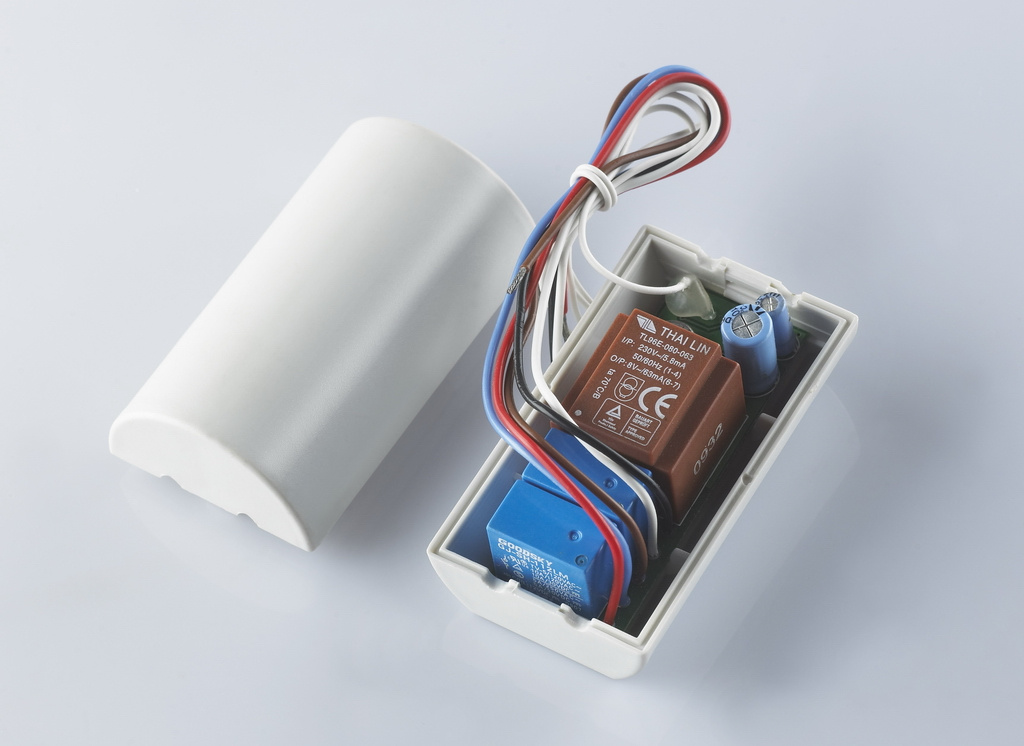

110/220/230V AC Tubular Motor Internal Controller

Name: 110/220/230V AC Tubular Motor Internal Controller
Brand: all-electronics-online.com
SKU: 608229295
Availability: InStock
Rating: 4.5 (40 reviews)

Price:	US $ 11.2-12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VG-IRC-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	433.92MHz/868.35MHz
Application:	Automatic Doors
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Voltage:	12V
Material:	Plastic
Battery Type:	AAA Battery

Product Description

Introduction:

1. Frequency: 433.92MHz/868.35MHz

2. Operation temperature: -25 to 85 degree Celsius

3. Input Voltage: 110V/60Hz-230V/50Hz

4. Power consumption: 0.5W

5. Single motor control or group control selectable, control up to 5 motors

6. Open/Close direction can be set by transmitter

7. Max loading power: 1000W(can be changed according to customer requirement)

8. Can be used in tubular larger or equal to diameter 35mm

9. PCB dimension: 63*24*23mm

The control board is compliant to CE and RoHS directive.

Since 1998, Vigile Electronics specializes in development and manufacturing of remote control for motors.

Our mission is to design and manufacutre all kind of home and industrial automation.

Products mainly include external/internal remote controller and cable control for tubular motor. Applications include roller blinds and shutter, vertical blind, venetian blind, swing gate, awnings, industrial door and garage door etc. Our business is mainly OEM and ODM; Control system could be designed according to customers' requirement.

For swing gate motor controller, the standard control board is used in 110/220/230/24V motors which technology is maturity and stability,

Meanwhile, the controller for sliding door motors, all kinds of stable control system has been proved from marketing. So our company get reputation in this remote control lines over 10 more years.

Many Europe Financial Group have been using our technology and products over 10 mores years, we would like to provide the better products all the time.

In wireless transmitter line, the Fixed code and rolling code are very popular in market, we are the very few company in China which can control in high frequency such as in 868.35 Megahertz line.

We now have customers from US, Germany, Taiwan and Middle East, our product can meet standard of CE/TUV/UL/FCC approval.

With the best quality products, competitive price and customer first attitude, we are glad to establish long term relationship with customers from all over the world.
