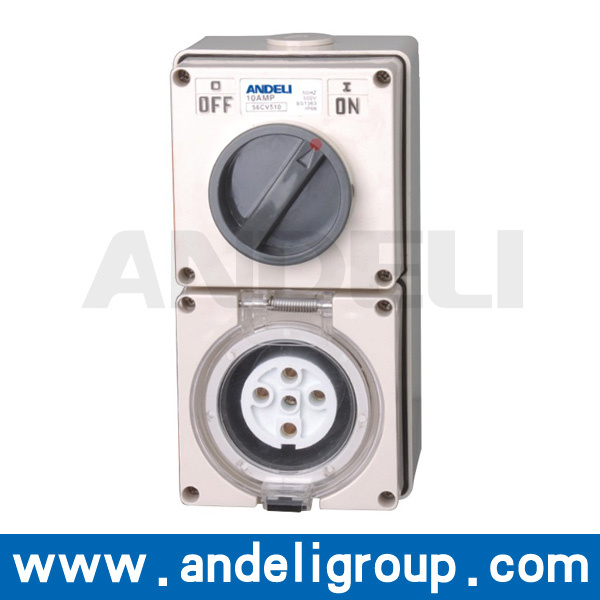

110-250V Combination Switched Sockets (56 series)

Name: 110-250V Combination Switched Sockets (56 series)
Brand: all-electronics-online.com
SKU: 615256864
Availability: InStock
Rating: 4.3 (48 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

The 56 Series includes an extensive range of one piece combination Switched Sockets.
Optional keylocking OFF facility(quote " CVK " when ordeting keylock type, e. G. Cat no. 56CVK310). For NEON indicator option add " N " after catalogue number.

Catalogue Number		56CV310	56CV315	56CV313	56CV316/110	56CV.03/240	56CV320	56CV332
Rated Operational Voltage Ue(-50HZ)	Volts	250	250	230	110	230	250	250
Rated Thermal Current Enclosed	Amps	10	15	13	16	16	20	32
Description		Switched NZ/Aust Socket	Switched NZ/Aust Socket	Switched British Square Pin sicket	Switched CEE17-4h Socket(Yellow)	Switched CEE17-4h Socket(Blue)	Switched AS1323 Socket	Switched AS1323 Socket
Switch Description		1 way Single Pole	1 way Double Pole	1 way Double Pole	1 way Double Pole	1 way Double Pole	1 way Double Pole	1 way Double Pole
Utilisation Category AS3133 250V AC23A 240V	Amps Amps KW	10AX M50 15 2.2	16AX M120 15 2.2	16AX M120 15 2.2	16AX M120 15 2.2	16AX M120 15 2.2	20AX M150 21 3.0	32AX M180 28 4.0
Cable Cross Section Solid or Stranded mm 2	Min Max	0.75 6	1.0 1.6	1.0 1.6	1.0 1.6	1.0 1.6	1.0 1.6	1.0 1.6
SOCKET Number of Socket Pins Including(Earth)		3	3	3	3	3	3	3
Socket configuration
Cable Cross section solid or strandedmm 2	Min Max	10 10	10 10	10 10	10 10	10 10	10 10	10 10
IP Rating		IP66	IP66	IP66	IP66 without plug IP44 with plug	IP66 without plug IP44 with plug	IP66	IP66

Prod Model:	56 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	250V/110V/230V
Pole:	3
Function:	Industry
Rated Continuous Current:	10A,15A,16A,20A,32A

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
