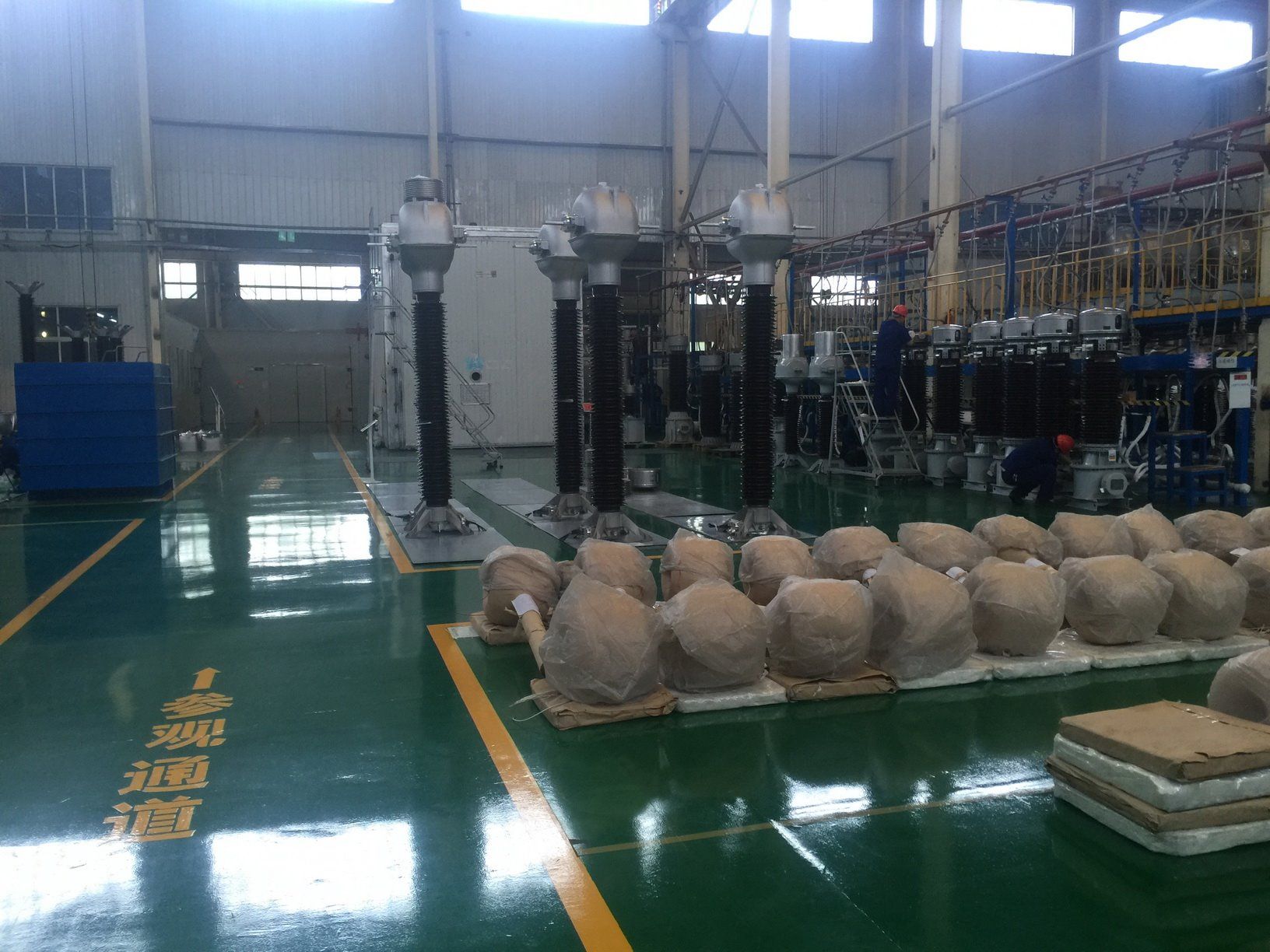

110kv Lb6 Outdoor Oil Paper Insulating Current Transfromer
| Price: |
US $ 3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| 1 | Designation
Standard | Outdoor single phase Oil-paper hairpin type
IEC60044-1:2003 |
| 2 | Type | LB6-110 |
| 3 | Manufacturer | HEMG |
| 4 | Designation test certificate:
) Issuing institute
) Number and data | Attached in the bid
) KEMA
) 07-1007,2007-06-19 |
| 5 | Rated voltage
Rated continuous over voltage | 110 kV
110kV |
| 6 | Rated frequency, | 50 Hz |
| 7 | Rated nominal primary current, | 200-400A | 400-800A |
| 8 | Rated secondary current,
Ratio adjustable is done in | 1-1-1-1A
Primary | 1-1-1-1-1A
Primary |
| 9 | Rated secondary output
) Core (1)
) Core (2)
) Core (3)
) Core (4)
) Core (5) |
) 30VA
) 30VA
) 30VA
) 30VA
) |
) 30VA
) 30VA
) 30VA
) 30VA
) 30VA |
| 10 | Accuracy Class
) Core (1)
) Core (2)
) Core (3)
) Core (4)
) Core (5) |
) 0.2
) 5P20
) 5P20
) 5P20
) |
) 0.2
) 0.2
) 0.2
) 5P20
) 5P20 |
| 11 | Accuracy limit factor | 20 | 20 |
| 12 | Continuous thermal current ratings factor | 120% | 120% |
| 13 | Short time current ratings,
) Thermal (Ith)
) Dynamic (Idyn) |
) 20-40kA
) 50-100kA |
) 31.5-45kA
) 80-115kA |
| 14 | Instrument security factor | | |
| 15 | Power frequency withstand voltage | 230kV | 230kV |
| 16 | Impulse withstand voltage | 650kV,peak | 650kV,peak |
| 17 | Impulse wave | 1.2/50μs | 1.2/50μs |
| 18 | Rated secondary winding power frequency withstand voltage
) Winding to ground
) Between winding |
) 3kV
) 3kV |
) 3kV
) 3kV |
| 19 | Mechanical load on primary terminals:
) Dynamic load
) Static load |
) 2000N
) 2000N |
) 2000N
) 2000N |
| 20 | Material of bellows, if applicable | Stainless steel | Stainless steel |
| 21 | Minimum height | As per drawing | As per drawing |
| 22 | Minimum phase spacing | 2500mm | 2500mm |
| 23 | Minimum clearance | 1305mm | 1305mm |
| 24 | Minimum creepage distance | 3850mm | 3850mm |
| 25 | Size and section of terminal bolt (attach drawing) | As per drawing | As per drawing |
| 26 | Weight per pole | 680 kg |
| 27 | Weight of oil per pole | 140 kg |
| 28 | Type of oil and reference specifications | IEC 60296 |
| 29 | Oil density at 25ºC | 0.895 g/ml |
| 30 | Oil viscosity at 25ºC | ≤13 cs (40ºC) |
| 31 | Partial discharge level | ≤5 pC (under 1.2Um/√3kV) |
| Prod Model: |
LB6 |
| Application: |
Instrument |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
