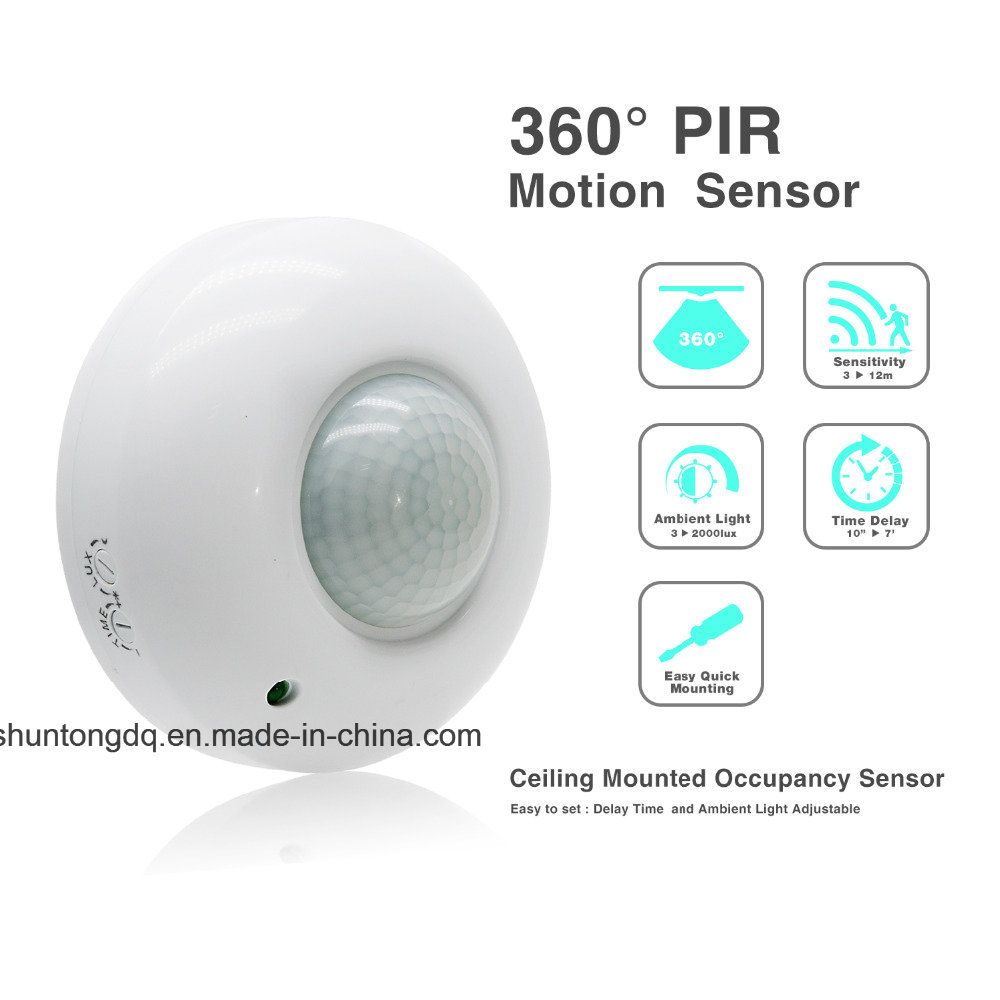

This infrared motion sensor is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT; It gathers automatic, convenient, safe, energy-saving, practical functions; It has wide detection range made up of up and down, left and right service field; It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once; It can identify day and night automatically; It is easy to install and its usage is wide; It has the function of power indication and detection indication.
SPECIFICATION:
Power Source: 110V/AC-240V/AC
Detection Range: 360 degree
Power Frequency: 50Hz
Working Temperature: -20~+40 centigrade
Ambient Light:3-2000LUX (adjustable)
Working Humidity: <93%RH
Time-Delay: min:10sec±3sec max:7min±2min
Installation Height: 1.8m~2.5m
Power Consumption: 0.45W (work) 0.1W(static)
Rated Load: 1200W (incandescent lamp) 300W (energy-saving lamp)
Detection Moving Speed: 0.6~1.5m/s
Detection Distance: 8m max(<24 centigrade)
FUNCTION:
1.Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
2.Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.
3.Time-Delay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 7min±2min.

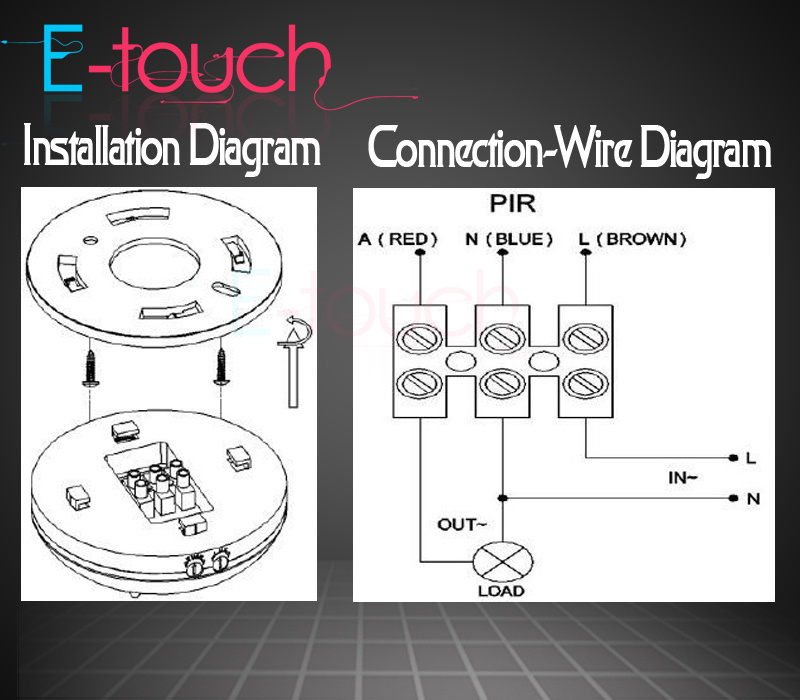

INSTALLATION: (see the diagram)
1.Shut off power.
2.Loosen the screw on the bottom lid, open the wiring hole, pass the wire of power and load through the bottom lid.
3.Fix the bottom lid with inflated screw on the selected position.
4.Connect the power and load wire into connection-wire column according to the connecting figure.
5.Put the sensor on the bottom lid, twist the screw tightly then electrify it and test it.
INSTALLATION: (see the figure)
1.Switch off the power.
2.Turn clockwise the bottom-stand and take off it. The power wire cross the hole in the middle of bottom-stand.
3.The bottom-stand is fixed on the selected position with inflated screw.
4.Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram.
5.The sensor aimed at the mouth of bottom-stand and turned anti-clockwise.
TEST:

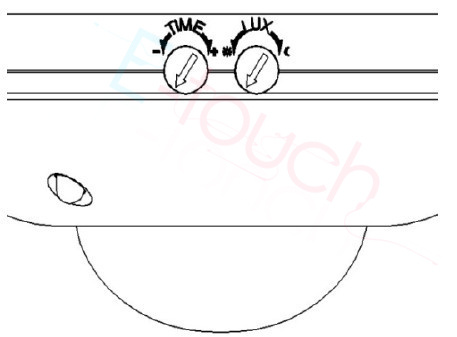

1.Turn the TIME knob to minimum (-) position with anti-clockwise. Turn the LUX knob to SUN position with anti-clockwise.
2.Switch on the power; the controlled load and indication lamp both are not working. Preheat 30 sec later, the load and indication lamp should be turned on synchronization. In the absence of no inductor signals, the load should be stopped working within 5-30sec, the indicator lamp is turned off.
3.After the first sense is finished, and it will sense again after 5~10sec. The load should work. When there is no inductor signals in the indicator lamp, the load should be stopped working within 5-15sec.
4T.urn LUX knob clockwise on the minimum (MOON position). If it is adjusted in the less than 3LUX, the inductor load should not work after load stop working. If you cover the detection window with the opaque objects (towel etc), the load work .under no induction signal condition, the load should stop working within 5-15sec.
Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not work!
SOME PROBLEM AND SOLVED WAY
1.The load do not work:
a. please check if the connection-wiring of power and load is correct.
b. please check if the load is good .
c. please check if the working light set correspond to ambient light.
2.The sensitivity is poor:
a. Please check if there has hinder in front of the detection window to effect to receive the
signal.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection fields.
d. Please check if the installation height corresponds to the height showed in the instruction.
e. Please check if the moving orientation is correct.
3.The sensor can not shut off the load automatically:
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is the longest.
c. Please check if the power correspond to the instruction.
d. Please check if the temperature near the sensor change obviously, such as air condition or central heating etc.
