110V 220V Refrigeration Deforsting Temperature Controller
| Price: |
US $ 4.77-6.72/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram |

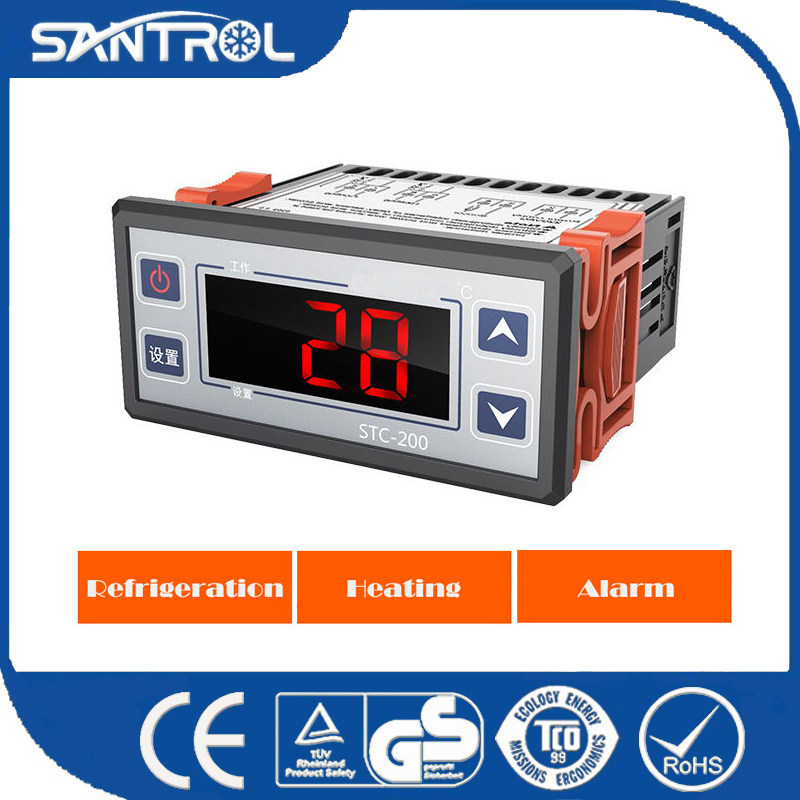

110V 220V Refrigeration Deforsting Temperature Controller STC-200
Product features:
1.Adopt manual switches among refrigeration,heating and alarm,differential to control temperature.
2.User and administrator parameter setting separately,compressor delay time adjustable,temperature calibration,alarm when error,compresspr works as per the scheduled procedure when sensor error.
3.All-purpose model with high performance versus price ratio.
4.It is suitable for refrigeration and deepfreeze,seafood machine,water heater and products which need simple temperature monitoring and alarm.
Specifications and Technical Parameters: | Model number | STC-200 |
| Power Supply | 220VAC±10%(12V±10% optinal) |
| Measure temperature range | -40ºC~99ºC |
| Resolution | 1ºC |
| Accuracy | ±1ºC |
| Usage | Suitable for refrigeration and deepfreeze,seafood machine,water heater and products which need simple temperature monitoring and alarm. |
Technical parameter:1.Temperature measurement range:-40ºC~+99ºC
2.Temperature control range:-40ºC~+70ºC
3.Operating ambient temperature:-5ºC~+60~
4.Stored temperature:-30ºC~+85ºC
5.Relative humidity:20%~60%(No condensate)
6.Power supply:220VAC±10%(12V±10% optinal)
7.Watt consumption:<5W
8.Resolution:1
9.Accuracy:±1ºC
10.Relay contact capacity:10A/250VAC/30VDCInstallation size:1.Product size:77.0×34.5×65.5(mm)
2.Installation hole size:70.5×28.5(mm)Product Display:
Company Information:
XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO.,LTD
Founded in April 2005, is a professional manufacturer in the field of Micro-computer temperafure controller Micro-computer humidity controller, Micro-computer temperature and humidity controller, Micro-computer pressure controller, Digital thermometer and hygrometer, refrigeratory electric control box, the products adapt to many locations and areas that need the measuring and controlling of temperature, such as freezing and cold store, refrigeration display cabinet, seafood pond and so on..
QC:All of products must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packedFAQ:1.MOQ is 100 pieces.
2.OEM/ODM is welcomed!
3.Shipping terms:1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:7-25days(Depends on the Qty) after advanced payment received
4.Shipping way is depand on your choose.
| Prod Model: |
STC-200 |
| Customized Voltage: |
Available |
| Silk Print: |
Available |
| Usage: |
Refrigeration&HVAC |
| Sensor: |
Ntc |
| Color: |
Grey and Orange |
| Function1: |
Adjustable |
| Function2: |
Alarm |
| Function: |
Compressor Protection Delay |
| Product Size: |
77mm*34.5mm*65.5mm |
| Hole Size: |
70.5mm*28.5mm |
XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO Ltd
Founded in April 2005 is a professional manufacturer in the field of Micro computer temperafure controller Micro computer humidity controller Micro computer temperature and humidity controller Micro computer pressure controller Digital thermometer and hygrometer refrigeratory electric contron display cabinet seafood pond and so on ol box the products adapt to many locations and areas that need the measuring and controlling of temperature such as freezing and cold store refrigeration
Through the research of above locations need the measuring and controlling temperature, we developed JD, JDC, JTC, JDJ, YK and electric control box etc several series.
Excellent pertinence advanced assembling, easy structure, strong anti-interference, reliable stability. We can make products according to your needs.
Usually, we will quote the FOB Shanghai price for you, if you need CIF price, please tell me your destination port, I will caculate the price for you. Our minimum order is 1000PCS, and the terms of payment is T/T or L/C. And the delivery time is 30 days after order placed.
We sincerely hope that we can have long-term cooperation with you, and to be our business partner. If you have some questions, please tell me, we will send the products quotation to you.
