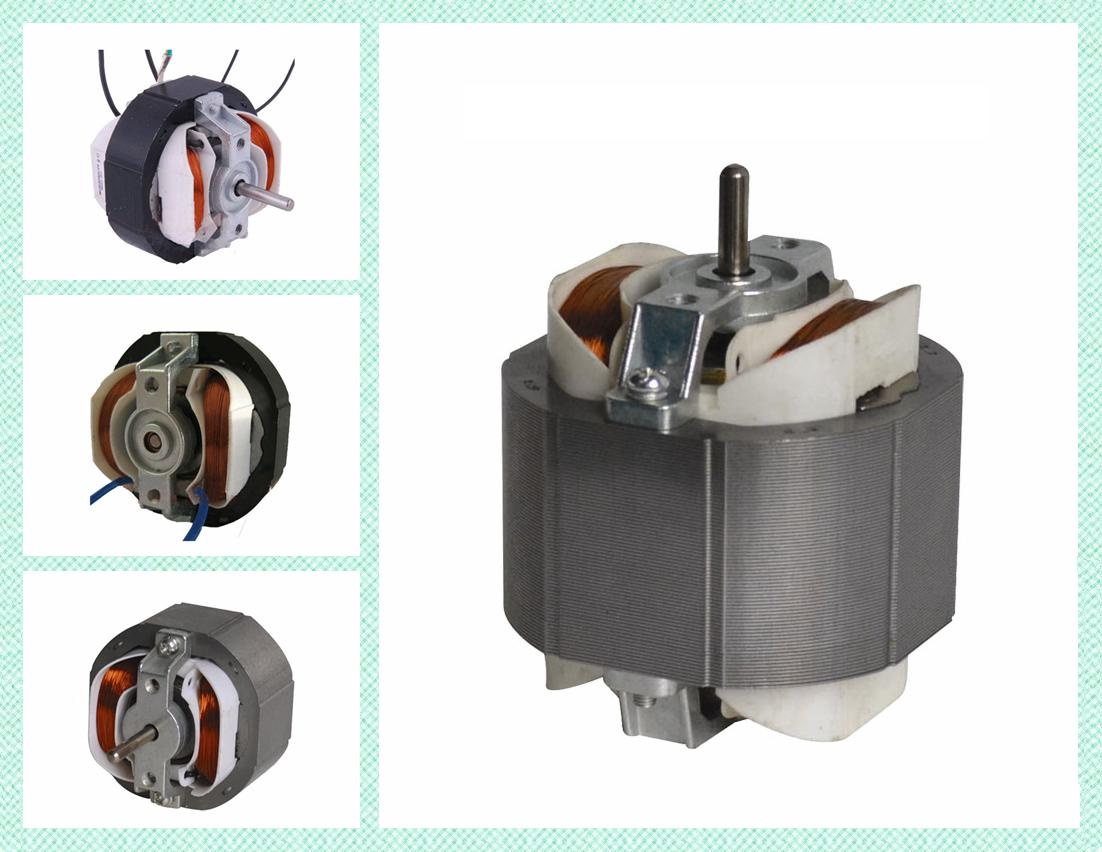

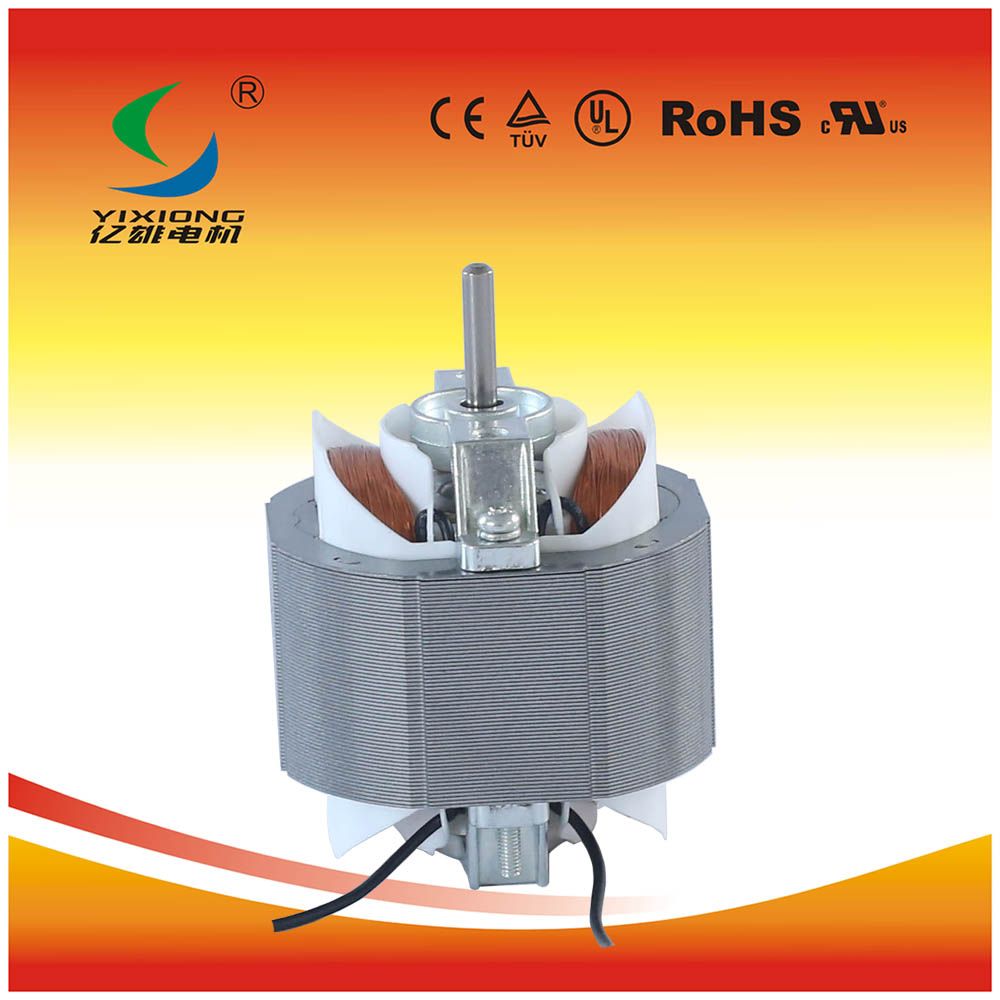

110V 220V Single Phase Asynchronous Small Electric Motor

Name: 110V 220V Single Phase Asynchronous Small Electric Motor
Brand: all-electronics-online.com
SKU: 650323985
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	US $ 0.8-8/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Mini Motor Products Discription :

Supply voltage: 110-240V AC; 50-60Hz; 110/220V 50-60Hz
Suitable Shaft Dia.:4 mm, Shaft length as your request
Stack size: Max dia: 58mm, thickness :8-35 mm;
Bearing: Ball bearing and Sleeve bearing are both available;
Mounting size: M4, disctance of hole is 28mm,

Rotation from shaft extention : CW or CCW;
Lead wire: model and length are as your request
Bearing style:Sleeve bearing or Ball Bearing are both available;
Insulation Class: E / B / F
Protection type: Temperature protection and Impedance protection
Sound level:≤45 dB(A);
Life:3000 Hours Min;

Note:

1. The available model is YJ5810,YJ5812, YJ5816, YJ5820, YJ5825, YJ5830.

Model	Thickness of Stator	Rated Voltage	Power	Speed
YJ5810	10mm	230v 50hz or 120v 60Hz	10w	Max 3000 rpm
YJ5812	12mm	230v 50hz or 120v 60Hz	12w	Max 3000 rpm
YJ5816	16mm	230v 50hz or 120v 60Hz	16w	Max 3000 rpm
YJ5820	20mm	230v 50hz or 120v 60Hz	18w	Max 3000 rpm
YJ5825	25mm	230v 50hz or 120v 60Hz	20w	Max 3000 rpm
YJ5830	30mm	230v 50hz or 120v 60Hz	22w	Max 3000 rpm
YJ5835	35mm	230v 50hz or 120v 60Hz	25w	Max 3000 rpm

2., Every model is three kinds, For example YJ5812, please see following:

Model	Supply Voltage	Speed level	Insulation Class	Input Power	Shaft design	Lead wire
YJ5812A	220v 50Hz	High /Low	E /B / F	as your request	as your request	as your request
YJ5812B	120V 60Hz	High /Low	E /B / F
YJ5812C	230V 50HZ 127V 60Hz	High	E /B / F

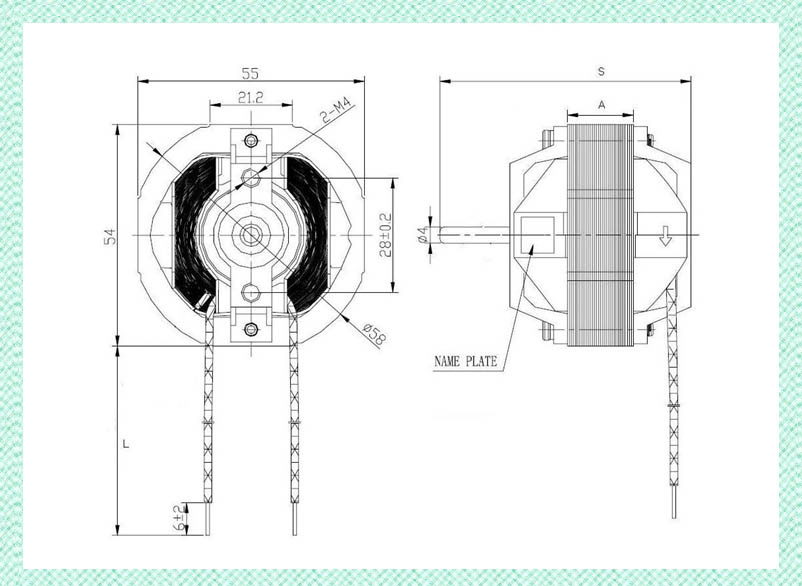

Drawing

Motor Feature :

1. Usage is for Heater fan, ventilation fan, exhaust fan, etc ventilation systems products;
2. It is safety and reliable, low noise, characteristics hard, good starting, long life, etc
3. It can be designed and produced as your request.

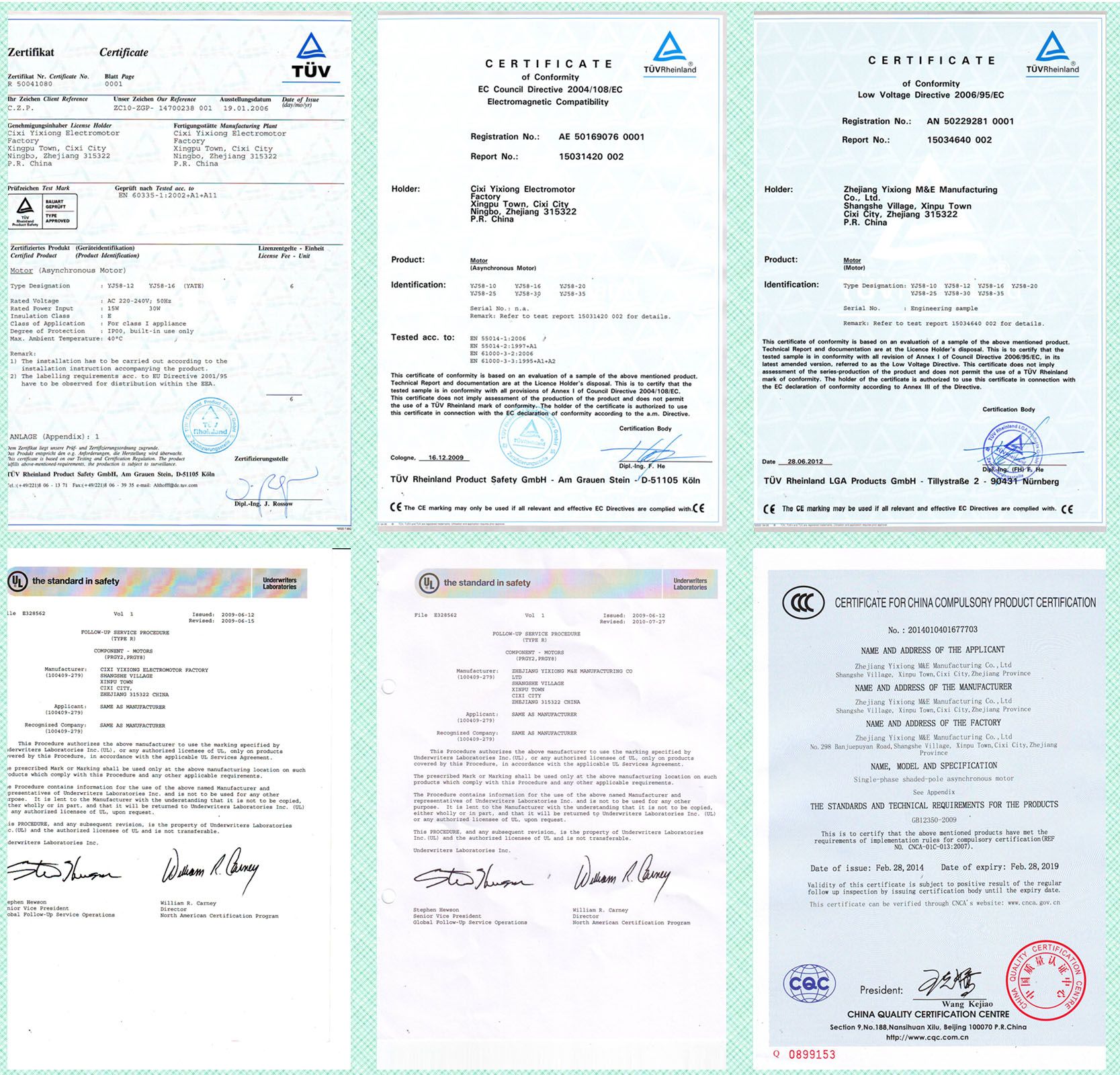

Certificate

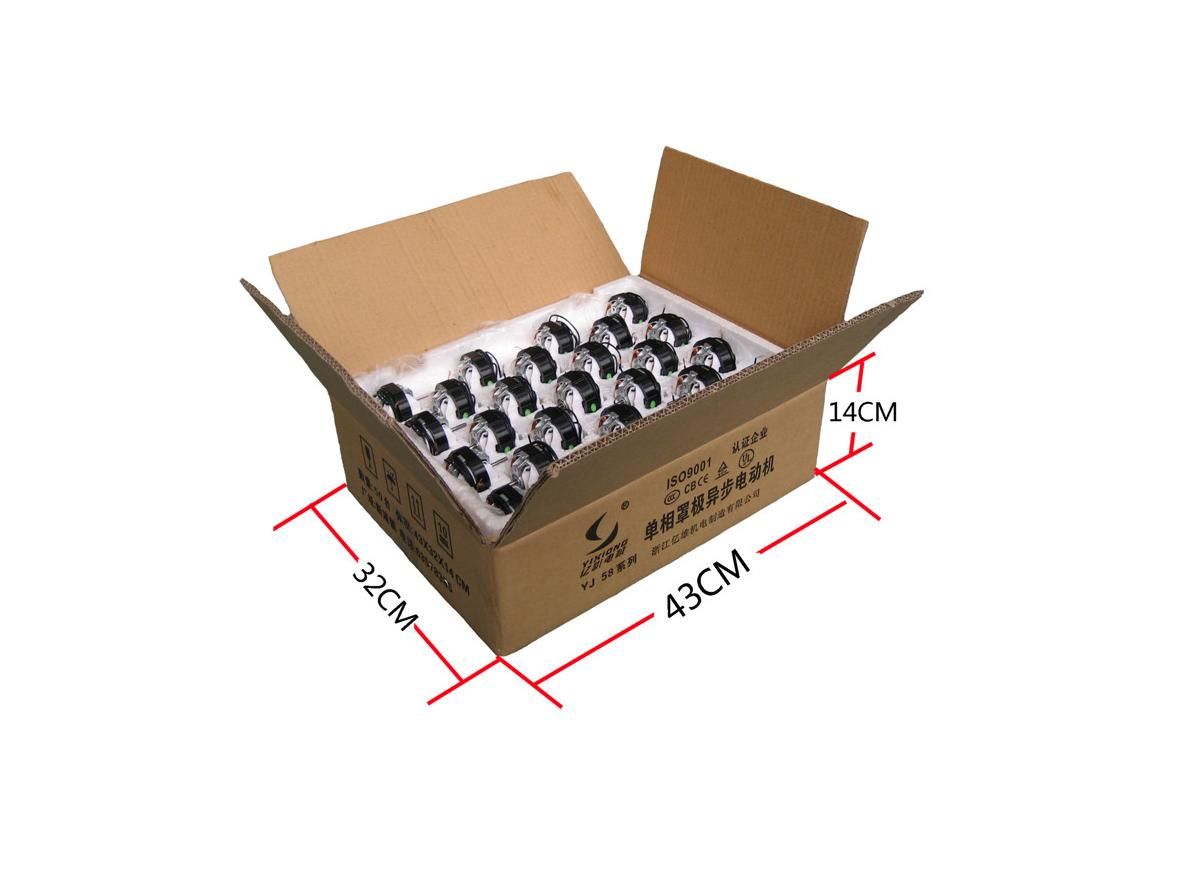

Package

FCL: Outter is double-layer corrugated paper carton, Inner is Plastic foam box.
LCL: Pallets with Carton

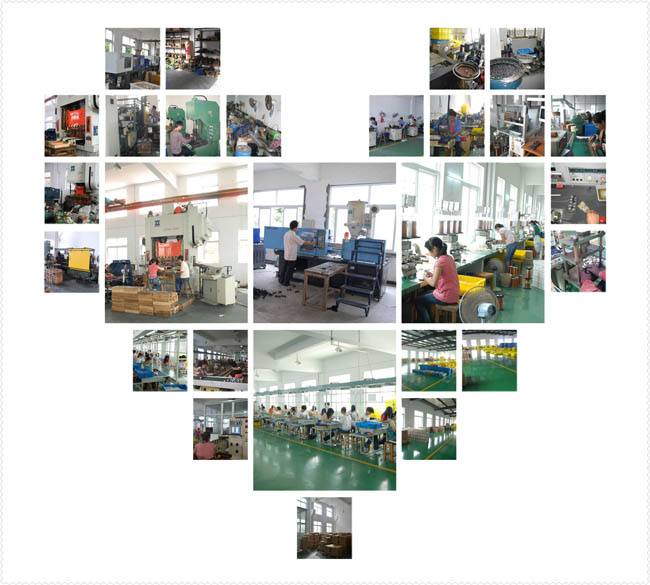

Production

Contact us

Prod Model:	SP58
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Electric Motor
Core Material:	Silicon Sheet
Wire:	Copper
Temperature Protect:	One-Stop or Recoverable
Color:	Silver or Black
Input Power:	5- 200W
Number Of Stator:	Single-Phase
Function:	Driving
Application:	Ventilation Systems
Starting Mode:	Induction Start
Certification:	Ce UL
Brand:	Yixiong

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
