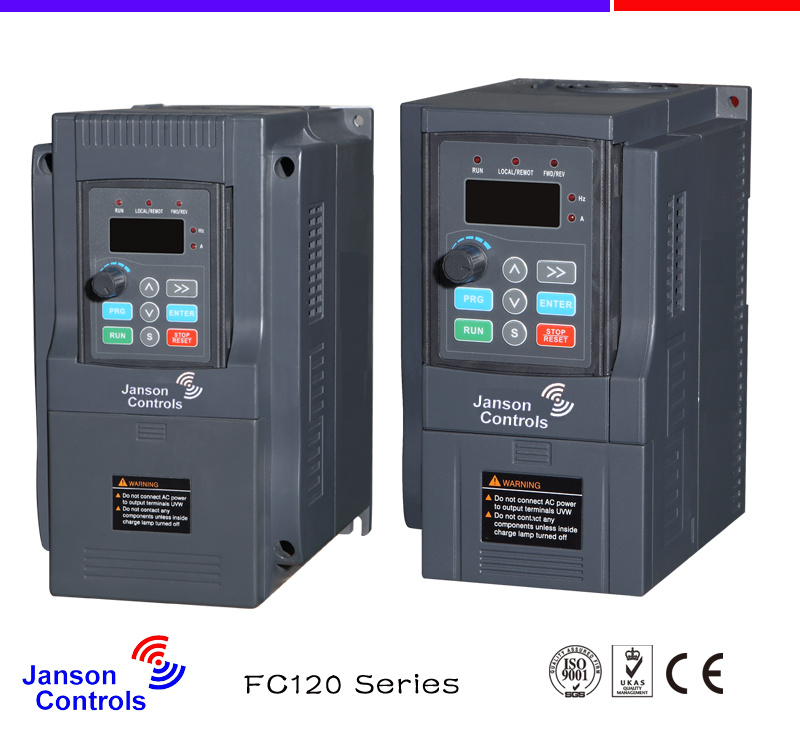

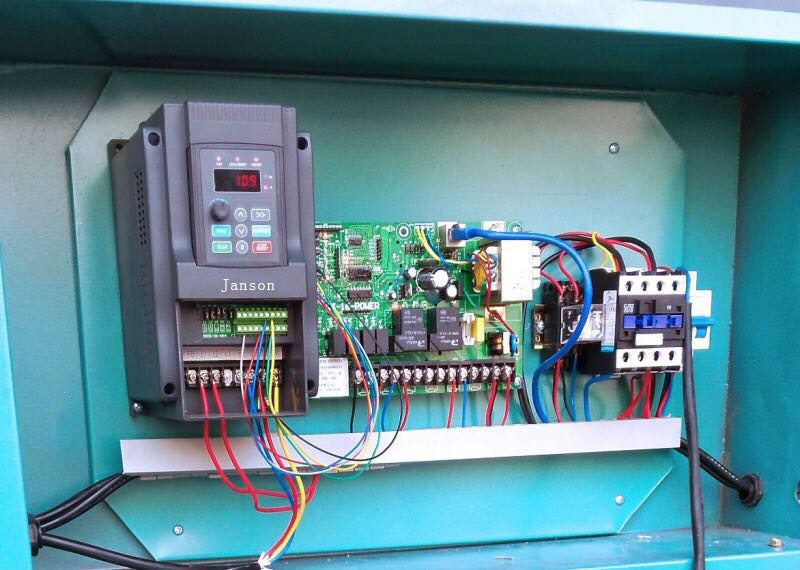

FC120 series inverter has the following characteristics:
advanced vector control algorithm;
vector control mode 0 has better low-speed stability, low torque output greater capacity and better dynamic
response;
richer functionality;
multispeed control,simple PLC,PID control module and pulse count;
stable and reliable anti-trip function;
stable and reliable over-voltage, over-current stall control algorithm, momentary power without stopping the
machine control, to prevent tripping frequently in complex applications.
This manual describes the features and how to use FC120 series inverter, including product selections, parameter
setting, run debugging, troubleshooting and routine maintenance and other related matters. Please give the user or
maintainer of the machine and keep it.

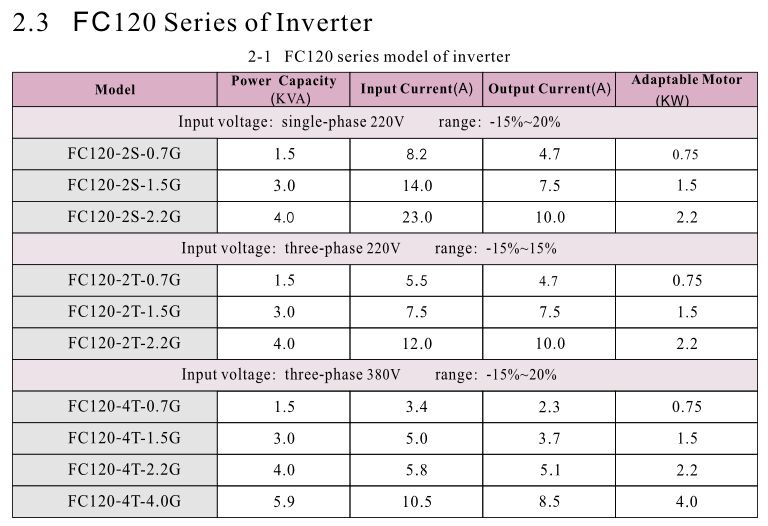

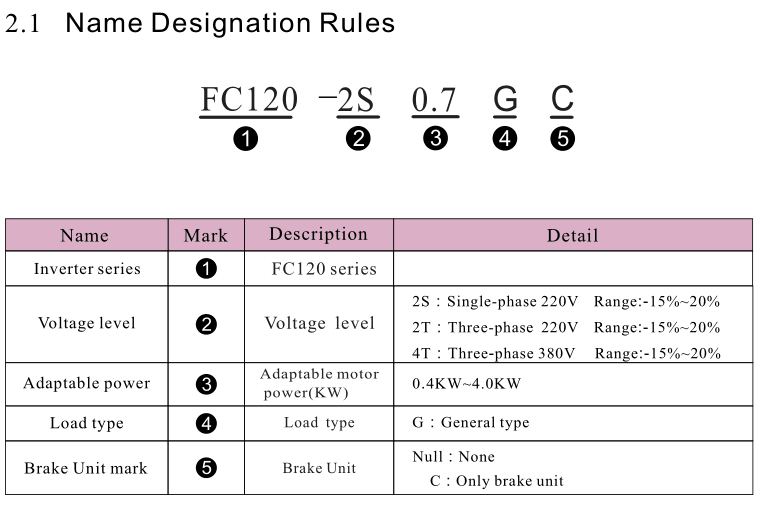

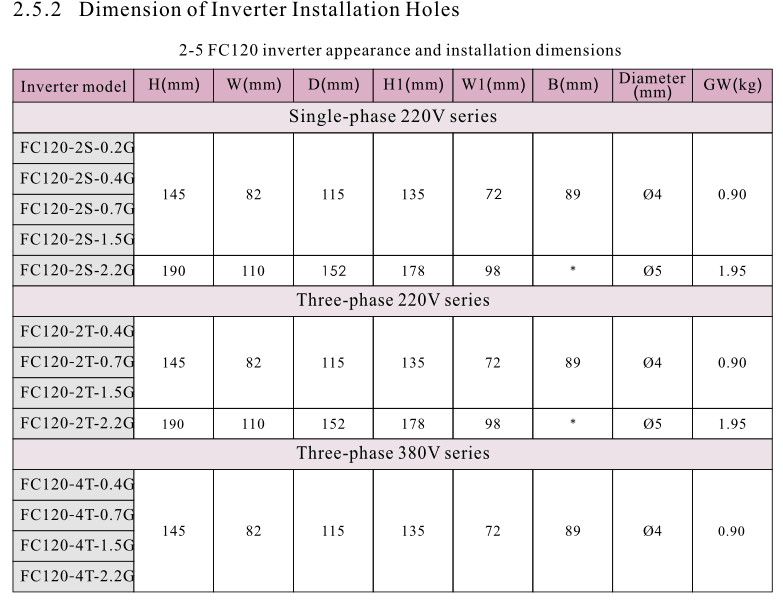

Models Selections,Products Specifiction, Maximum frequency | 0~600Hz |
Carrier frequency | 2.0kHz~10.0kHzAccording to the load characteristics, carrier frequency can be adjusted automatically |
Input frequency resolution | Digital setting: 0.01Hz,Analog setting: X0.025% Maximum frequency |
Control mode | 0:V/F control 1:vector control 0: control |
Start torque | 1.0Hz/150% |
Speed range | 1:50 (vector mode 0) |
Overload capability | 120% rated current for 1 hour, 150% rated current for 60s, 180% rated current for 4s |
Torque boost | Auto Torque boost , Manual Torque boost 0.1% to 10% |
V F curve | Line , Multi-point , Square V/F curve , V / F separation |
Accelerate/Decelerate curve | Line or S-curve Acc/Dec mode : four kinds of Acc/Dec time,Range of Acc/Dec Time : 0.0 to 3600.0s |
DC brake | DC brake frequency : 0.00Hz ~ Maximum frequency Brake current value : 0.0 to 150% Brake time : 0.0 ~ 50.0s |
Jog control | Jog frequency range:0.00Hz~50.00Hz |
Simple PLC Multi-speed running | 16-speed operating through control terminal |
Built-in PID | Close loop control system can be formed easily by using PID |
Automatic voltage regulating (AVR) | Output voltage is regulated when voltage of the power network changes |
Overvoltage , Overcurrent stall control | During the inverter running , output current and bus voltage is limited automatically to prevent frequent overcurrent and overvoltage trip |
Fast current limiting function | Minimize reduce overcurrent fault inorder to protect inverter running |
Bus Support | Modbus communication with international standards |
Command source | Keyboard reference,control terminal reference,serial communication port reference,can be switched by a variety of ways |
Frequency source | Nine frequency sources :digital fererence,analog voltage reference, analog current reference,pulse reference,serial communication por treference ,can be switched by a variety of ways |
Auxiliary frequency sources | Nine auxiliary frequency sources ,Flexibility to implement auxiliary frequency tuning, frequency synthesizer |
Input terminal | Five digital input terminals(S1~S5), one high-speed pulse(HDI) support max 50kHz input ,One analog input terminals(AI1) can support0~10V voltage input or 0~20mA current input |
Output terminal | One digital output terminals,One relay output terminal ;One analog output terminal , support 0~20mA current output or 0~10V voltage output |
Key Lock and function selection | Achieve some or all of the keys locked, delimit fuctions some or all of keys to prevent erroneous operation |
Protection function | Input/output phase failure protection ,Over- current protection ;Over- voltage protection;Under- voltage protection; Over- heat protection ; Over-load protection |
