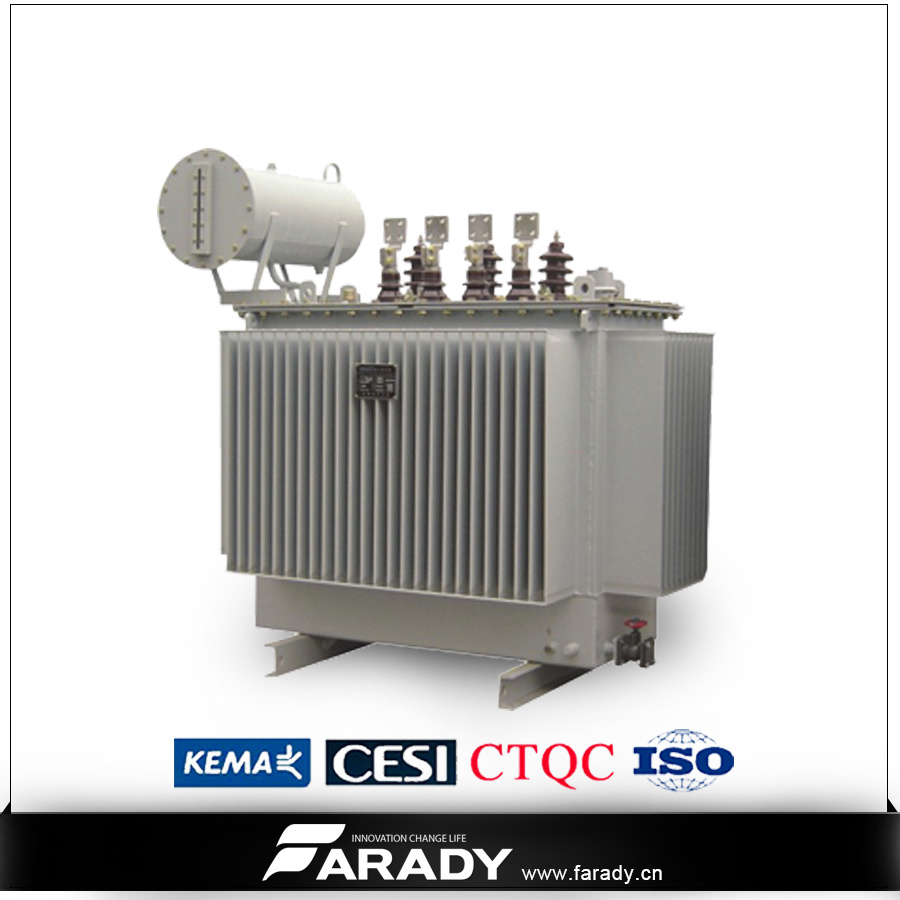

11kv 100kVA high voltage power Three Phase Transformer
++++Standard Features
1,Product Range:15kVA-10000kVA, up to 44kV
2, System voltage: max. 36 kVA 200 BIL
3,Coolers: corrugated wall or radiator
4,Oil preservation: hermetically sealed or conservator/free breathing
5, Tap changer: off-circuit or on-load
6, Cooling medium: mineral oil, Midel
7, Steel type core clamping system
8, High voltage (HV) multilayer winding
9, Low voltage (LV) foil winding or layer winding
10, Winding materials aluminium or copper
11,High temperature class transformers
12,Low noise solution
13,Efficient transformers with reduced losses
14, Liquid-filled
15,Used in special conditions
16,Sophisticated facilities
17, Usage of wooden case
18, 3D package for drawings
19, Special test like Zero Sequence Impendence test
20, Cooling: ONAN, ONAN/ONAF, KFAF, KFW
++++Service condition
a) Suitable for indoor or outdoor application
b)Air temperature: Maximum temperature: +40ºC; Minimum temperature:-30ºC
c) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
d) Altitude above sea level: Maximum installation altitude: 2000m.
e)Max wind speed:35M/s
f) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
g) No frequent violent shake
Note: * Beyond those services condition should enquiry to manufacturer technical dept during order
++++ Tests
1, Voltage ratio. Polarity and phase relationship test on each tapping
2, Resistance of all windings
3, No-load current and no-load losses measurement
4, Load losses measurement at rated current and frequency
5, Impedance voltage measurement
6, Induced over-voltage and separate source voltage withstand tests
7, Impulse voltage withstand test.
8, Noise level test
9, Oil leakage test
10, Overload test at 150% rated current for one hour after temperature rise test and hot resistance measurement of (HV - LV)
| Rated Power | Load losses | No-load losses | No load current% | Impedance% |
| S11-30 | 630 | 100 | 2.1 | 4 |
| S11-50 | 910 | 130 | 2 | 4 |
| S11-63 | 1090 | 150 | 1.9 | 4 |
| S11-80 | 1310 | 180 | 1.8 | 4 |
| S11-100 | 1580 | 200 | 1.6 | 4 |
| S11-125 | 1890 | 240 | 1.5 | 4 |
| S11-160 | 2310 | 270 | 1.4 | 4 |
| S11-200 | 2730 | 330 | 1.3 | 4 |
| S11-250 | 3200 | 400 | 1.2 | 4 |
| S11-315 | 3830 | 480 | 1.1 | 4 |
| S11-400 | 4520 | 570 | 1 | 4 |
| S11-500 | 5410 | 680 | 1 | 4 |
| S11-630 | 6200 | 810 | 0.9 | 4.5 |
| S11-800 | 7500 | 980 | 0.8 | 4.5 |
| S11-1000 | 10300 | 1150 | 0.7 | 4.5 |
| S11-1250 | 12000 | 1360 | 0.6 | 4.5 |
| S11-1600 | 14500 | 1640 | 0.6 | 4.5 |
Company Information
We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer
ISO9001&14001 approval company
Each series transformer we manufacutured was type tested
Professional technical team ensure our product was always advanced amony your competitor
OUR PAKAGE:
Long time shipment & Seaworthy wooden box
Wooden package optional:
1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
OUR SERVICE:
1,Quick response in before sales period help you got order
2,Excellent service in production time let you know each step we made
3,Reliable quality solve you aftersale headache
4,Long period quality waranty ensure you can buy without hesitate
FAQ:
1,Why I buy Farady transformer
After compare quality,delivery and price you will find out answer
2,How is your farady electrical transformer waranty
12+12month after manufacture date,you total got 2 year waranty
3,Is that possible to be one of distributor of Farady Electric in my country
Yes,once you action is fast enough
4,More question......
Feel free to contact you you will get immediately reply
Certification
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid
With ISO9001/14001/18001, we are strike for create value for our partner and customer
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
WE COMMITTED TO PROVIDE A BETTER POWER
