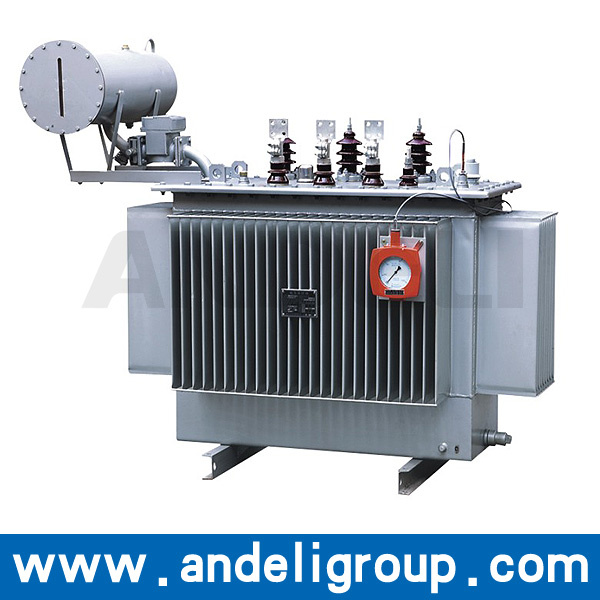

11kv Power Distribution Transformer (S9)

Name: 11kv Power Distribution Transformer (S9)
Brand: all-electronics-online.com
SKU: 663681705
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

This kind of product feature has high efficieney and low consumption. It can save a lot of power consumption and operating costs The new S9 Serier transformer is impoldered on the bas's of the 10KV Distribution transformer. It accords with the GB1094-96, GB/ T6451-99, IEC76 strandard.

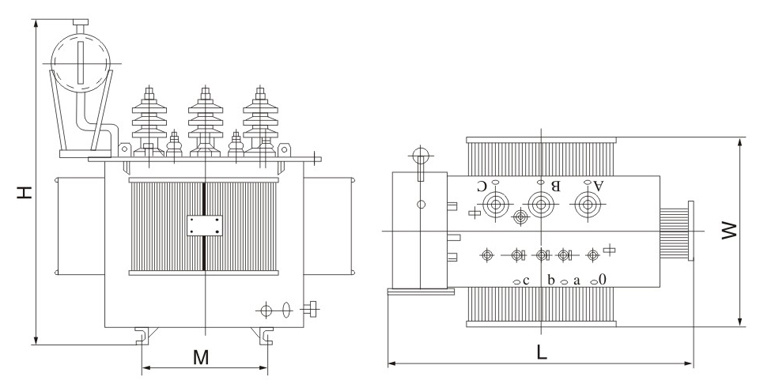

Dimension

About us

Rated capacity (KVA)	Voltage			connection group tab	Loss		unload current(%)	resistant voltage	weight			Measure(MM)			Distance of Din rail
Rated capacity (KVA)	high-voltage(kv)	extend connection	low-voltage(kv)	connection group tab	unload	load	unload current(%)	resistant voltage	empty weight	oil weight	total weight	length(L)	width(W)	height(H)	cross(M)× length
10	6 6.3 10 10.5 11	± 5% (± 2× 2.5%)	0.4	Yyn0 or Dyn11	65	330	3.5	4	90	35	150	760	400	950	350× 350
20					105	480	3.0		135	60	225	885	400	955	350× 350
30					130	600	21		180	70	285	985	380	1015	400× 400
50					170	870	20		230	75	350	985	510	1035	400× 450
63					200	1040	1.9		285	90	430	1060	465	1135	400× 450
80					250	1250	1.8		295	95	475	1010	775	1070	400× 450
100					290	1500	1.6		330	100	520	1010	740	1095	400× 450
125					340	1800	1.5		380	110	600	1040	770	1135	400× 550
160					400	2200	1.4		440	120	685	1235	735	1165	550× 550
200					480	2600	1.3		515	135	800	1280	765	1210	550× 550
250					560	3050	1.2		610	160	940	1345	800	1315	550× 550
315					670	3650	1.1		715	180	1105	1395	850	1375	660× 660
400					800	4300	1.0		880	205	1310	1435	820	1460	660× 660
500					960	5150	1.0		1005	230	1515	1525	965	1450	660× 660
630					1200	6200	0.9	4.5	1155	265	1770	1615	1080	1615	660× 660
800					1400	7500	0.8		1420	315	2160	1700	1120	1705	820× 820
1000					1700	10300	0.7		1580	425	2520	1750	1140	1880	820× 820
1250					1950	12000	0.6		1940	495	3040	1850	1245	1835	820× 820
1600					2400	14500	0.6		2355	560	3800	1865	1285	2020	820× 820
2000					2600	17000	0.5	5	3165	755	4950	2300	1165	2305	1070× 1070
2500					3000	20700	0.5	5	3880	1300	6580	2440	1315	2490	1070× 1070

Prod Model:	S9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	S9
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Application:	Instrument

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
