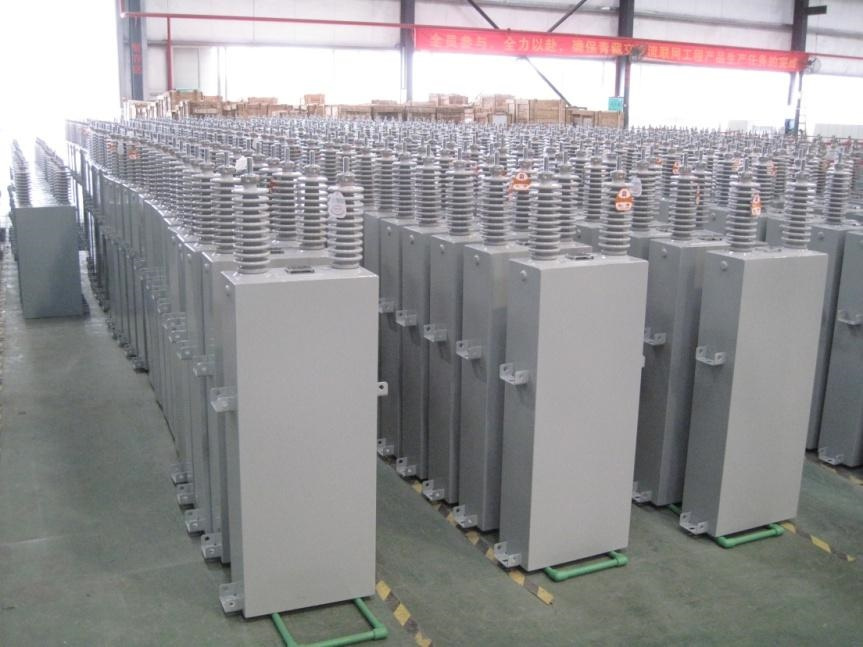

11kv Shunt Capacitor and Filter Capacitor
| Price: |
US $ 100/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
Shunt capacitor and filter capacitor
standard
IEC 60871
GB/T11024
DL/T840
ISO9001
Other standards available upon request
Features
1. Operating performance of concealed internal fuse has reached internationally advanced level.
2. The electrode plate adopts the design of protruding folded aluminum foil, so as to improve the electric field distribution.
3. Internal discharge resistor can eliminate internal DC voltage and suppress the arc produced by fuse action.
4. Integrated crimped bushing requires no welding, and can effectively prevent leakage in any part of the bushing.
5. Non-PCB insulating oil with anti-aging and refining technology makes the service life of capacitor effectively improved. The capacitor has reached international advanced level.
Performance parameters
. Loss angle tangent (Tan δ) of all-film capacitor is less than 0.0003 (including the loss of
internal fuse and discharge resistor).
2. High insulation margin. The capacitor can be running under 1.2 times rated voltage with
high reliability.
3. The capacitance deviation of a capacitor unit does not exceed -4%~+4% between the
measured value and its rated value.
4. Internal discharge resistors (if any) can reduce residual voltage from UN to below 50V
after 10min when power supply is cut off.
4. Internal fuse in the capacitor can act reliably when the components are broken down under the voltage ranging from 0.5UN~3.0UN. Please consult us in case of any special requirements.
| Prod Model: |
BAM |
| Type: |
Supercapacitor |
| Application: |
High Voltage |
Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
