12-24V Power Adapter Charger Plug Socket Kit for BMW Motorcycle

Prod Model:	YJ-DS19
Usage:	Digital Camera
Output Type:	AC
Connection:	Plug In
Brand:	Mai Yu

Product Description

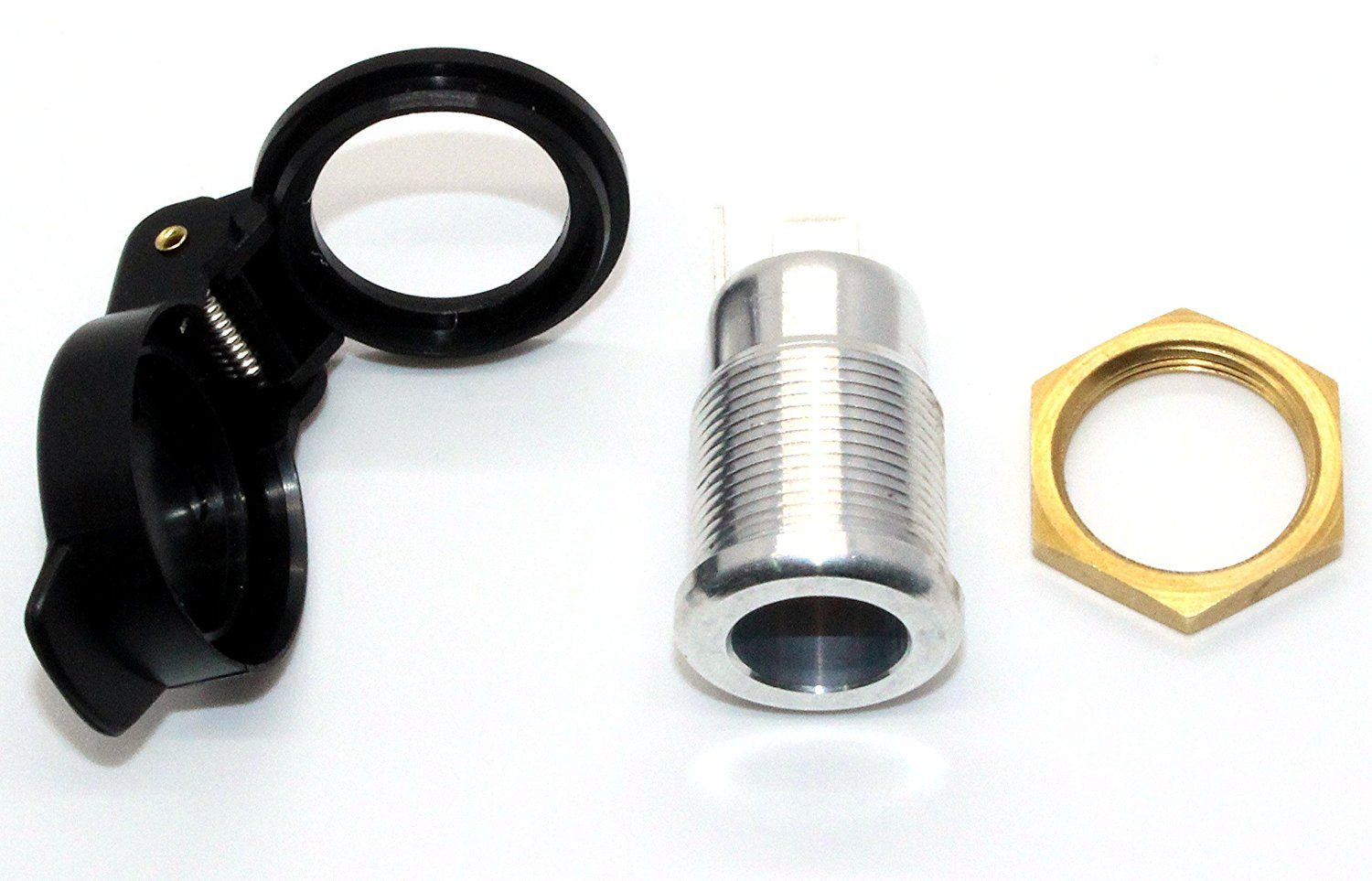

This Din Socket features Alloy Din Socket Body, Brass Ring, Spring and Water Resistant Weather Cap.

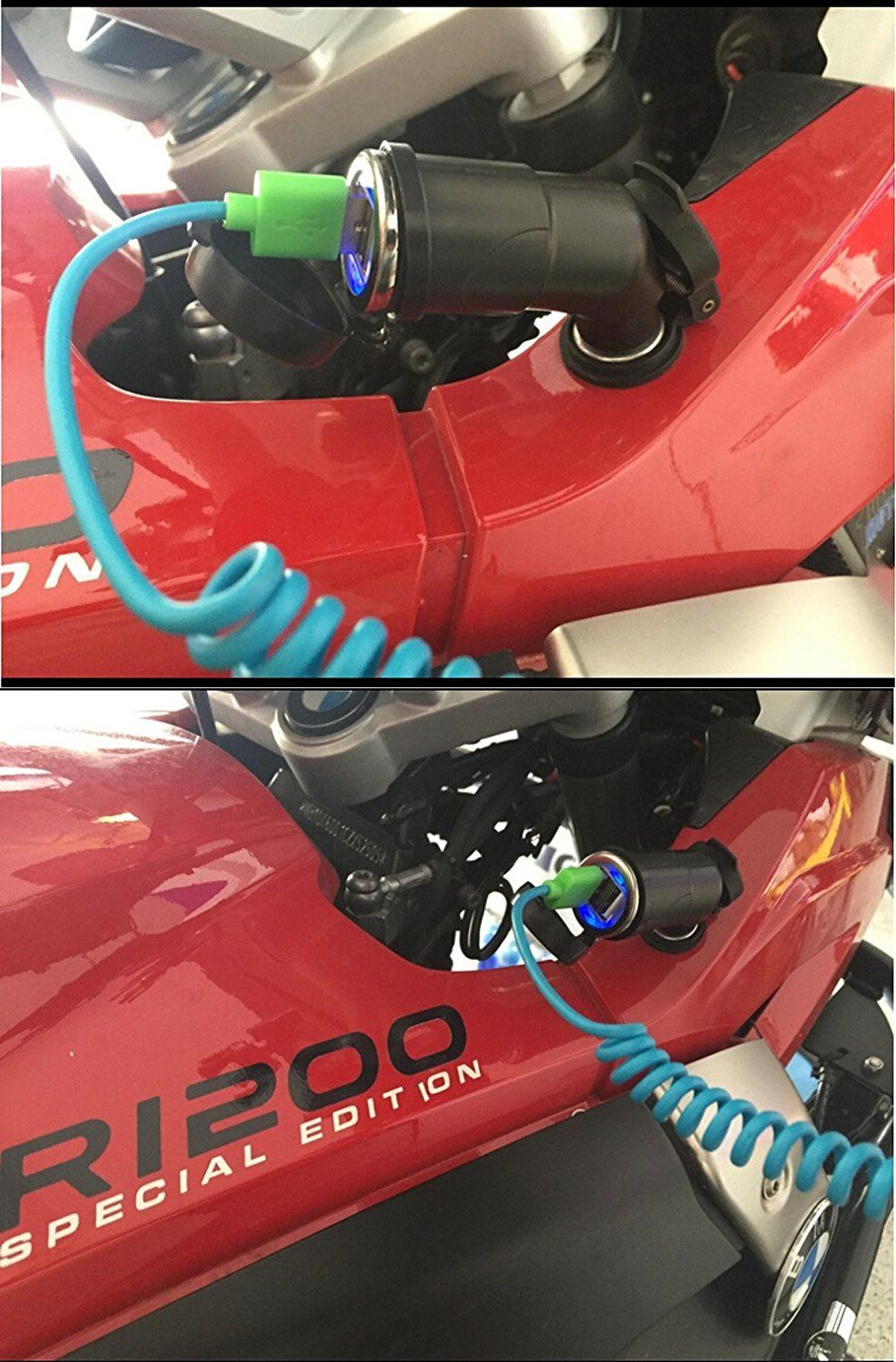

Able to install in BMW & Triumph Motorcycles , trucks and Caravans for external power supply

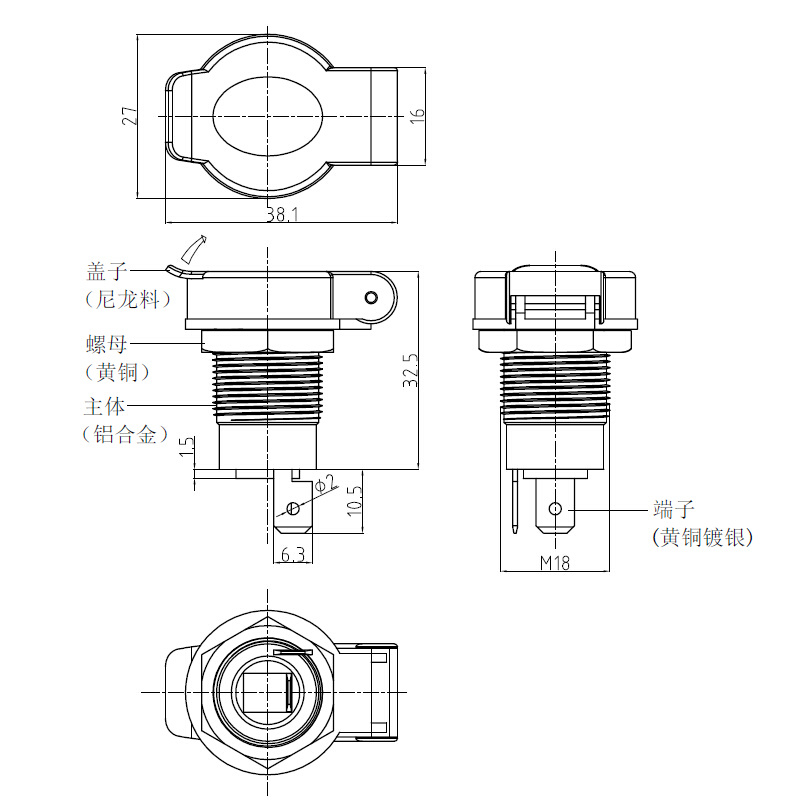

Specifications:
Connector type: Din Socket;
Connector: Plug;
Rated voltage: 6/12/24v DC;
Rated Current: 16 AMP;
Color:Power outlet socket
Contact material: Body(Alloy) and Rings(Brass);
Contact plating: Gold Plated
Product Dimensions: 1.4 x 1 x 1.8 inches
Material: ABS Plastic and Metal
Inner Diameter Approx 12mm
Inside Depth Approx 24mm
Item Weight: 0.6 ounces
Panel Mount: 18mm Hole
Fit for: 12-24V BMW motorcycle motor vehicles
High Quality

Product description

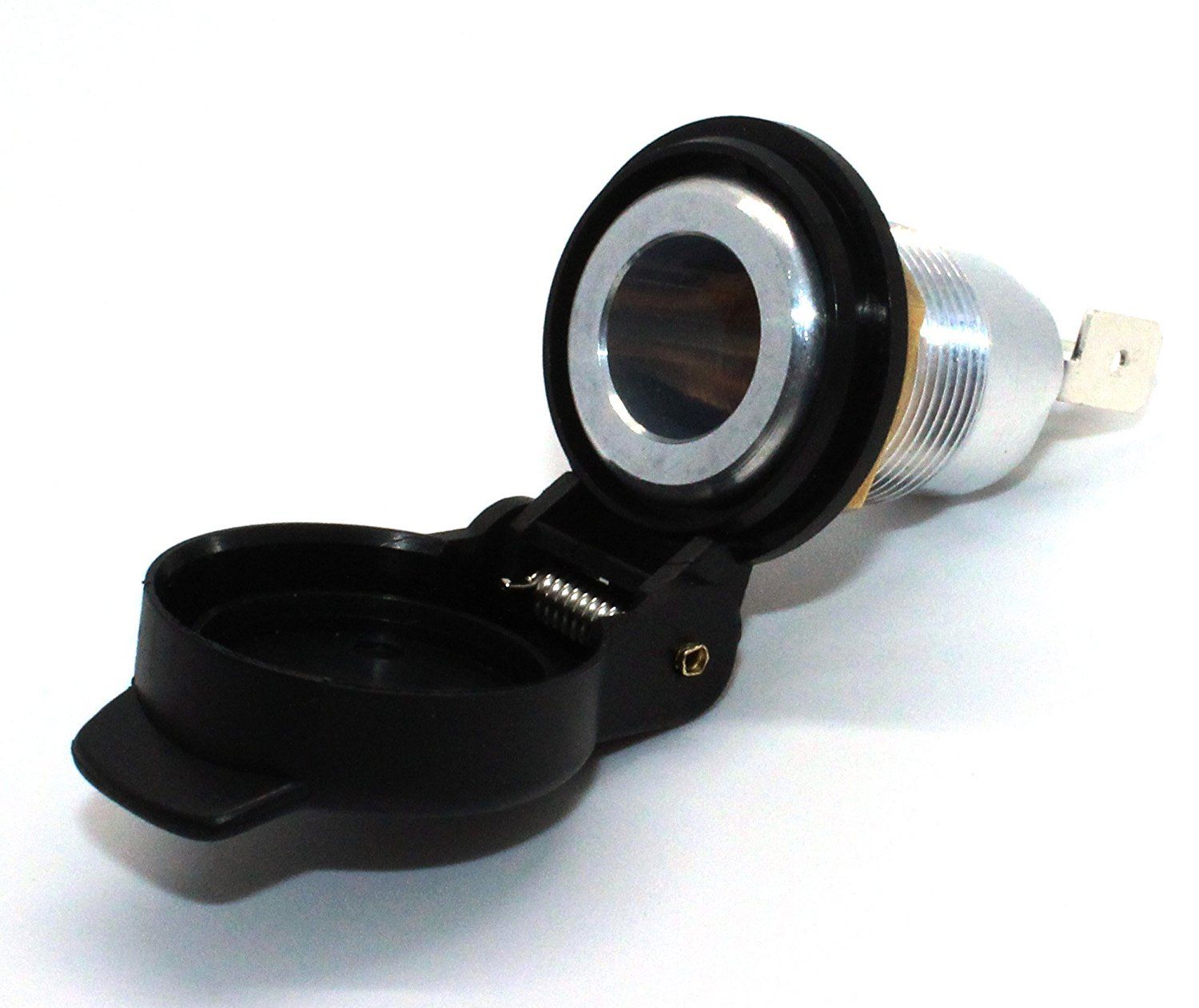

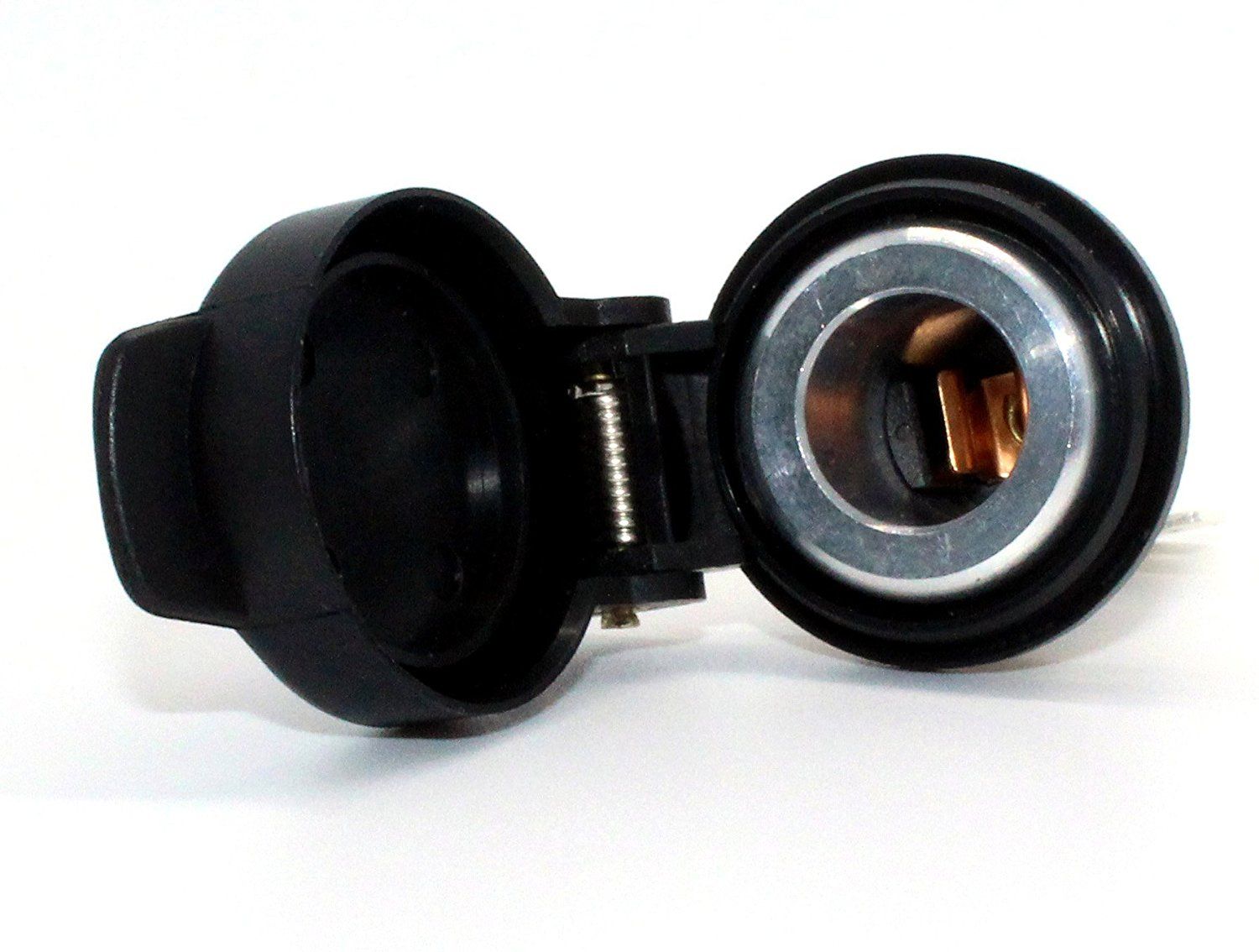

Our most popular socket with spring-loaded hinged lid.
Two 1/4" spade connectors, make wiring easy.
18mm brass jam nut.
Rated at 15 amps, snap-fit and vibration proof. Requires .
6875" (11/16") hole and 2.00" behind the panel.
Lid measures 1.075" in diam.
Able to install in BMW & Triumph motorcycles, trucks and caravans for external power supply...

This Din Socket features Alloy Din Socket Body, Brass Ring, Spring and Water Resistant Weather Cap.

Vehicle Service Type:street-touring-motorcycles, all-terrain-vehicles, street-cruiser-motorcycles, off-road-motorcycles, street-motor-scooters, snowmobiles, street-sport-motorcycles, utility-vehicles

Package Included:
1 X Power Adapter Charger Plug Socket








*************************************************
