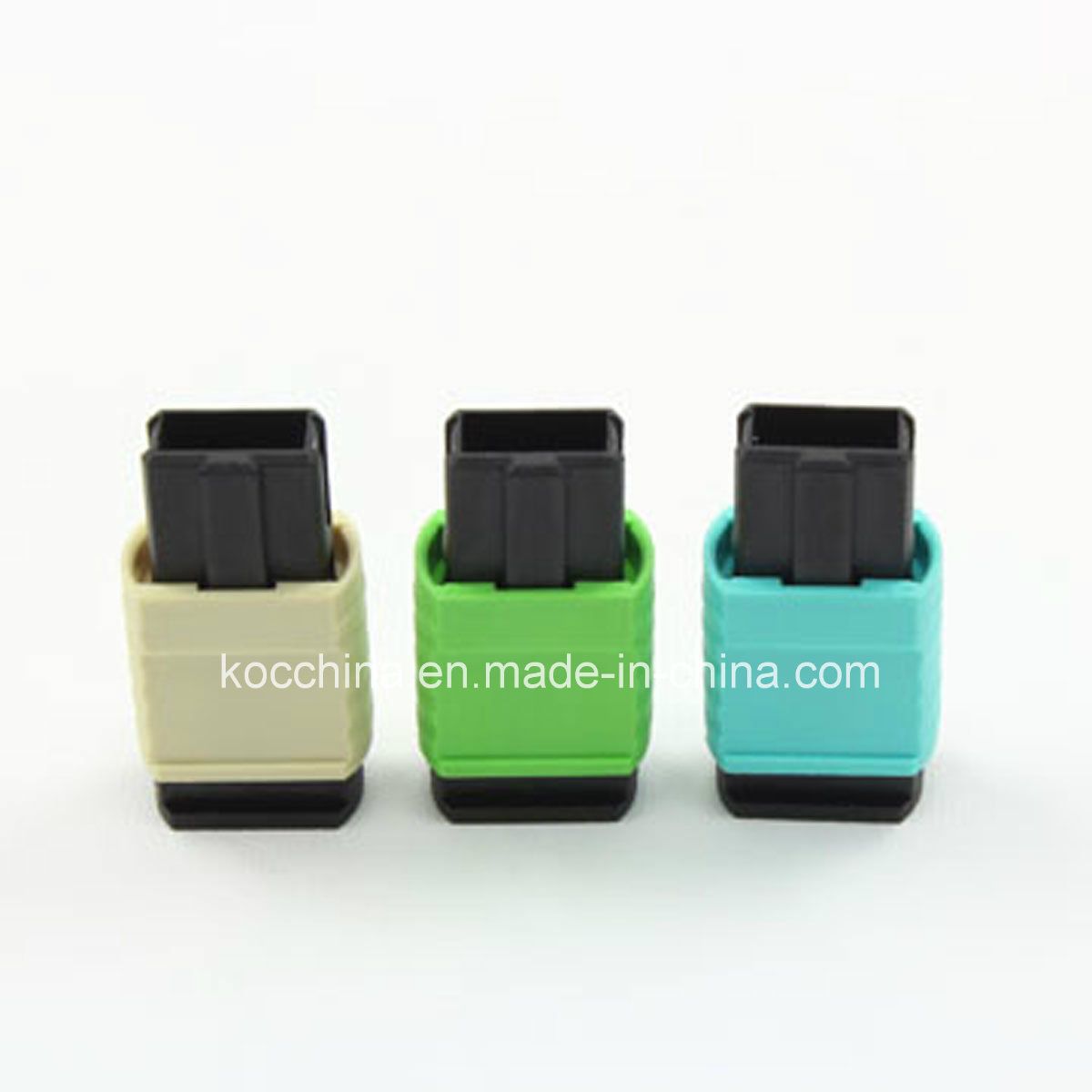

12 or 24 Cores MPO/MTP Fiber Optic Connector
Price: |
US $ 1.9-2/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
MPO/MTP |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connector Housing Color: |
Aqua, Green, Beige |
Connector: |
12cores 24cores |
Diameter: |
3.0 |
Cable Type: |
Mini Cable, Ribbon Cable |
Connector Boot Color: |
Black |
Transmission Medium: |
Singlemode, Multimode |
Structure: |
MPO |
Number Of Cores: |
12cores |
Ferrule Endface: |
PC APC |
Connector Type: |
MPO |
Brand: |
Koc |
Product Description
Product Description
BRIEF INTRODUCTION
The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series connectors have been widely applied to the CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, asynchronous Transmission Mode (ATM). The MT-RJ is duplex ferrule plug-jack (RJ-45) design and the MPO can be 24 fibers, the MPO patchcord cable can be ribbon fiber or breakout fiber, also, the MTP is available; the MT series patchcord have low insertion loss and high precision guide pins exact alignment.
SPECIFICATIONS
ITEM | PARAMETER |
Applicative connector type | MTRJ,MPO,MTP |
Fiber mode | Single mode(PC) | Multi-mode(PC) |
Operating wavelength | 1250~1650nm | 850nm, 1300nm |
Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Insertion Loss | MT-RJ: typical≤0.40dB,Max≤0.50dB MPO: typical≤0.50dB,Max≤0.70 dB | MT-RJ: typical≤0.25dB,Max≤0.30dB MPO: typical≤0.40dB,Max≤0.50dB |
Return Loss | APC≥50dB | / |
Applicative cable OD. | MTRJ: Duplex 2.0mm / Simplex 3.0mm; MPO: Ribbon fiber/breakout fiber |
Repeatability | ≤0.10dB |
Interchangeability | ≤0.20dB |
Durability | ≤0.20dB typical change,500 mating |
Tensile Strength | ≥120N(without 0.9mm patchcord) or customized |
Operating Temperature | -20ºC to +70ºC |
Storage Temperature | -40ºC to +85ºC |
ORDERING OPTIONS
Fiber Type | Cable Type | Connector | Boot Size | Boot Color | Polishing Type | Length |
SM: 9/125μm | Simplex(2-fiber) | Male | 2.0mm | Black | PC | Customized |
MM: 50/125μm | Duplex | Female | 3.0mm | | APC | |
MM: 62.5/125μm | Ribbon | | Ribbon | | | |
MM: OM3 | Breakout | | | | | |
