| Prod Model: |
SSR-DA48125W5 |
Product Description
.
Input and output electro-optic isolation or transformer isolation;
• Input constant current control and LED display, control signal and TTL & CMOS logic is compatible;
• Bidirectional controlled silicon or unidirectional controllable counter-parallel output, zero electric current opening zero electric current shutdown ;
• Power solid state uses the SCR chip counter-parallel output and working is stable;
• Buit-in resistance-capacitance absorbing circuit, dead zone voltage and small harmonic interference;
• Higher than of 2.5KV safe isolation voltage between the input output and ledger wall's;
• Small volume, small input power, non-contact, sparkles, noiseless, non-machinery wear, anti-vibration and the long life.
Main Application:
• Industrial automation installment
• Computer periphery connection
• Illumination, stage lighting control
• Electric stove, heating, warm control
• Street light, signal light, traffic light, etc
• AC motor control
• Intermediate relay, solenoid valve control
• Numerical control machinery, external guidance system
• Color photo enlargement, film processing equipment, Injection machinery
• Automatic fire control and security system

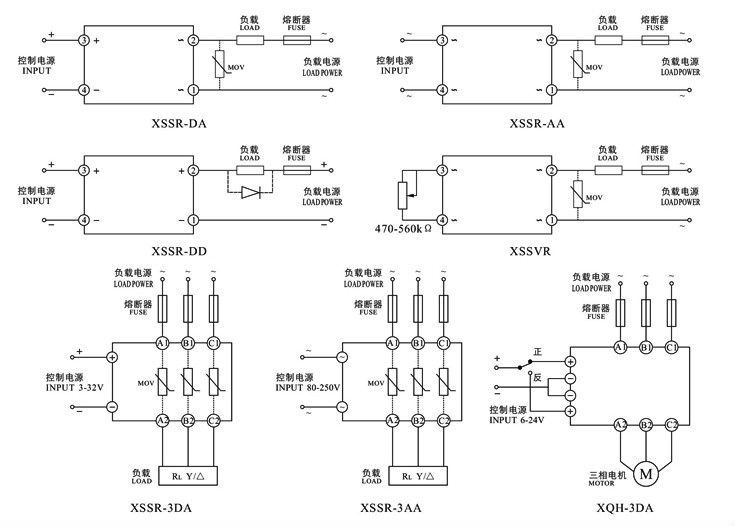

Interior Schematic diagram and basic property test:
Specification:
Control voltage | 3-32VDC |
Control current | 6-25mA |
Reverse voltage | 32VDC |
Guarantee close voltage | 1VDC |
Guarantee open voltage | 3VDC |
Load voltage | 75-480VAC |
Load max current | 10A-125A |
Load mini current | 0.08A |
Breakover voltage | ≤1.8VAC |
Output leakage current | ≤8mA |
Medium withstand voltage | ≥2500VAC |
Insulating resistance | ≥100MΩ |
Switching time | ≤10mS |
Frequency range | 50-60Hz |
Operating temperature | -20~+70ºC |
Load current safety factor | Resistive load 50-60% |
Inductive load 30-40% |
