125kHz RFID Microchip for Animal ID Tracking Management

                   125khz rfid microchip for animal ID tracking management

Rfid microchip  2.12x12mm and 1.4x8mm have been developed for subcutaneous injection, which is widely used for small animal identification. This glass tag can be used to identify any any pet like cat, dog, furret, horse, fish and exotic animal. All products conform to ISO standards and are available with parylene coating to prevent migration of the tag once implanted.

1.4x8mm now is the smallest sized pet microchip, widely used for tagging fish, mice, etc such very small animals; while 2x12mm is the common sized and popularly used on the market for dog, cat, horse, etc. At so far, we just developed a new product, 1.4x8mm in FDX-A format, as far as we know that, 1.4x8mm could only be FDX-B format because of the big rfid chip's size, and we now are the unique manufacturer who can supply FDX-A glass transponders at the smallest size 1.4x8mm!

For pet microchip used for animal identification(or tagging animals), there are 3 standard:
ISO11784/785 FDX-A, FDX-B and HDX.

Here are the size for different format:
FDX-A: 1.4x8, 1.5x8, 2x6, 2x8, 2x10, 2x12, 3x13, 3.85x23, 3.85x32, 4x34mm
FDX-B: 1.4x8, 1.5x8, 2x6, 2x8, 2x10, 2x12, 3x13, 3.85x23, 3.85x32, 4x34mm
HDX:  2x12, 3x13, 3.85x23, 3.85x32, 4x34mm

RFID pet microchiptag is an easy solution for animal identification and tracking. Made of high quality Biocompatible glass, compaly with ISO11784/785 FDX A/B, HDX; our rfid glass tags are safety and could work with excellent performance, 5-8cm with our readers, or even longer upon readers' antenna and power.

Specifications of LF RFID glass microchip tag for pet management:

PRODUCT CODE	125khz rfid microchip for animal ID tracking management
Frequency	125KHz/134.2 ± 2 KHz
Standard and Protocol	ISO 11784/11785
Transmission Principle	Full Duplex (FDX-A/B), Half Duplex(HDX), EM ID
IC Type	T5577, EM4305, HITAG S256, CET5999, EM4200
Data Memory	330bits,512bits,256byte,1024bits, 64bits
Dimension	1.4x8, 1.5x8, 2x6, 2.12x8, 2.12x10, 2.12x12, 3.85x32, 4x34mm
Reading Range	6-10cm by our handheld animal reader H20-F-G1; 30-50cm upon our long range reader PI-80
Operating Temperature	-25oC to 85oC
Storage Temperature	-40oC to 90oC
Weight	95 ± 20 mg for 2x12mm; 34mg for 1.4x8mm
Write Endurance	> 1,000,000 cycles
Memory Retention	> 20 years
Case Material	Cylindrical Bio-glass Schott 8625
EMC	Not affected by Normal Electromagnetic Interference or X-Rays
Signal Penetration	No known Blockage by non-magnetic material
Power Source	No Battery Required

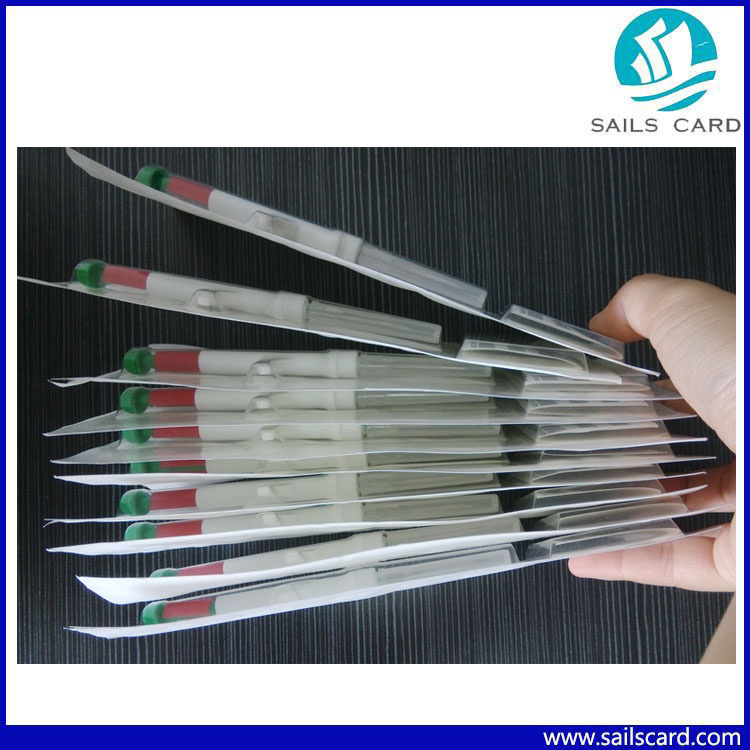

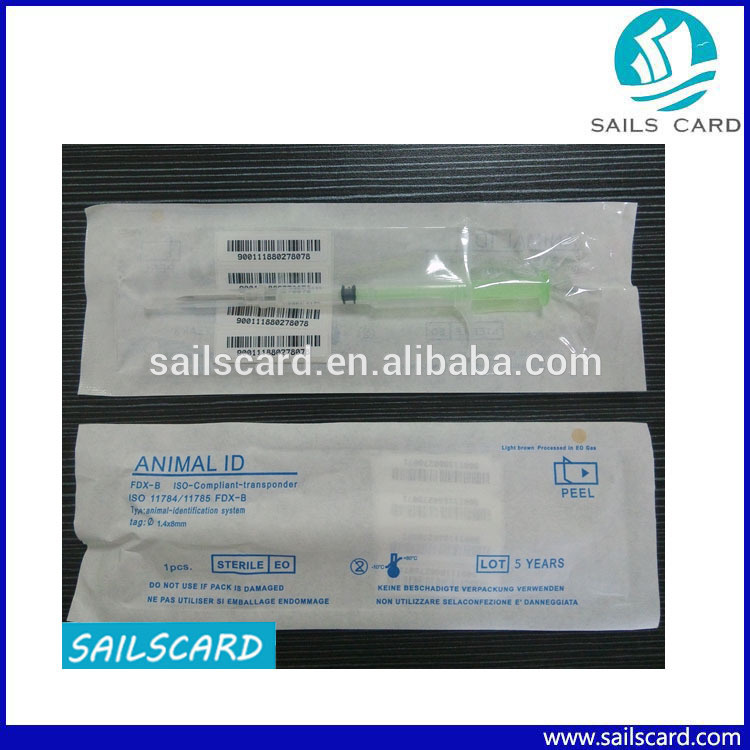

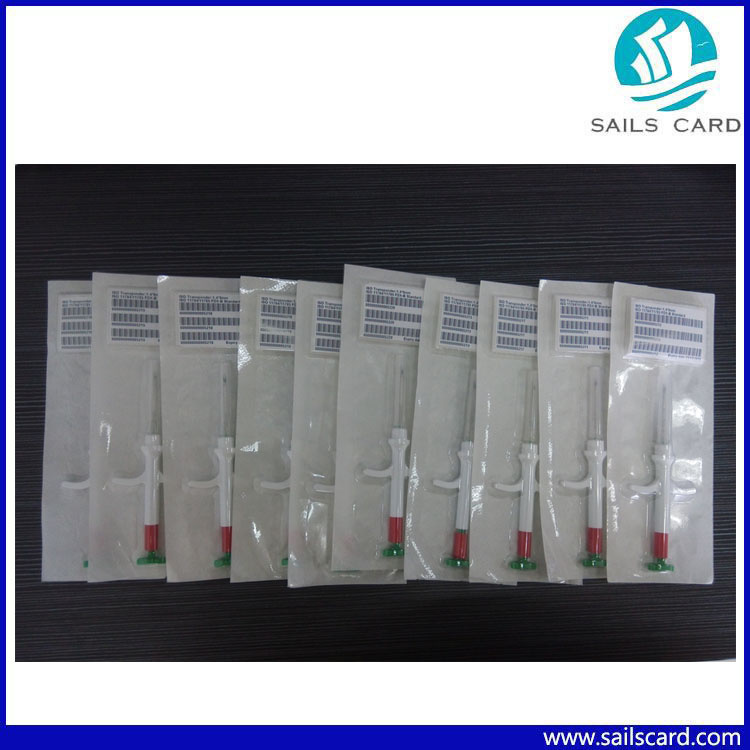

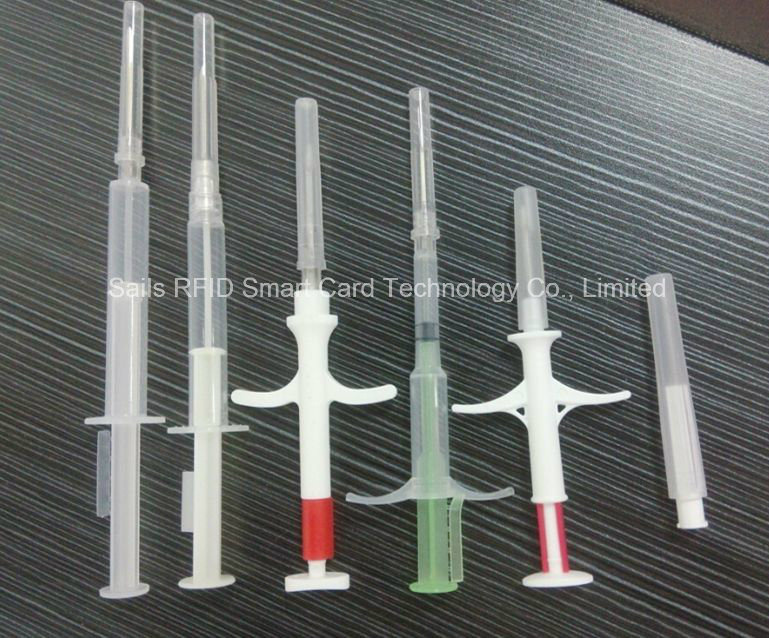

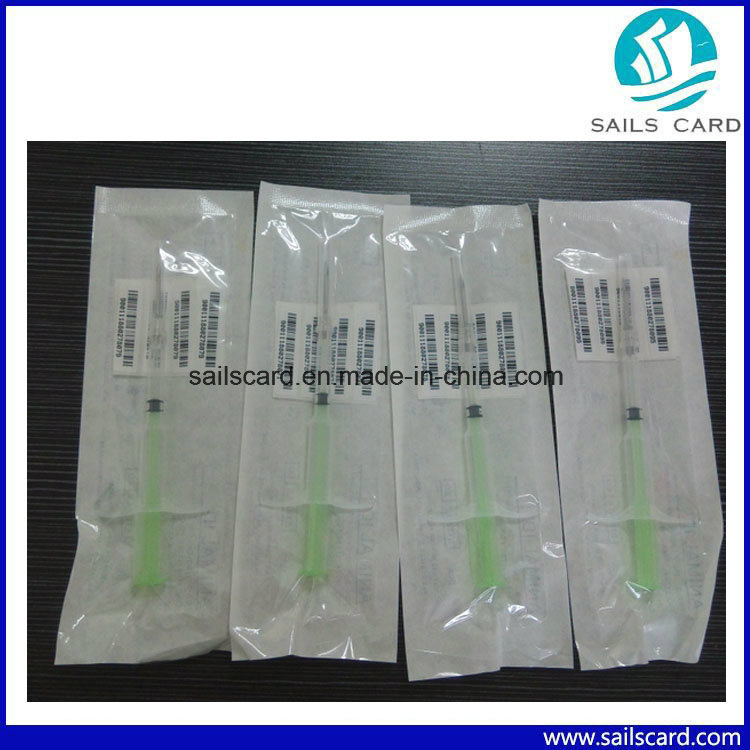

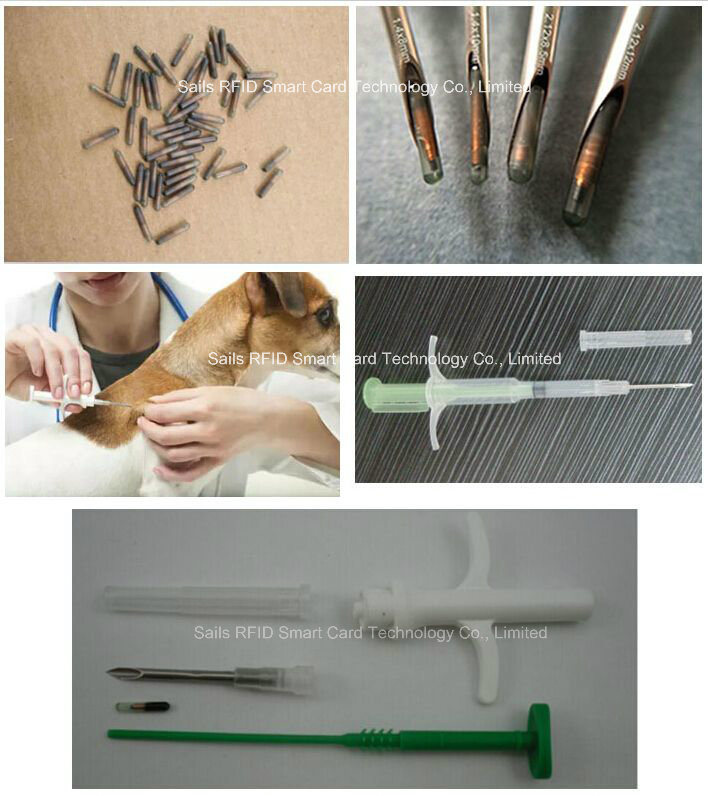

Product display







What is RFID Microchip?
RFID Microchip also known as a glass transponder, is about a size of a grain of rice. The transponder which is coded with a permanent code, is implanted under the animal's skin for identification purpose. Using Radio Frequency, the animal can be identified by using a RFID scanner.

What are the benefits?
1. Unique identity for every livestock and pet.
2. Import and export control.
3. Lost pet can be easily traced back to it's owner.
4. Veterinarians are able to keep the animal's heath record.
5. Easily implanted and no impact on the animal.
6. Suitable for use in extreme conditions.
7. Coupled with software, the RFID tag is a must inmanagement of animals, either livestock or household pet.

Why are our Microchips much cheaper?
1. Factory strategically located.
2. Direct from our factory.
3. Sophisticated cost savings production process.

How we deliver superior quality Microchips?
1. Equipment and Machines imported from Germany, Japan, USA etc.
2. Strict quality control.
3. Microchip tested and inspected individually.
4. Use only top quality material to manufacture microchips.
