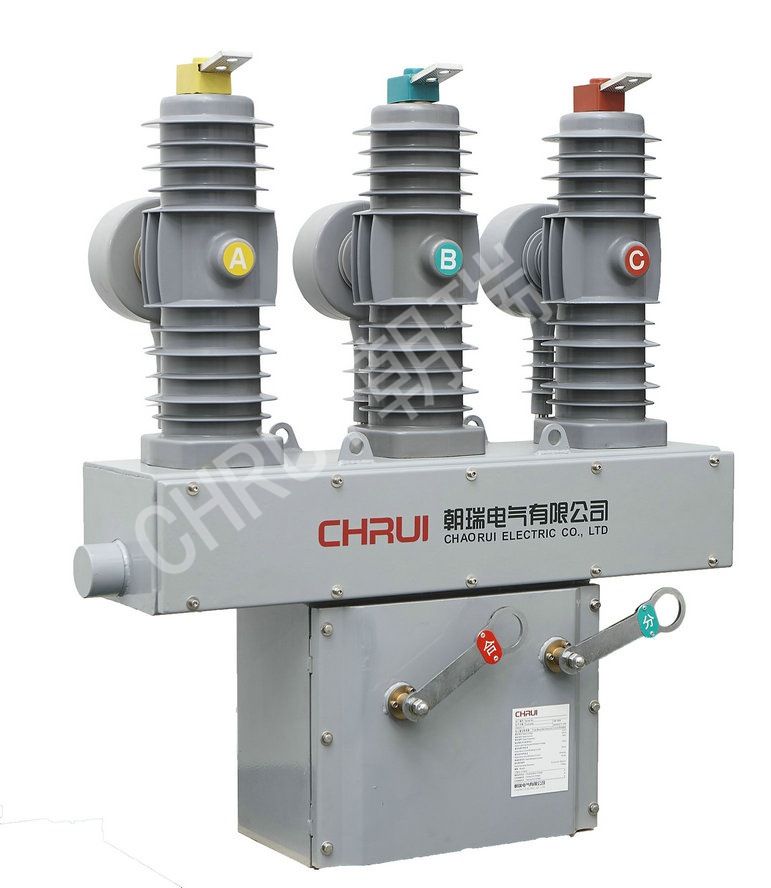

ZW43Y-12 Series Permanent-magnet Vacuum Circuit Breaker,Outdoor Type

General

Ratings: voltage 12kV, current up to 1250A, AC50/60Hz
Application: for the control and protection of substation and equipment. Making and breaking load current, overload current and short-circuit current under various operating status of electric network.
Standard: IEC62271-100, IEC62271-111.

Working Condition

Ambient air temperature: -40~+40ºC
Altitude: ≤2000m
Service condition with dust, corrosive / flammable gas, vapor or salty fog pollution are acceptable.
Wind speed: ≤34m/s (Equal to 700Pa over cylindrical surface)
The external shocking and earthquake could be neglected.
Pollution level: ≤IV
Note: Customized products for other special working conditions are available on your requirements.

Ordering Information:

Please indicate the following items when order:
Type, name and quantity.
Rated voltage, rated current and rated short-circuit breaking current.
Rated operating voltage.
Name and quantity of spare parts.
Customized products are available per you requirements.

Prod Model:	ZW43Y-12
Rated Current A:	630/1250
Rated Short-Circuit Breaking Current Ka:	20/25
Mechanical Endurance:	M2 Class
Rated Voltage:	12kv
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Structure:	MCCB
Poles Number:	3
Certification:	ISO9001-2000
Installation:	Open-Type and Insulated Cylinder Type Vcb
