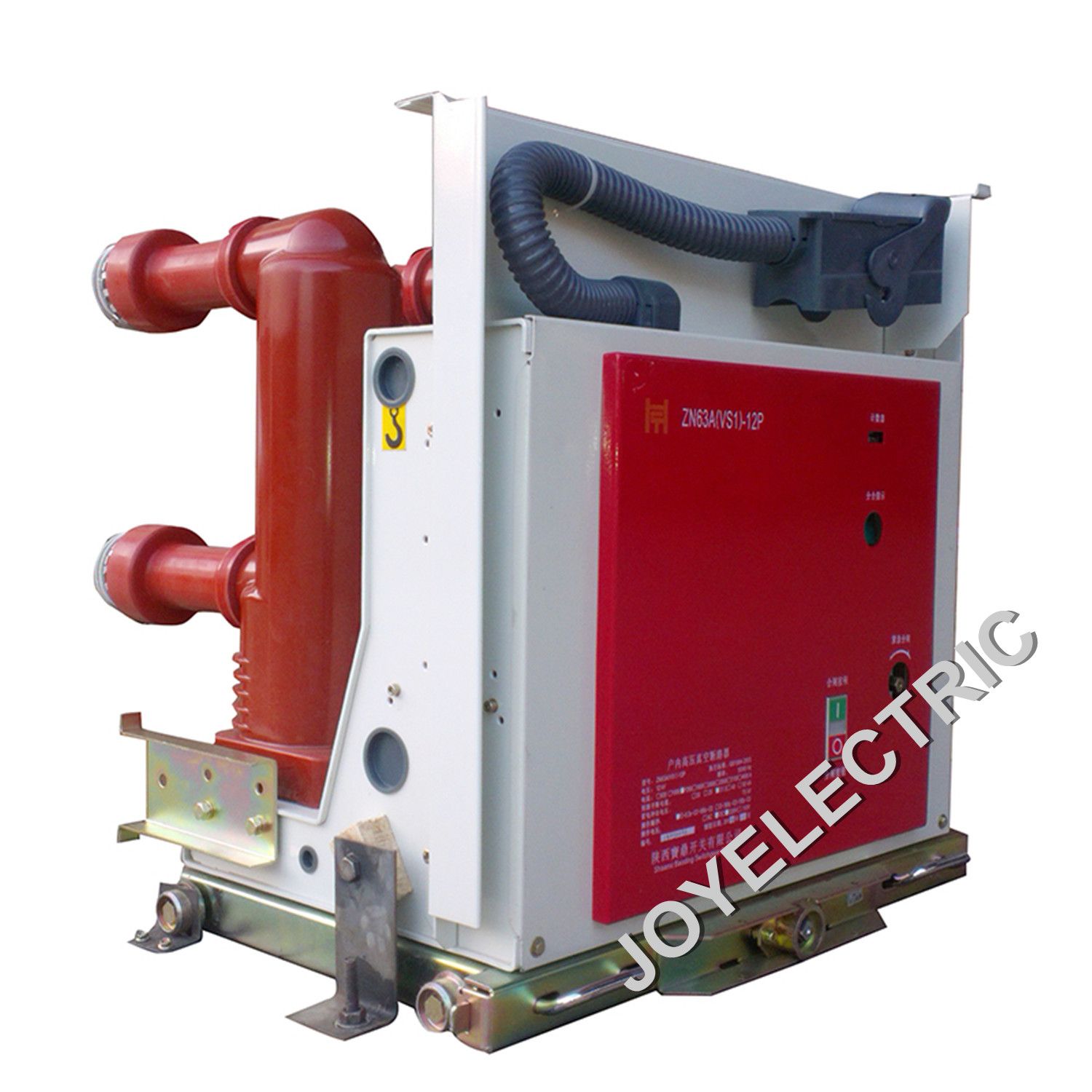

12kv Vacuum Circuit Breaker with Permanent Magnetic Mechanism

Name: 12kv Vacuum Circuit Breaker with Permanent Magnetic Mechanism
Brand: all-electronics-online.com
SKU: 836082395
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	US $ 1000-5000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Energy-storage Type
Arc-extinguishing Medium:	Vacuum
Certification:	ISO9001-2000

Product Description

Rated voltage: 12kV
Rated current: 630A~4000A
Rated short-circuit breaking current: 20~50KA
Mechanical life: 20000 times/10000 times (≥40kA)
Breaking times of full capacity: 30 times (≤31.5kA)/20 times (40kA)/12 times (50kA)
The height above sea level: ≤1000m
Use embedded pole and modular VSH type operating mechanism: decreasing transmission link and convenient maintenance
Can be matched with KYN28 type switchgear and other switchgear of fixed type
Can be exchanged with other types of VCB which have same specification
Passed type test in the most authoritative organization in China
Can be matched with switchgear of 1000mm, 800mm, 650mm width
Pole distance: 275mm, 210mm, 150mm
Can be used at high altitude
The mechanical life can reach to 30000~60000 times

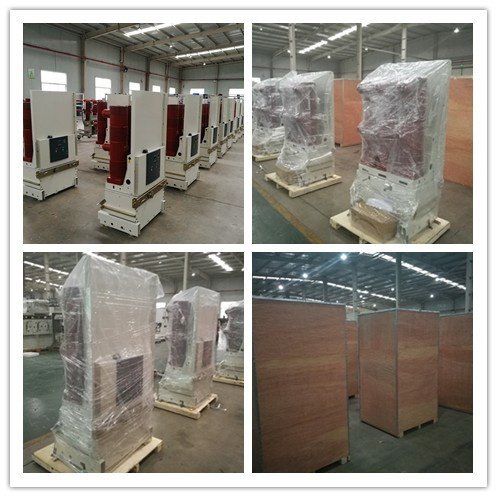

Our packing

Shaanxi Joyelectric International Co., Ltd. is a specialized company which is dealing with international business mainly covering electric and energy system, supplying products, design & service as well as production/test equipment in the field of power transmission and distribution.

With more than 20 years experiences in this fields, our main products include 12kV-24kV-36kV/40.5kV vacuum circuit breaker, switchgear & SF6 RMU as well as relative main components and accessories. With business development and meet requirement from customers, we also agent and distribute relative production/test equipment.

We had established close long-term cooperation with 10 more overseas customers from Europe, South American, Middle East and Asia due to our professional quality, excellent service and competitive prices.

We are not only your supplier, but also your purchasing consult as well as solution provider.
