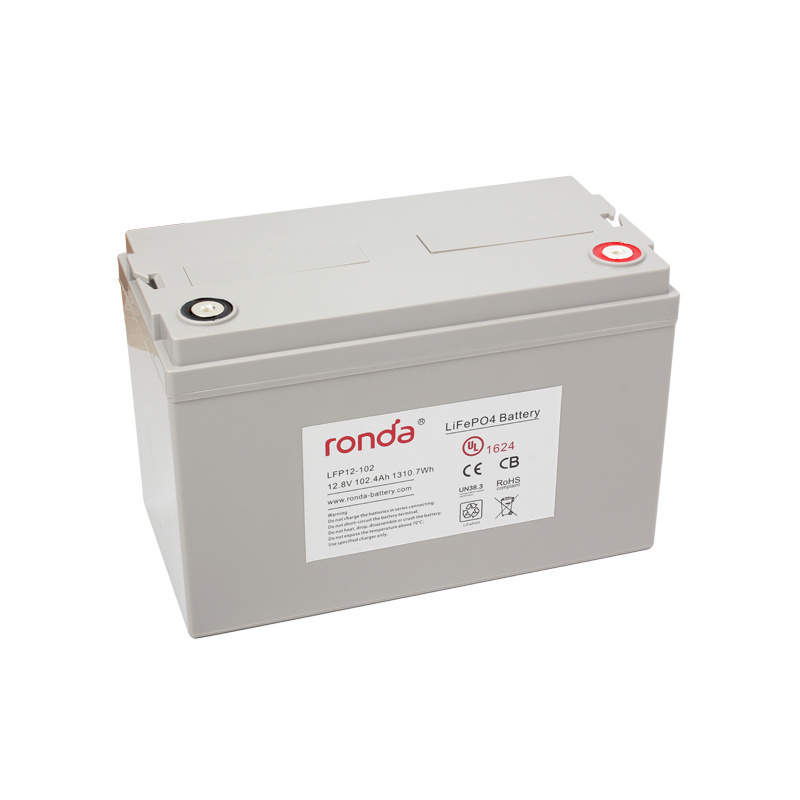

12V 100ah UPS System LiFePO4 Battery for Solar Power System (CB, UN38.3, ISO14001)

Name: 12V 100ah UPS System LiFePO4 Battery for Solar Power System (CB, UN38.3, ISO14001)
Brand: all-electronics-online.com
SKU: 727666852
Availability: InStock
Rating: 5 (76 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LFP12-100
Case:	ABS ( Can Be Epoxy Board / Iron Case Ect.)
Max. Charge Current:	100A
Max. Discharge Current:	100A
Cycle Life:	2000 Cycles(at 80%Dod, 0.2ita Charge/Discharge )
Weight:	15kg
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	102ah
Standard Voltage:	12.8V
Usage:	Energy Storage Product
Electrolyte:	LiFePO4

Product Description

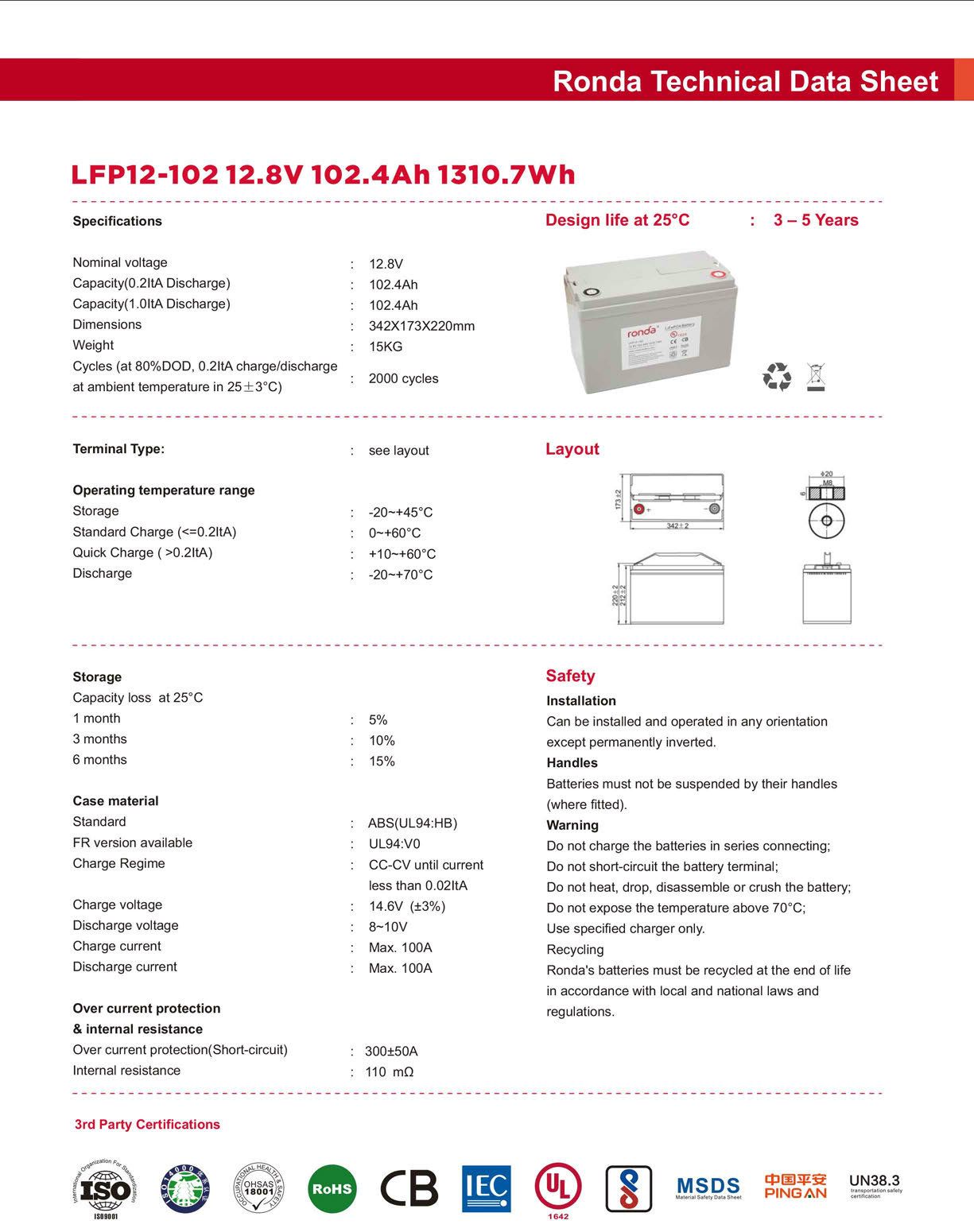

Ronda Technical Data Sheet
LFP12-100 12.8V 102.4Ah 1310.7Wh
Specifications
Nominal voltage	12.8V
Capacity(0.2ItA Discharge)	102.4Ah
Capacity(1.0ItA Discharge)	102.4Ah
Dimensions	342x173x220mm
Weight	15KG
Cycles (at 80%DOD, 0.2ItA charge/discharge at ambient temperature in 25±3ºC.)	2000cycles
Terminal Type	seelayout

Operating temperature range
Storage	-20~+45ºC
Standard Charge (<=0.2ItA)	0~+60ºC
Quick Charge ( >0.2ItA)	+10~+60ºC
Discharge	-20~+70ºC
Storage
Capacity loss at 25 ºC
1 month	5%
3 months	10%
6 months	15%
Case material
Standard	ABS(UL94HB)
FR version available	UL94V0
Charge Regime	CC-CV until current less than0.02ItA
Charge voltage	14.6V(±3%)
Discharge voltage	8~10V
Charge current	Max.100A
Discharge current	Max.100A
Over current protection & internal resistance
Over current protection(Short-circuit)	300±30A
Internal resistance	110mΩ
Design life at 25ºC	3-5Years

Applications: (Lead-acid battery replacement)	Solar light /Solar power system/ UPS system/ Emergency light/ Wind energy storage/Medical device/moveable solar system/traffic signal

Safety
Installation
Can be installed and operated in any orientation except permanently inverted.

Handles
Batteries must not be suspended by their handles (where fitted).
Warning
Do not charge the batteries in series connecting;
Do not short-circuit the battery terminal;
Do not heat, drop, disassemble or crush the battery;
Do not expose the temperature above 70ºC;
Use specified charger only.
Recycling
Ronda's batteries must be recycled at the end of life in accordance with local and national laws and regulations.

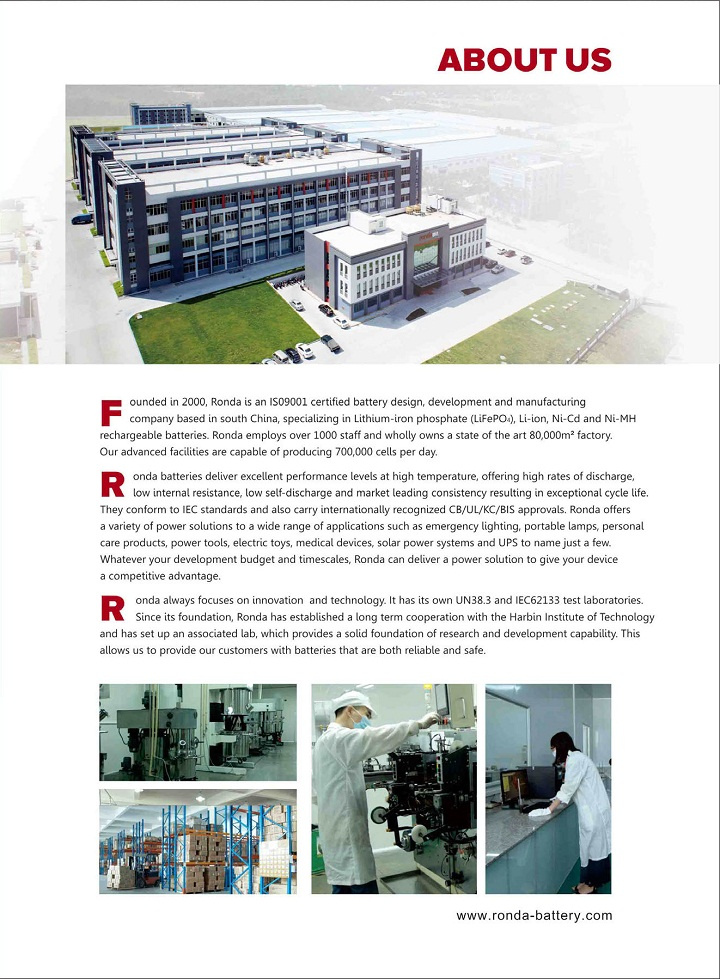

Founded in 2000, Ronda is an ISO9001 certified battery design, development and manufacturing company in south China, specializing in Lithium-ion phosphate (LiFePO4), Li-ion, Ni-CD and Ni-MH rechargeable batteries. Now, Ronda employs over 1000 workers. It owns 80, 000 factory and advanced facilities, which can produce 700, 000PCS cells per day.

Ronda batteries deliver high temperature, high rate discharge, low internal resistance, low self discharge, good consistency performance and provide long cycle life. They conform to the IEC standard and got CB/UL/KC/BIS approval. Ronda offers a variety of power solutions to a wide range of applications such as emergency lighting, portable lamps, personal care products, power tools, electric toys, medical devices, solar power systems and UPS etc. Whatever your development budget and timescales, Ronda can deliver a power solution to give your device a competitive advantage.

Ronda always focuses on innovation and technology. It has its own UN38.3 safety testing lab and IEC62133 testing lab. Since its foundation, Ronda has established long term cooperation with Harbin Institute of Technology and set up the associated Lab, which provide solid foundation on research and development to provide reliable and safe batteries to our customers.

Welcome to visit our website for more information.

http://www.ronda-battery.com/
