12V 120ah AGM Safety Battery for Solar Power System Home

Name: 12V 120ah AGM Safety Battery for Solar Power System Home
Brand: all-electronics-online.com
SKU: 835184055
Availability: InStock
Rating: 4.7 (141 reviews)

Price:	US $ 47-160/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

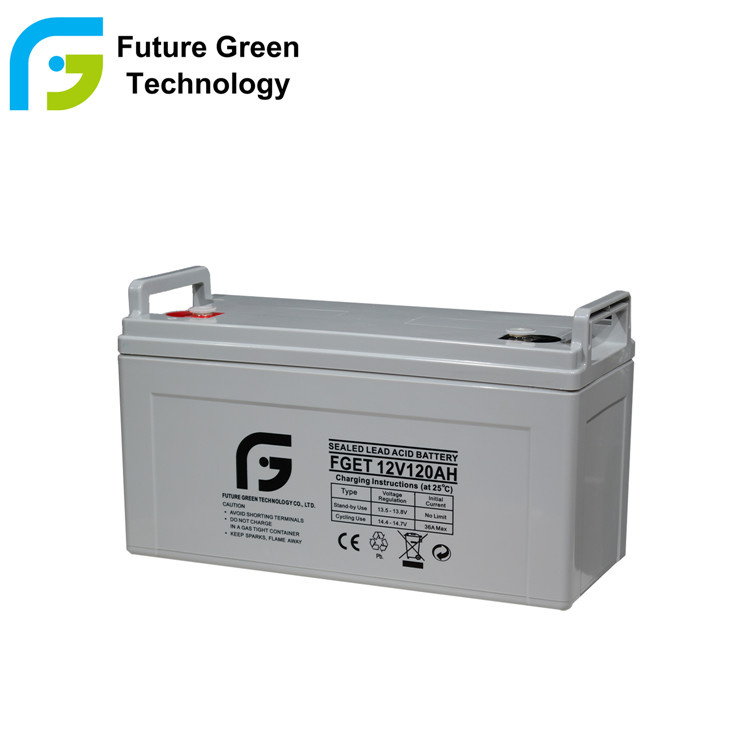

12V 120AH AGM Safety Battery for Solar Power System Home

Feature:
1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99% and freedom from
electrolyte maintenance or water adding.
5. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
6. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
7. Maintenance-Free Operation
8. Low Self-Discharge

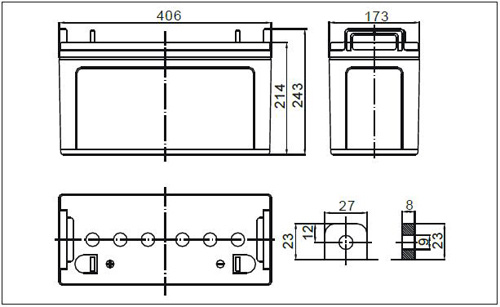

Battery Out Size:

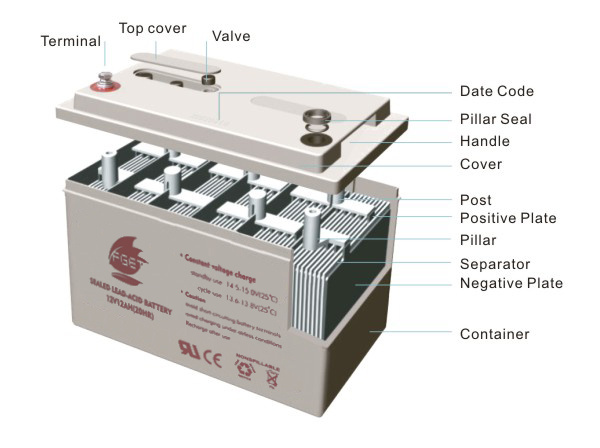

Battery Inside Structure:

Battery Parameters:

Nominal Voltage		12V
Capacity (10 hr 25 )		120Ah
Design Life		5 Years
Dimensions	Length	409 mm (16.1 inch)
	Width	176 mm (6.93 inch)
	Height	225 mm (8.86 inch)
	Total Height	225 mm (8.86 inch)
Approx.Weight		35 Kg
Capacity 25 (77 )	10 hr rate	120Ah
	3 hr rate	96Ah
	1 hr rate	78Ah
Internal Resistance (Full charged Battery at 25 (77 )		4 m

Capacity affected by Temperature (20hr)	40	102%
	25	100%
	0	85%
	-15	65%
Self-Discharge at	3 month	Remaining capacity: 91%
	6 month	Remaining capacity: 82%
	12 month	Remaining capacity: 65%
Normal operating temperature		25 3 (77 5 )
Operating temperature range		-15 ~50 (5~122 )
Float charging )		13.6 to13.8V
Cyclic charging )		14.5 to 14.9V
Maximum chaging current		32A
Terminal material		Pb
Maximum Dischage current		800A(5sec)

Applications:

Solar and wind systems
Cable TV
Telecommunications
Wheelchair
Marine Equipment

Military Equipment
Emergency lighting
Power Plants
Medical Devices
Golf Cart

Battery Use and Maintenance:
1) Please use constant-voltage charge.

2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

Lead Acid Battery Series:

Model	Voltage	Capacity (20h)	Size (mm)	Plate Number	Weight (kg)
SJ6V4.5Ah	6V	4.5Ah	7047101*107	18	0.71
SJ6V7Ah	6V	7Ah	1513494*100	24	1
SJ6V10Ah	6V	10Ah	1515094*100	36	1.5
SJ12V1.3Ah	12V	1.3Ah	974351*57	30	0.56
SJ12V4Ah	12V	4Ah	9070101*107	36	1.4
SJ12V7Ah	12V	7Ah	1516594*100	48	2
SJ12V9Ah	12V	9Ah	1516594*100	54	2.6
SJ12V12Ah	12V	12Ah	1519895*101	78	3.5
SJ12V17Ah	12V	17Ah	18177167*167	48	4.9
SJ12V24Ah	12V	24Ah	177165126*126	66	7.3
SJ12V30Ah	12V	30Ah	177165126*126	78	8.8
SM12V33Ah	12V	33Ah	196131155*180	42	9.2
SM12V36Ah	12V	36Ah	196131155*180	42	10.6
SM12V38Ah	12V	38Ah	196165175*182	36	11.4
SM12V42Ah	12V	42Ah	196165175	42	12.8
SM12V45Ah	12V	45Ah	196165175	42	13.2
SM12V55Ah	12V	55Ah	229138208*227	48	15
SM12V65Ah	12V	65Ah	350166175	66	19
SM12V70Ah	12V	70Ah	350166175	72	21
SM12V80Ah	12V	80Ah	350166175	78	22
SM12V100Ah	12V	100Ah	307168208*227	66	28
SM12V120Ah	12V	120Ah	406174208*233	90	33
SM12V120Ah	12V	120Ah	406174222*238	78	34
SM12V134Ah	12V	134Ah	340.5173280(285)	66	36
SM12V145Ah	12V	145Ah	340.5173280(285)	78	40
SM12V150Ah	12V	150Ah	483170241*241	114	43
SM12V180Ah	12V	180Ah	532207215*240	126	52
SM12V200Ah	12V	200Ah	522240219*244	138	59
SM12V210Ah	12V	210Ah	522240219*228	150	61
SM12V260Ah	12V	260Ah	522240219*228	162	69
Front Terminal Battery
SM12V55Ah-F	12V	55Ah-F	277106222.5*222.5	66	16
SM12V75Ah-F	12V	75Ah-F	562114188*188	78	18
SM12V100Ah-F	12V	100Ah-F	394109286*286	66	33
SM12V105Ah-F	12V	105Ah-F	507109223*238	66	35
SM12V150Ah-F	12V	150Ah-F	551109288*288	66	46
SM12V150Ah-F	12V	150Ah-F	551105288*288	66	45
SM12V180Ah-F	12V	180Ah-F	560125316*316	78	52

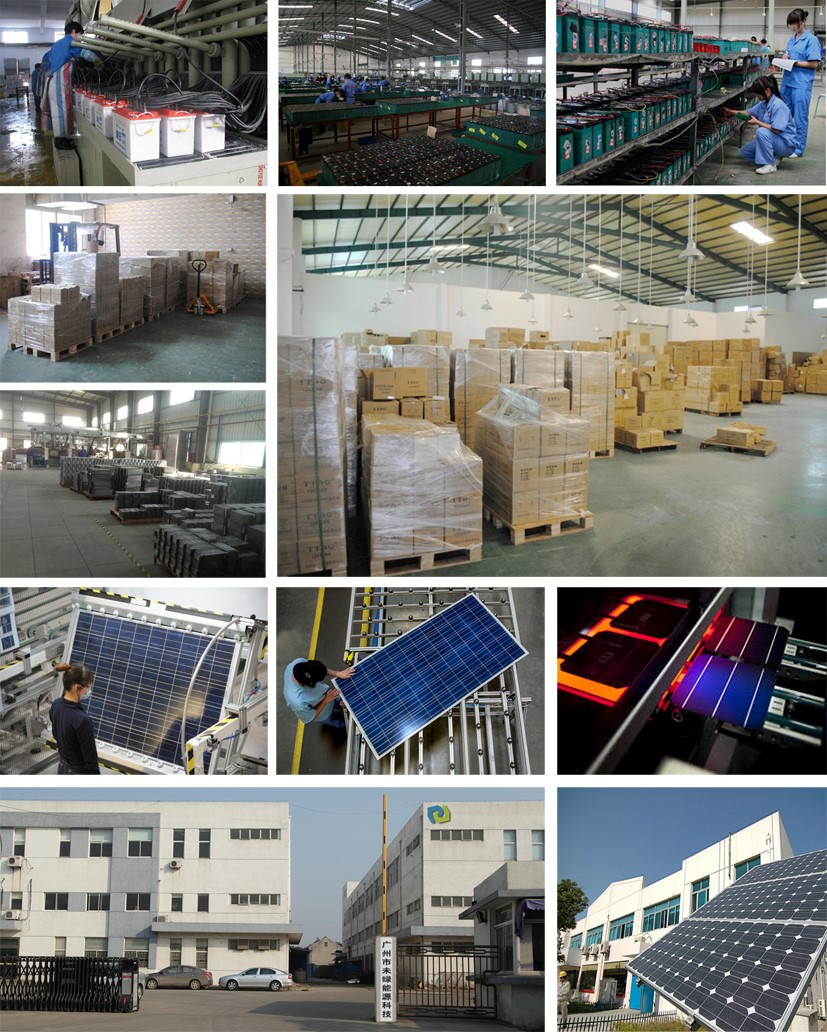

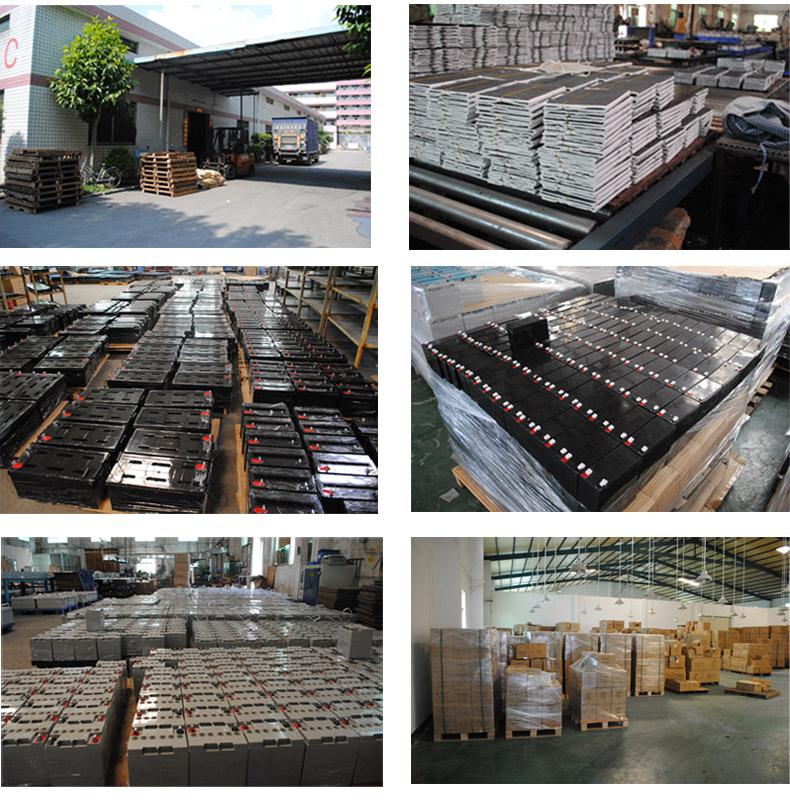

Factory Show:

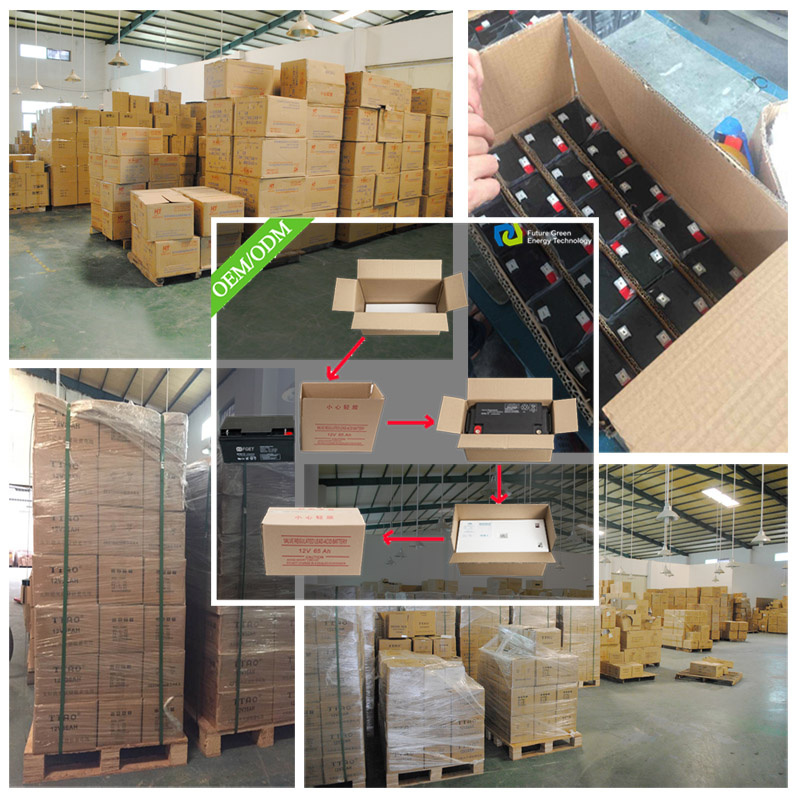

Packing Details:

Our Services:

Samples and OEM, Warranty and After-Sale Service:

Sample can be provided for quality testing
OEM Welcomed
Warranty:2 Year
After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

Our Qualification:

Payment Terms:

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	Paypal
Delivery time	15 working days after receiving payment for one container

FAQ:
Q1: How to choose a right battery?
A1:Tell us your demand, then our sales will recommend a suitable battery to you.
Q2: How about the delivery time?
A2: 7 days for sample; 15 days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 2 years warranty on FGET-Solar product.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How To Ask for Support if products failure in warranty?
A5: 1. Email us about PI number, serial number,Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order. 2. we will submit your case to our after sales department, and solve it in 24 hours .

Prod Model:	FG120A
Item Name:	12V120ah Lead Acid Battery
Maintenance Type:	Free
Size:	409176225*225mm
Weight:	35kg
Material:	Fire Proof Case
Warranty:	5 Year
Terminal Type:	Copper/Lead
Cell:	6
Certificate:	Ce
Plate:	Flat Plate
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Hello, friends. We are a company with two factory called Future Green Energy Technology based in Guangzhou China. FGET provides solar power system and kinds of batteries globally.

Future Green Energy Technology, is your personal home clean energy solutions provider. This company is a future-oriented Emerging company, is committed to provide clean energy for global world.

The first main product is automotive battery and sealed lead acid battery, which is mainly used for car, truck, taxi, bus, ship, solar, UPS, etc^

The Company has ventured into retail market segment and has nationwide presence through a network of branch offices and channel partners. The Company focuses on being a responsible corporate citizen through active participation in solar power projects and also working with electric vehicles manufacturers.

Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market. The Company is ISO certified.

Website: www.fget4u.com
