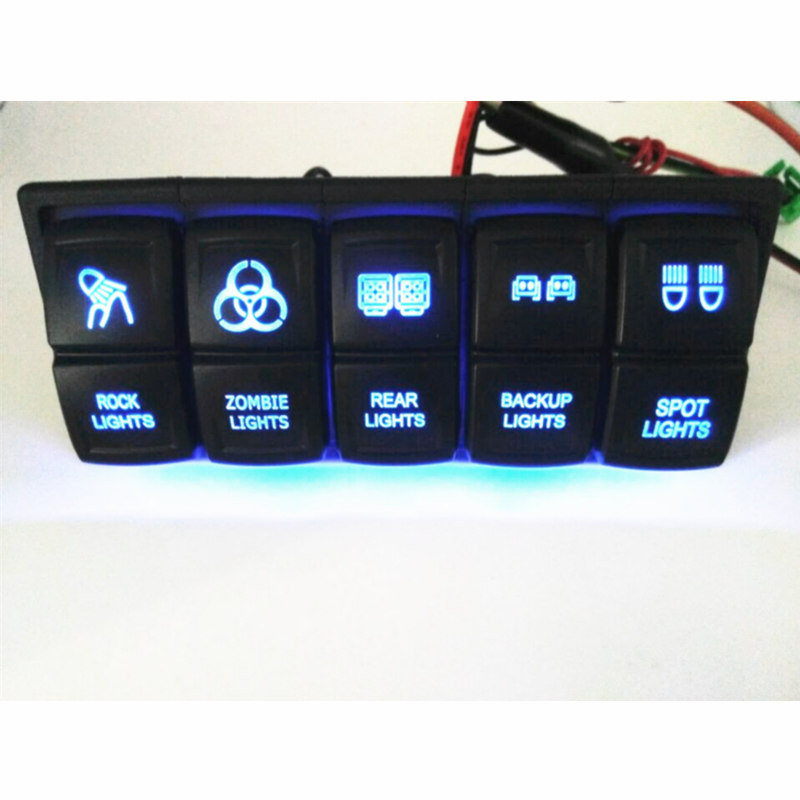

12V/24V 20A Waterproof Rocker Switches Laser Backlit Rocker Switch

Details and the Specifications:

-20 Amp 12 Volt ON-OFF Rocker Switch
-LASER ETCHED WITH TWO L.E.D. LIGHTS
-Single Pole Single Throw ON-OFF Switch.
-Black hard surface rocker. Surface size is 2" (50mm) x 1"(25mm).
-Standard size mounting hole 1.41"(36mm) x .86"(22mm).
-This is the standard size of most switch holes in modern vehicles.
-Upper light is ON when the switch is pressed UP.
-Lower LED is independent and can be wired to separate dash light circuit.
-Both LEDs have separate grounds. No rear barriers between terminals.
-Lower light Waterproof rating of IP66.
-All symbols are laser etched directly onto the switch face to ensure long image life.




1.Abs plastic panel
2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving
5. It has a face surface size of 0.90' x 1.92' and uses a standard din size mounting hole. Cutout Dimensions are 0.83' x 1.45'.

 These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2' (50mm) x 1' (25mm) and uses a standard din size mounting hole of 1.41' (36mm) x .86' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.



Single Pole Single Throw ON-OFF switch.
12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
Black hard surface rocker.
Two LEDs in the switch.
Upper LED is ON only when the switch is turned ON.
Lower LED is independent.
Both LEDs have separate grounds.
Same size as the Carling and ARB switches.
Rated 16A 12V.
No rear barriers between terminals.
