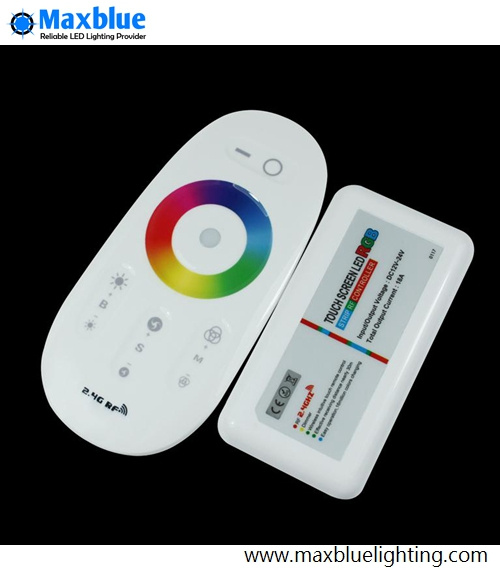

12V-24Vdc 2.4GHz Wireless Touching Screen RGBW Remote LED Controller
Product Description:
This RGB wifi controller is the best option to control the RGB strip/modules. Connecting with the four cables (R/G/B/+) extended from strip into the five ports of the controller, this controller will work perfectly semlessly with RGBW strips under the PWM-based control technology. Up to 640 thousands colors and 20 auto changing modes will help select your favourite colors and comfortable controling modes by the remotes. Moreover, you can control the RGB strips/modules evenly by your IOS/Android phones or tablet by the 2.4GHz working frequency.
|
Specifications:
1. 2.4G RF Remote Control
1). Size: 110*52*20mm
2). Power: AAA battery*2pcs
3). Material:ABS
4). Fabrication: Multicolor printing & UV varnish
2. LED RGB Controller
1). Size: 85*45*23mm
2). Working voltage: DC12-24V
3). Control Way: R G B three channels
4). Max load per channer:6A
5). Output connection: Common anode
6). Telecontrol distance: 30 meters
7). Programs: 20 kinds
|
Input Voltage: DC12V,DC24V(optional) |
Connection type: Common anode |
Radio frequency: 2.4G |
Receiver sensitivity: -105dbm |
Radio receive way: ASK |
Max STDBY current: 10mA |
Max load: 5A(each circuit) |
Control mode: PWM |
Control way:4 ways , respectively corresponding R,G,B,W four colors |
|
Static current: 30LED/M : 450mA 60LED/M: 900mA |
Working temperature: -20~80 degrees |
Material :Controller: aluminum remote: ABS+PC |
Life span: 50,000h |
Size:Remote:114×56×22mm Controller: 65×38×25mm |
Packing:7*7*12.5cm |
G.W.:0.15kgs/set |
Telecontrol distance: 20m |
FAQ:
Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: www.maxbluelighting.com
Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.
Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.
Q4: What is warranty time for your products? If any broken, what I will do?
5 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.
Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.
Q6: What kinds of payment methods do you accept?
T/T bank transfer, West Union and Paypal, L/C at sight
Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
Q8: How to contact us?
Send your inquiry in the below for Price list and more detailed information, hot-selling and discount Now!
Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor LED lighting and commercial LED decoration, devoting to delivering eco-friendly, affordable and stable LED products for the customers. Now we focus on LED flexible strip, LED linear light, LED COB downlight, LED panel light, LED track light, LED High Bay Light, LED wall washer etc.
With our ISO9001: 2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.
Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.
